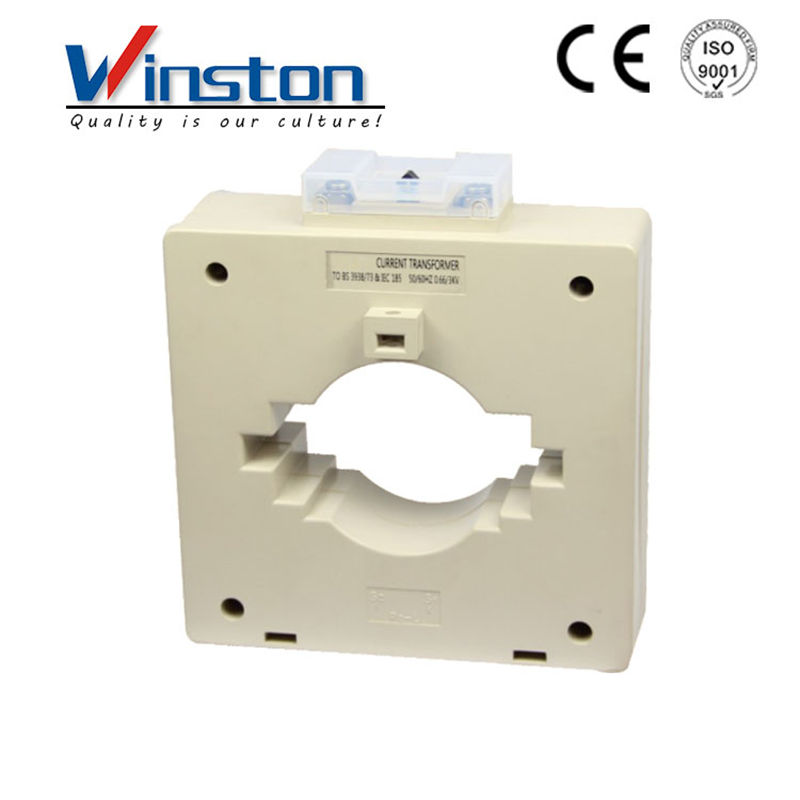

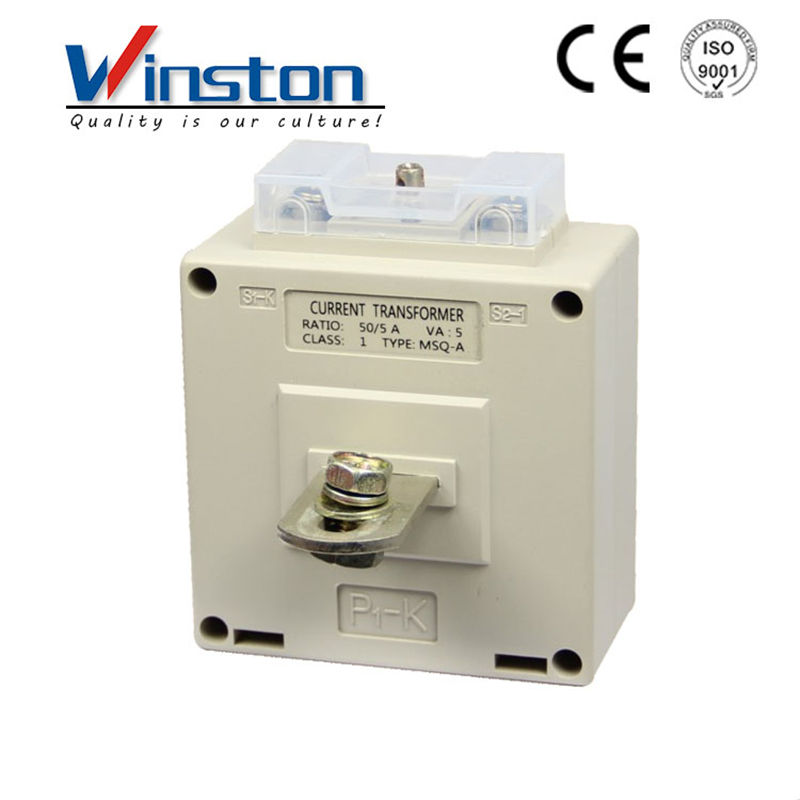

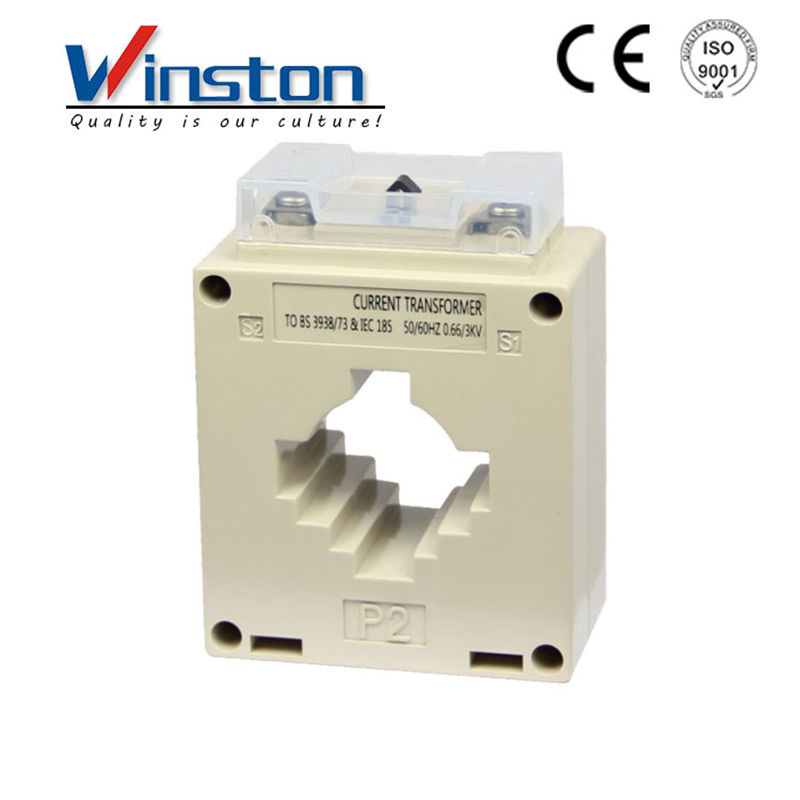

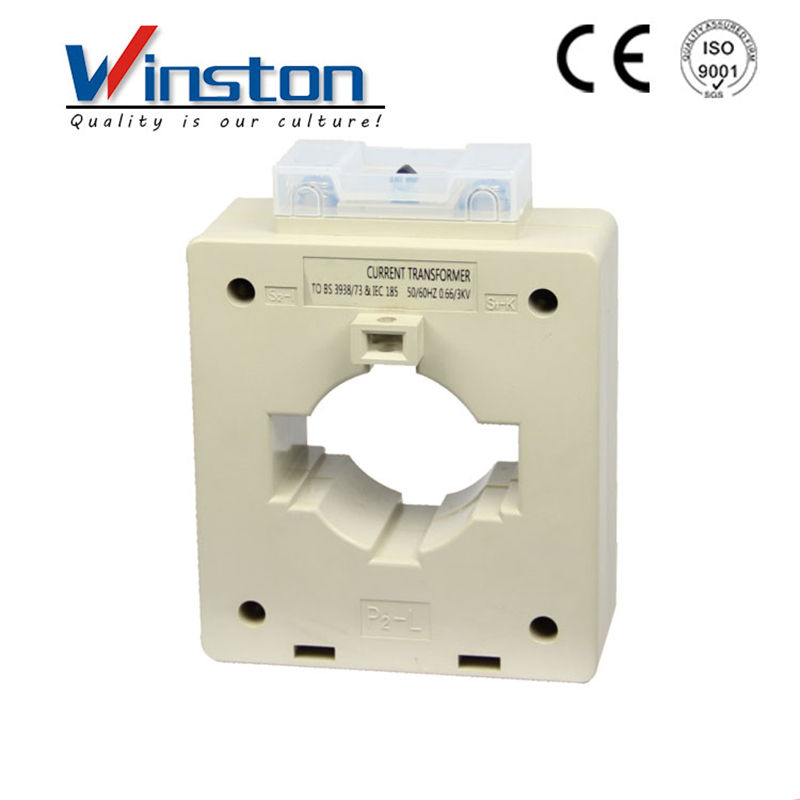

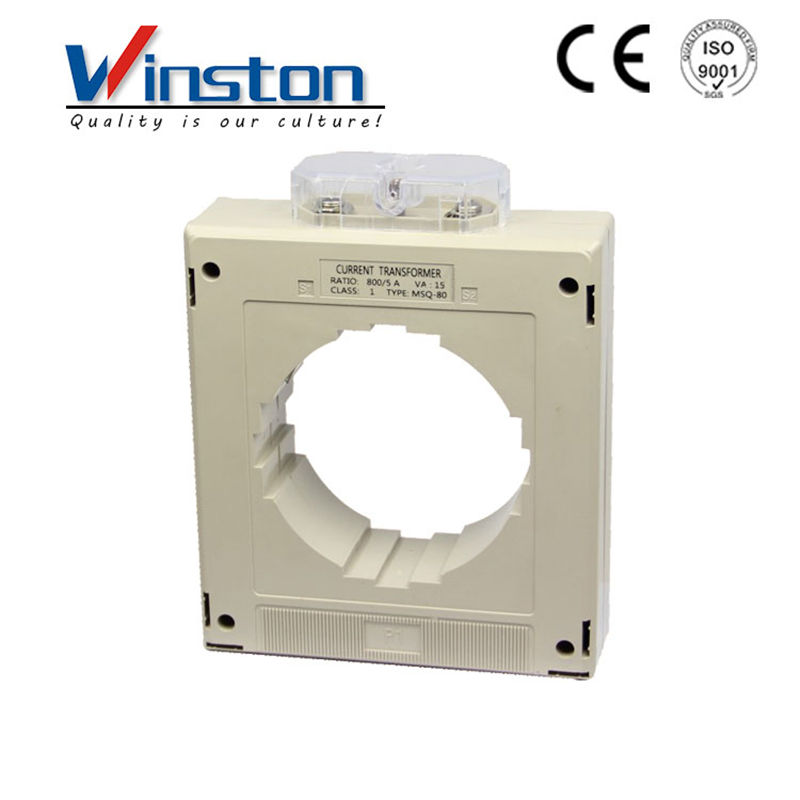

MSQ Series Current Transformer

Name: MSQ Series Current Transformer
Brand: Winston
SKU: 00405
Rating: 4.1 (253 reviews)

Category List

> Selected Products

Small, Compact Thermostat KTO 011/KTS 011

Compact High-performance Fan Heater CS 130 950W,1200w

WSTG600 Series Single Phase Power Supply 380V 50/60Hz Frequency Inverter

VFD MPPT Solar Pump Inverters 0.75Kw - 7.5Kw 3 Phase DC To AC Water Pumping Inverter

Get in Touch

Product information

FEATURE

Two installation methods: Panel /Busbar
Transparent terminal cover
Rated current up to 6000A

STANDARD

IEC60044-1
GB1208-2006

SPECIFICATIONS

Rated Frequency	50/60Hz
Rated Test Voltage	3kv AC.(1min)
Rated short-time thermal current(lth)	60in
Rated dynamic current (ldyn)	2.5lth
Rated voltage (Um)	0.72Kv AC.
Continuous overload (ld)	1.2In
Operating temperature	-10℃~50℃
Housing self-extinguishing class	VO
Safety factor	FS 5
Secondary current	5A/1A

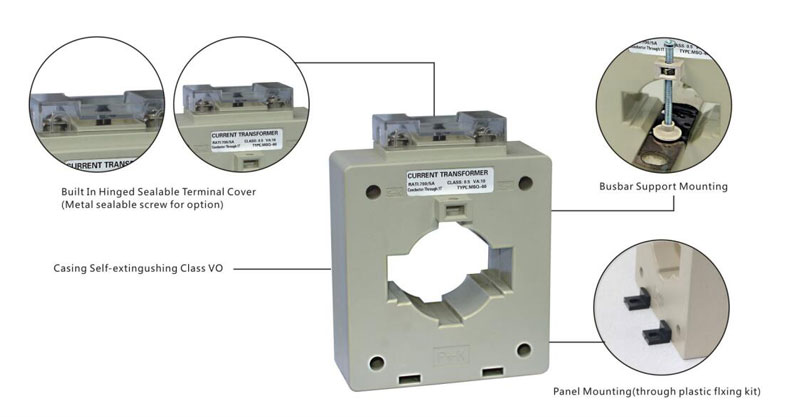

Built In Hinged Sealable Terminal Cover(Metal sealable screw for option);Casing Self-extingushing Class VO;Busbar Support Mounting;Panel Mounting(through plastic flxing kit)

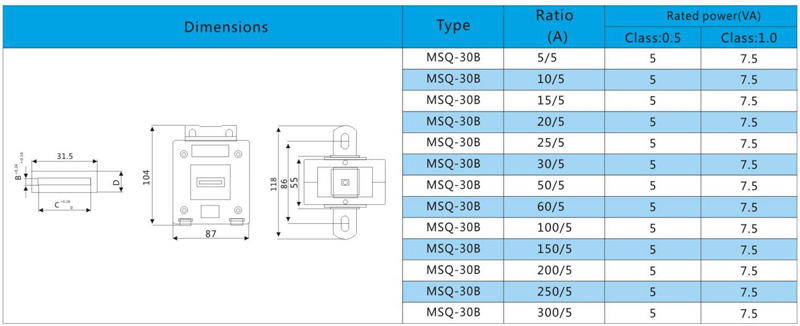

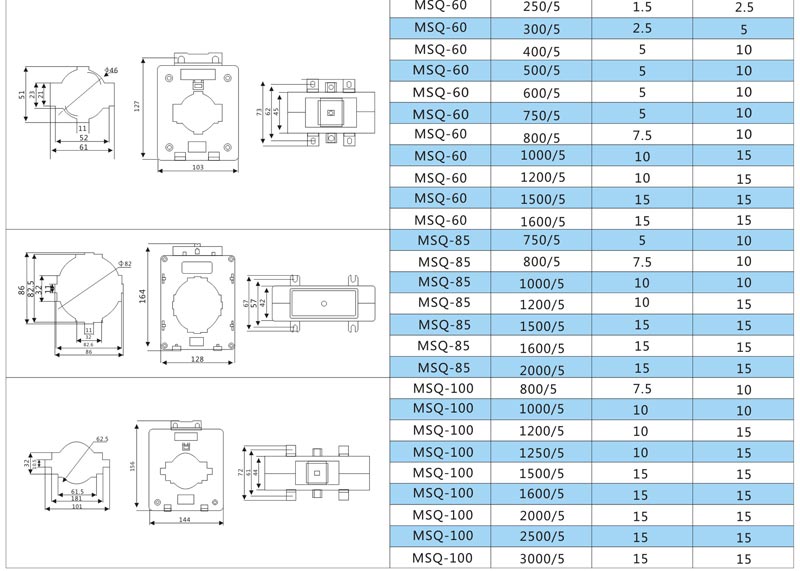

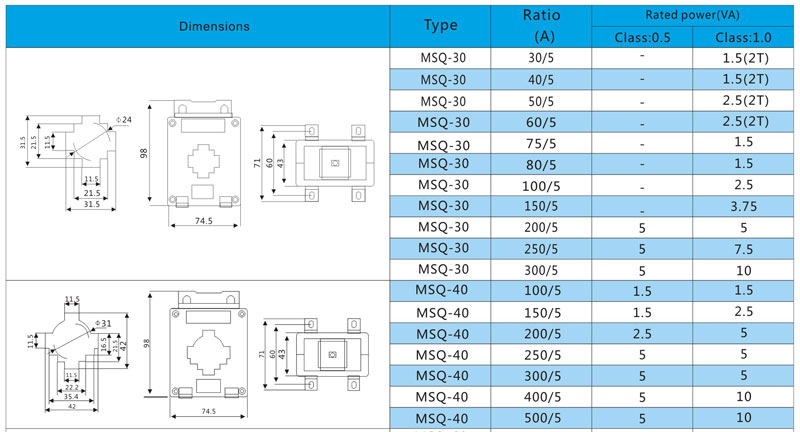

MSQ Series Model and Dimenstions

MSQ Series Model and Dimenstions:Dimensions,Type,Ratio,Rated power(VA)
