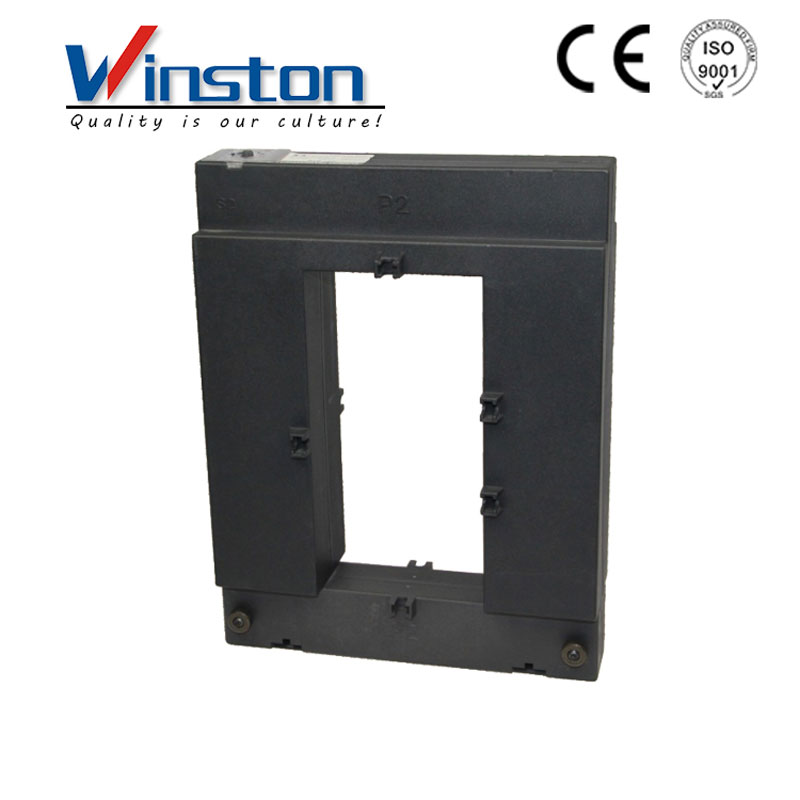

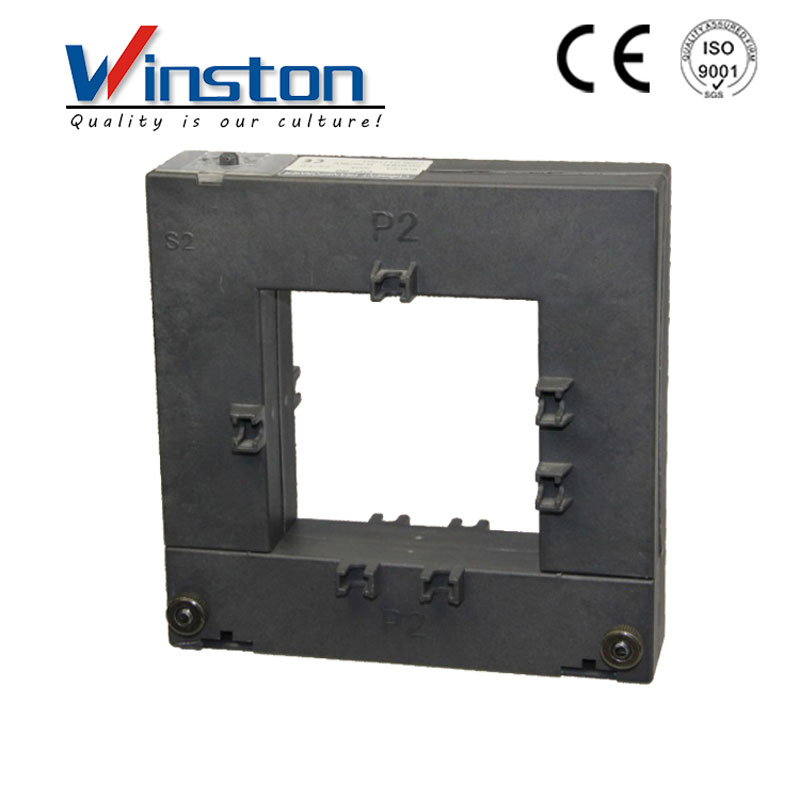

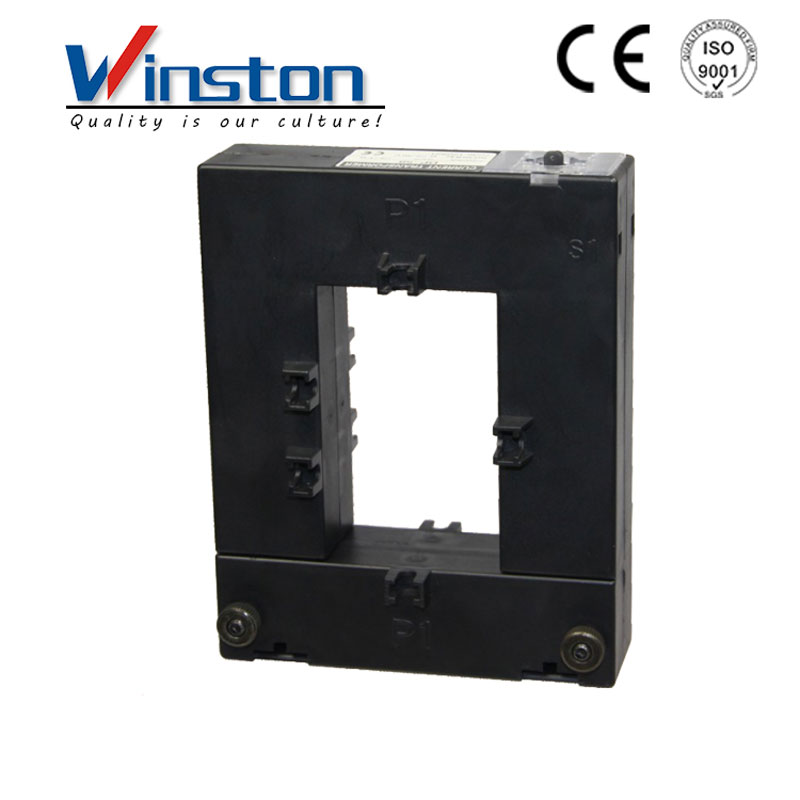

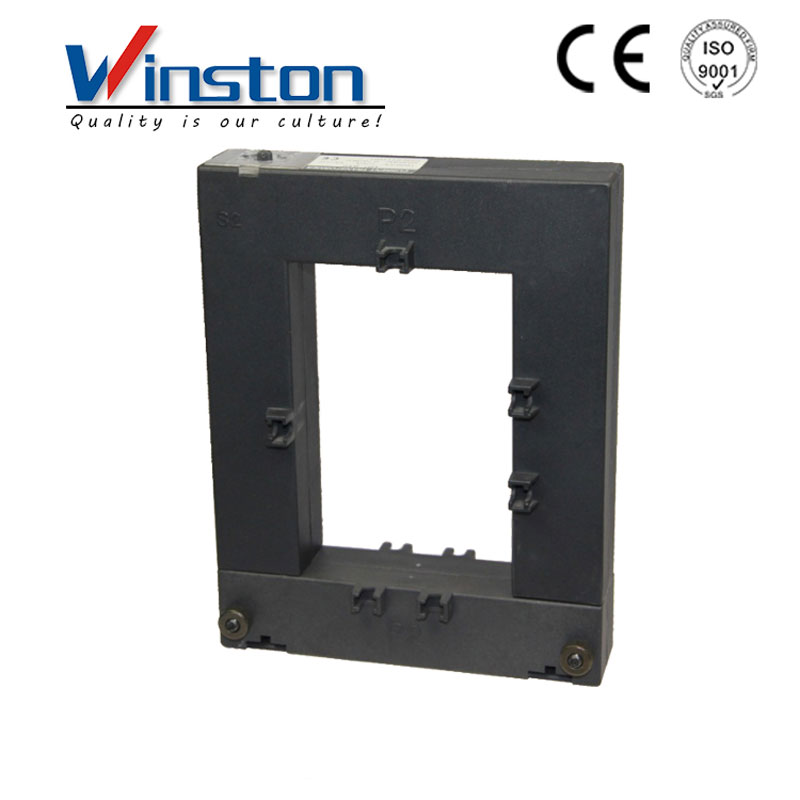

DP Series Current Transformer

DP Series Current Transformer
DP Series Current Transformer
DP Series Current Transformer
DP Series Current Transformer
DP Series Current Transformer
DP Series Current Transformer

FEATURE

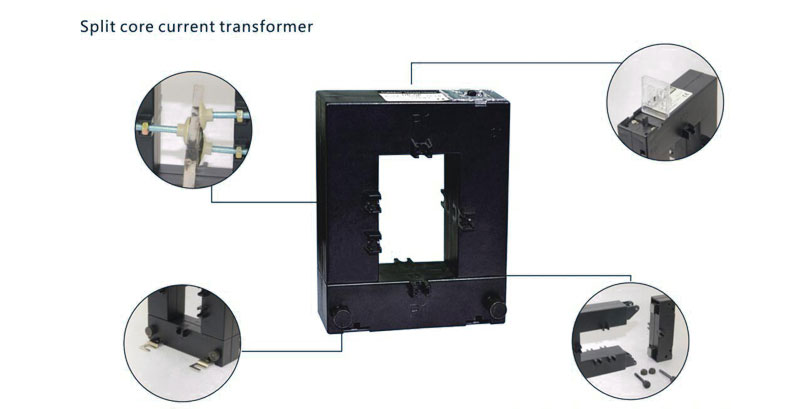

Two installation methods: Panel/Busbar
very easy to install
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installation
Rated primary current from 5A to 5000A

SPECIFICATIONS

Rated Frequency

50/60Hz

Rated Test Voltage

3Kv AC.(1min)

Rated short-time thermal current(lth)

60In

Rated dynamic current (ldyn)

2.5lth

Rated voltage (Um)

0.72Kv AC.

Continuous overload (ld)

1.2In

Operating temperature

-10℃~50℃

Flame retardant grade

vo

Safety factor

FS 5

Secondary current

5A/1A

STANDARD

IEC60044-1 GB1208-2006

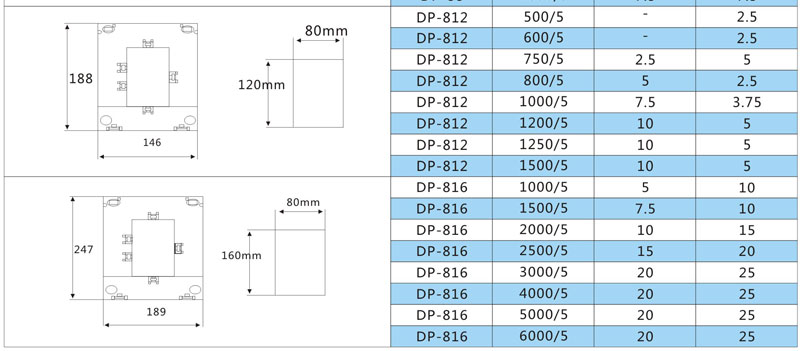

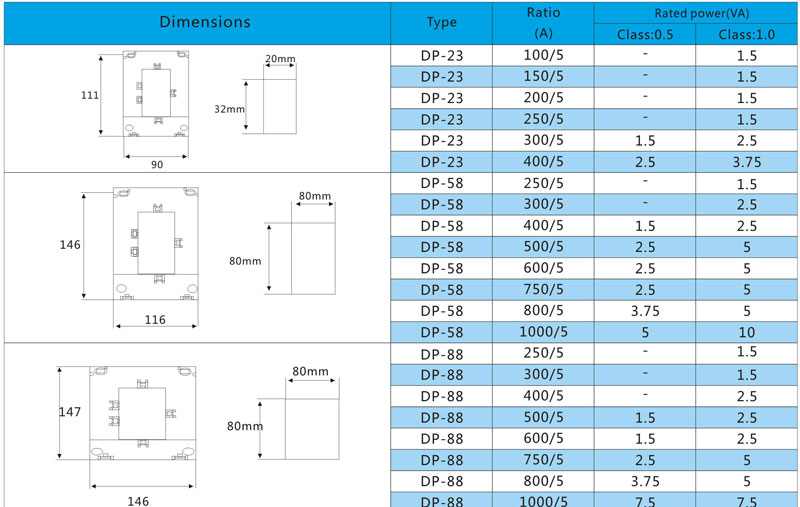

DP Series Model and Dimensions
