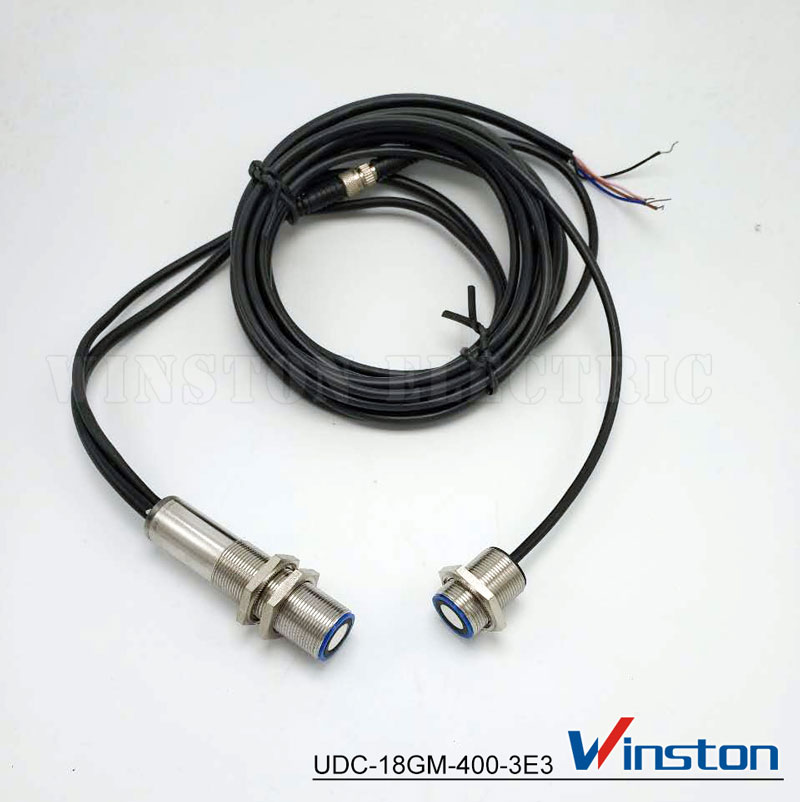

UDC-18GM-400-3E3 Double Sheet Sensor

Model Number
UDC-18GM-400-3E3

Features

• Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers
• No TEACH-IN required
• Function indicators visible from all directions
• Insensitive to printing, colors, and shining surfaces
• Material weight from 10 g/m2 up to over 2000 g/m2
• Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils
• Perpendicular or inclined sensor mounting relative to the sheet plane possible
• Programmable

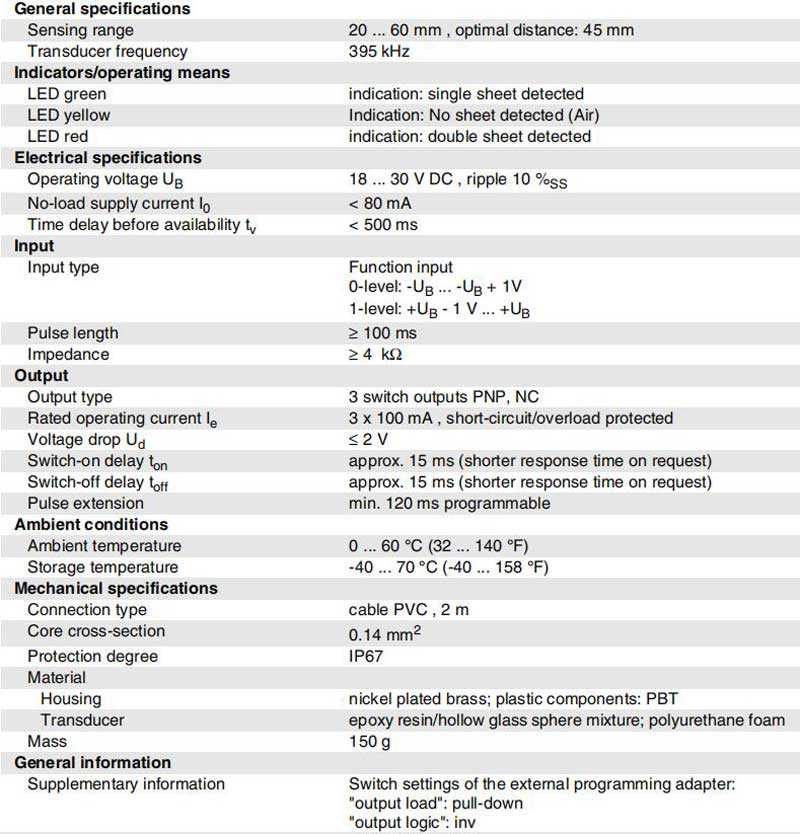

Diagrams

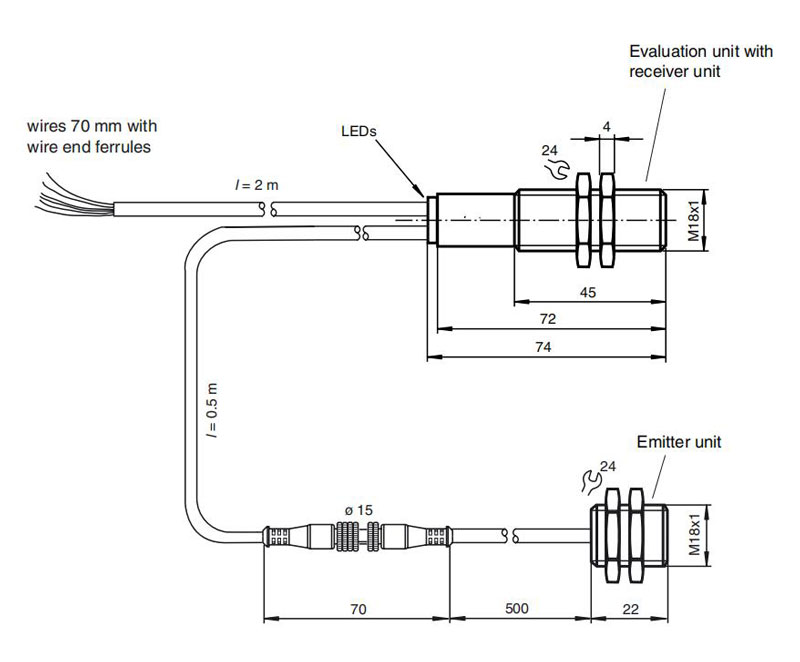

Dimensions

Electrical Connection

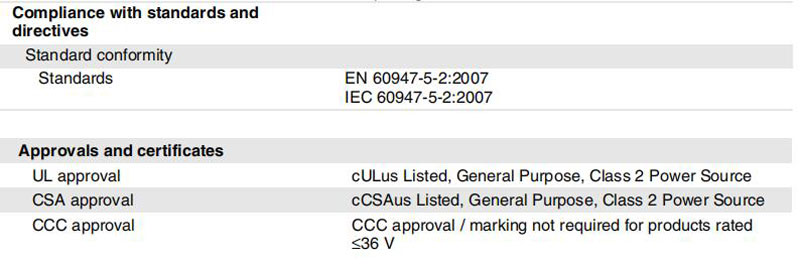

Additional Information

Accessories

UDB-Cable-2M

MH-UDB01
Mounting bracket for double sheet monitor

UDB-Cable-1M

UC-PROG1
Programming adapter

V15S-G-0,3M-PUR-WAGO
Male cordset, M12, 5-pin, PUR cable with WAGO terminals

Ultraschall-Sensoren DTM
DTM devices for communication with cube style and UMC... sensors

PACTware 4.X
FDT-Framework

Description of sensor functions

The ultrasonic double sheet monitor is used for double sheet detection in all situations in which the automatic distinction between double and single sheets is required in order to protect machines or avoid waste production. The double-sheet monitor is based on the ultrasonic through-beam principle.
The following can be detected:
- No sheet, i.e. air,
- Individual sheet
- Double sheet

A microprocessor system evaluates the signals. The appropriate switch outputs are set as a result of the evaluation. Changes in ambient conditions such as temperature and humidity are compensated for automatically. The interface electronics is integrated into a compact M18 metal housing together with a sensor head.

Switching on

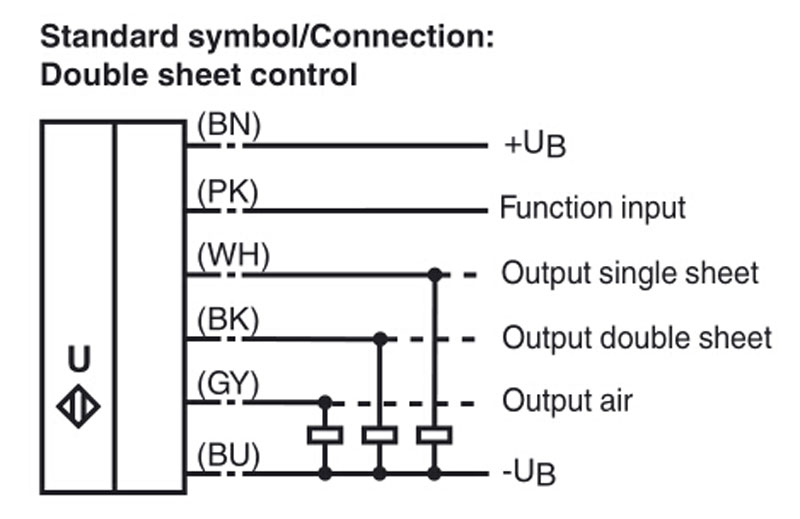

The sensor is equipped with 6 connections. The functionality of the connections is described in the following table. The function input (PK) is used to assign parameters to the sensor. (See Output pulse extension, Alignment aid and Program selection). During normal operation, the function input must always be securely connected with +UB or -UB, to avoid possible interference or improper functiona-lity.

Normal mode

The sensor is working in normal mode if the function input (PK) is applied to -UB or +UB when the power source (Power-On) is supplied,
as shown in the output pulse extension table (see below).

Displays:
LED yellow:      Detection of air
LED green:       Detection of single sheets
LED red:           Detection of double sheets

Switch outputs:
The switch outputs are only active in normal operation!
White:      WH     Single sheet output
Black:       BK       Double sheet output
Gray:        GY       Air output

Output pulse extension

Switching the function input (PK) on to -UB or +UB makes it possible to select a minimum pulse width of 120 ms for all output pulses of the three switch outputs.

Please note:
This can result in a condition in which more than one switch output is switched through!

Display Mode

The selected parameter assignment of the sensor can be displayed by switching the function input (PK) to voltage-free during normal operation. The green LED displays the program number (the number of flashing pulses (1 ... 4) = the program number).
The outputs are inactive during this time.
If the function input (PK) is switched to voltage-free when power is supplied (Power-On), the sensor will also work in display mode.
If the unit is switched to voltage-free while the function input (PK) is in operation due to an error (broken cable, coming loose because of vibration), display mode acts as a fault display.

Parameter assignment

The sensor is equipped with 4 programs for different ranges of application. This makes it possible to work with a wide range of material.
The user can select the program best suited for a specific application.
The default setting, Program 1, is designed so that no change in the setting is required for most applications.

Programs

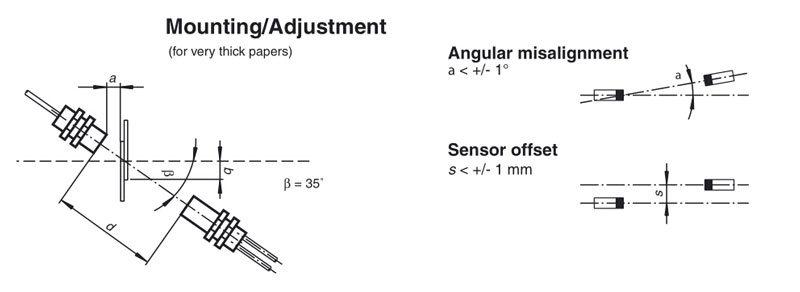

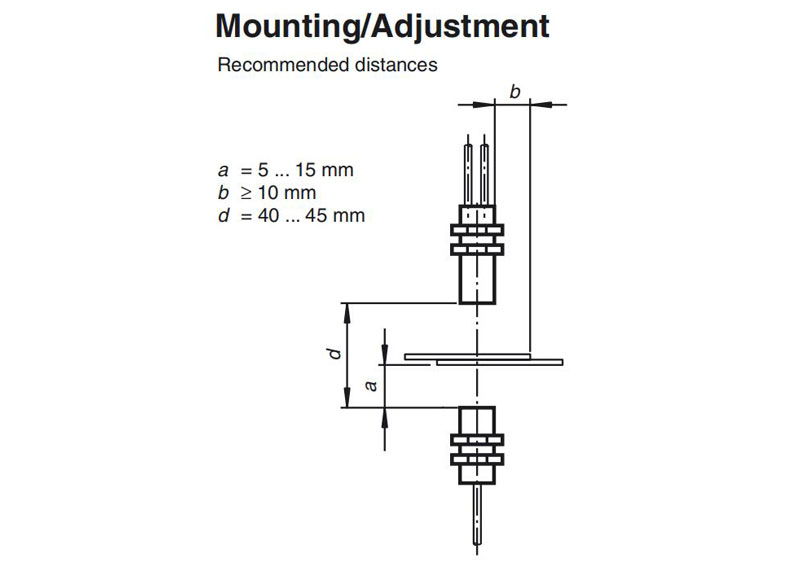

*) The measurements were made under the following conditions: d = 45 mm, a = 10 mm, β = 0°
*) The measurements were made under the following conditions: d = 45 mm, a = 10 mm, β = 35°

Procedure for assigning parameters

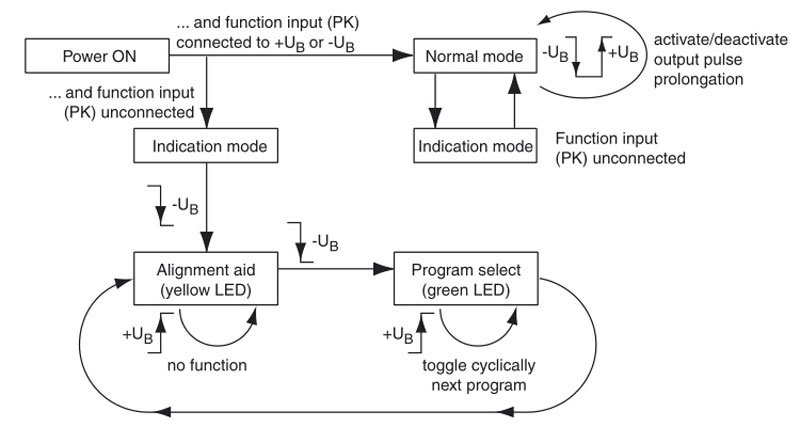

It is possible to switch to additional parameter assignment modes from the display mode:
         Alignment mode -->
         Program selection mode -->
         Alignment aid mode --> (for checking)
When the function input (PK) is applied to -U B (for > 500 ms), the mode changes. When the "Program selection“ mode is active, swit-
ching on function input (PK) on to +U B (for > 500 ms) selects the next program level.
Disconnecting the power supply causes the system to exit the current mode with the selected program change.
The switch outputs are not active while parameters are being assigned to the sensor!

Modes
Amplitude control
During installation, the amplitude control can be used to check whether the ultrasonic amplitude at the receiver is sufficient. If the transmitter is not aligned properly in relation to the receiver, maximum sound energy is not transmitted to the receiver, which may result in the incorrect detection of materials.
When the sensor detects an area of air (yellow LED lights up), the UDC begins to display the strength of the measured amplitude signal:
- if the signal is weak, the yellow LED flashes at low frequency
- the flashing frequency increases in line with the signal strength
- the yellow LED lights up continuously when the signal strength is sufficient.
The single sheet function (green LED) and double sheet function (red LED) are now active. This can be used to check the correct function of the sensor.

Program selection

In the program selection mode, the current program is displayed by the green LED (number of flashing pulses = program number).
Applying the adjustment input (PK) to +U B (for > 500 ms) causes the next program to be selected in cyclic sequence (program 1 follows through to program 4)
