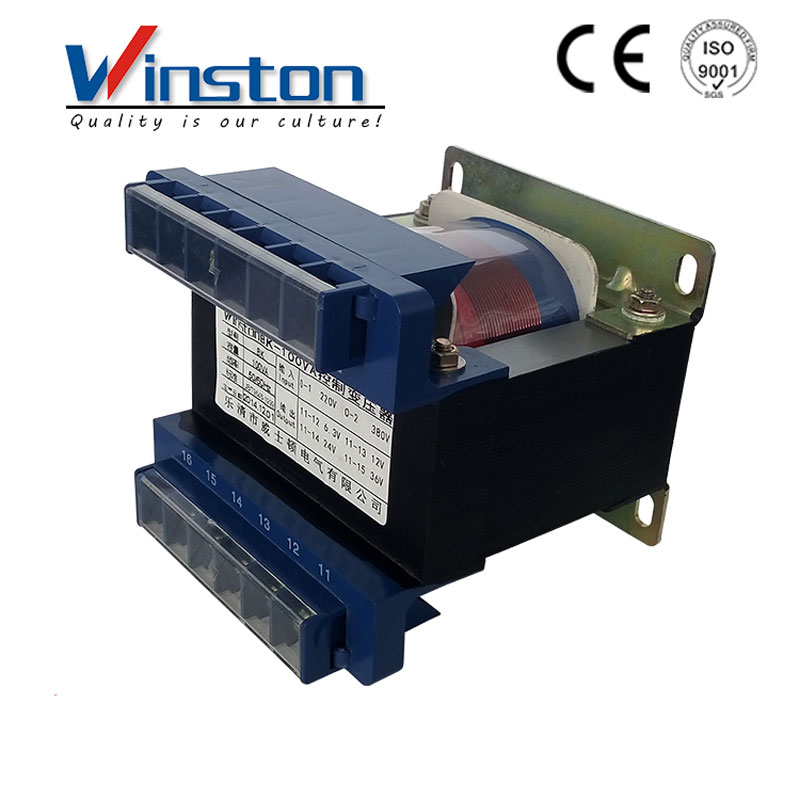

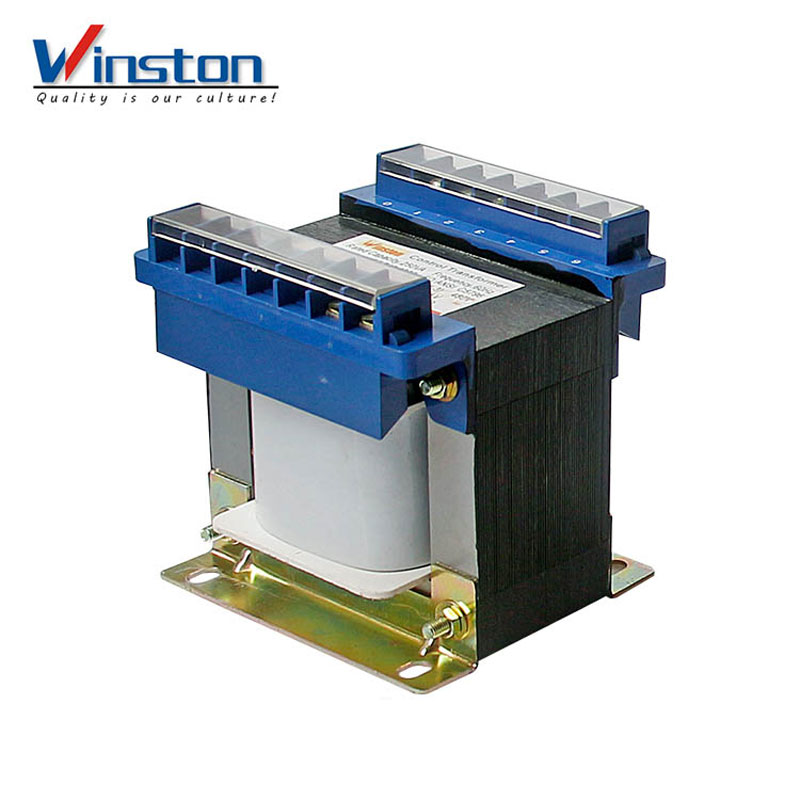

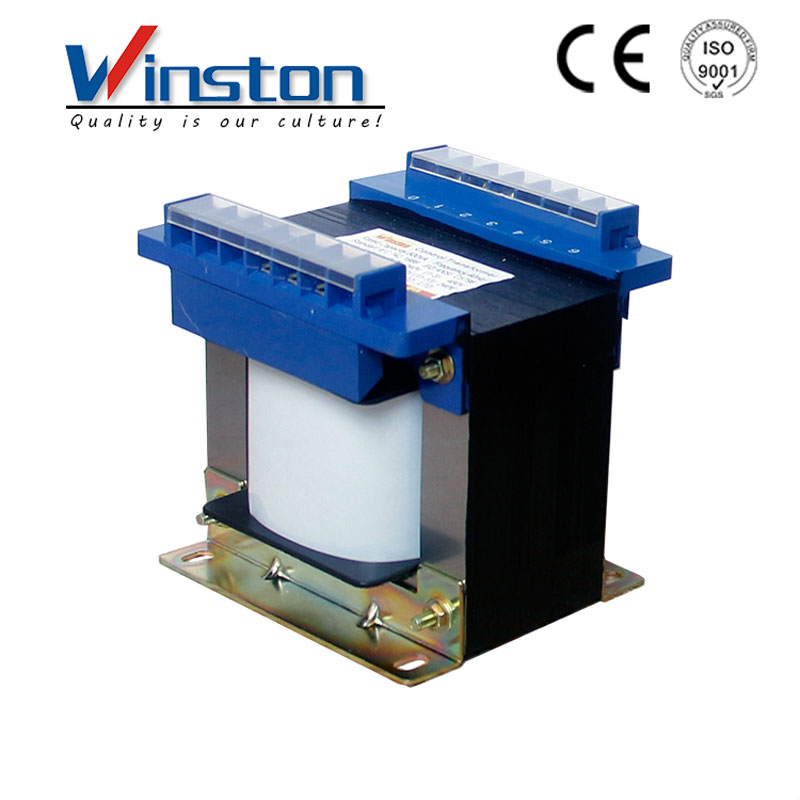

BK Series Engine Bed Control Transformer

Use and structure characteristic

The BK series engine bed control transformer (here after refers to as transformer) to be suitable the voltage of 500V frequency 50-60 Hzelectrical circuit. Usually serves as powersupply for engine bed control electric appliance or the partial flare and indicating lamp.

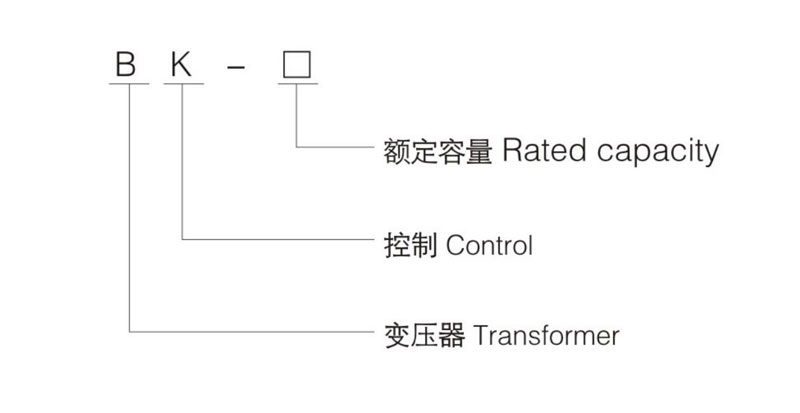

Model and meaning

Use environment

1.The surrounding air temperature is from-5℃ to 40℃, the average value is not exceed 35℃ of 24 hows;
2.The installation site elevation does not surpass 2000m;
3.The atmospheric relative humidity will less than 50 percent,once the ambient air temperature is +40℃, at lower temperatures can have relatively high temperature, the largest wetlands on the average humidity is 90%, while the average monthly minimum temperature is +25℃, and taking into account the temperature changes due to occurin the surface of Rich Products.

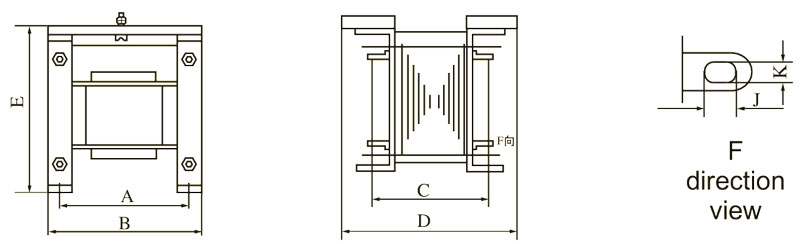

External dimensions

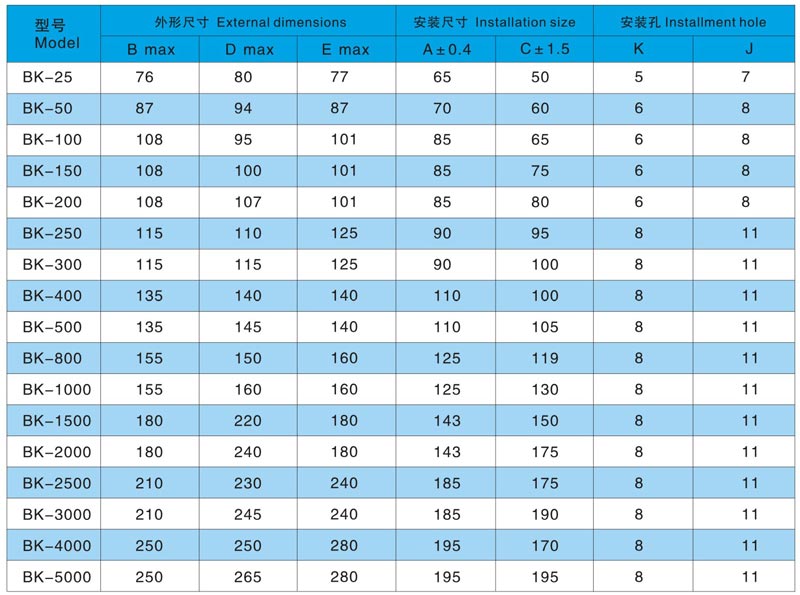

BK series outline and installation dimension

Matters needing attention

1.Before purchase, first estimates the electric appliance aggregate capacity which you use, and select the suitable capacity transformer, guarantees the instantaneous starting will not burn the transformer.

2.This transformer strictly according to national related standard design production. When you use the multi-windings ( multi-controlvoltage ) transformer, the capacity should according to the ratio-voltage corresponding increase transformer capacity, in order to avoid burns out the transformer.

3.Before the installment, should examine the parameters carefully to sure whether them meet your requirement, after confirmed unmistakable, only then installs use.

4.(After the circular telegram work, the transformer core and the coil will heat but the temperature will not exceed 80℃ ) it is the normal phenomenon, if the temperature rise up 80°℃, even belch smoke, please cut down the power source and inspect the electric appliance capacity which you using.

5.In the transportation, please avoid colliding as far as possible, please sure not to be affected with damp, when use, please note maintains, protects the transformer service life.
