Products Description
1. The power supply to other equipment has obvious interference (interference, overvoltage)
2. Voltage imbalance between power supply phases > 1.8% of rated voltage
3. Very low impedance line (power transformer for frequency converter rating more than 10 times)
4. A large number of frequency converters installed on a line to reduce line current
5. Use COS <φ (power factor) to correct capacitance or power factor correction unit
Features
1. Rated working voltage: 380V/440V 50Hz
2. Rated working current: 5A to 1600A@ 40℃
3. Electrical strength: core 1 winding 3000VAC/50Hz/5mA/10s without arc breakdown (factory test)
4. Insulation resistance: 1000VDC insulation resistance value ≥100MV
5. Reactor noise: less than 65dB(with the reactor horizontal distance point 1 meter test)
6. Protection class: IP00
7. Insulation grade: F grade or above
8. Product implementation standard: IEC289:1987 reactor
GB10229-88 reactor (EQV IEC289:1987)
Jb9644-1999 Reactance for semiconductor electric drives

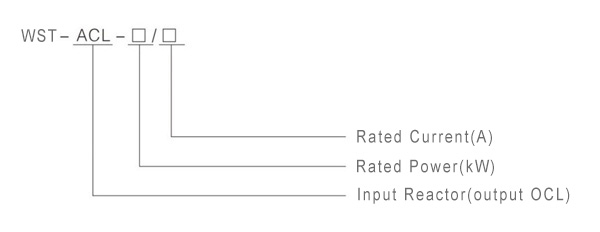

Model Explanation

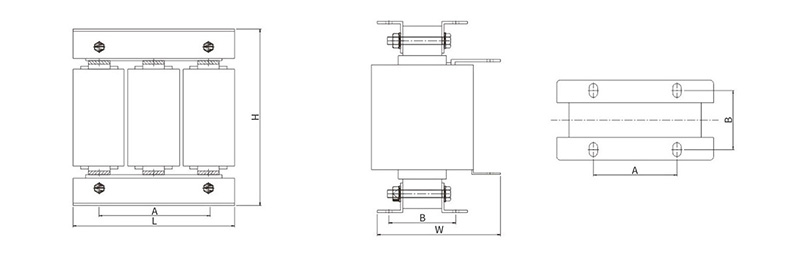

Dimension
Technical Parameters
|
Incoming reactor current (A)
|
Frequency converter governor power KW
|
Overall Dimensions L×W×H(mm)
|
A×B
|
|
WST-ACL-8
|
0.75(1.5)
|
155*105*140
|
80*65-10
|
|
WST-ACL-10
|
2.5
|
155*105*140
|
80*65-10
|
|
WST-ACL-10
|
4
|
155*110*140
|
80*65-10
|
|
WST-ACL-15
|
5.5
|
155*115*140
|
80*75-10
|
|
WST-ACL-20
|
7.5
|
155*120*140
|
80*75-10
|
|
WST-ACL-30
|
11
|
155*125*140
|
80*75-10
|
|
WST-ACL-40
|
15
|
155*130*140
|
80*85-10
|
|
WST-ACL-50
|
18.5
|
155*135*140
|
80*85-10
|
|
WST-ACL-60
|
22
|
155*140*140
|
80*85-10
|
|
WST-ACL-80
|
30
|
190*145*155
|
80*85-10
|
|
WST-ACL-110
|
37
|
190*170*155
|
80*105-10
|
|
WST-ACL-125
|
45
|
225*160*215
|
120*85-12
|
|
WST-ACL-150
|
55
|
225*150*225
|
120*80-12
|
|
WST-ACL-200
|
75
|
225*155*225
|
120*80-12
|
|
WST-ACL-250
|
90(93)
|
225*165*225
|
120*90-12
|
|
WST-ACL-280
|
110
|
225*170*225
|
120*90-12
|
|
WST-ACL-300
|
132
|
260*160*255
|
135*85-12
|
|
WST-ACL-400
|
160
|
260*170*255
|
135*95-12
|
|
WST-ACL-450
|
187
|
260*175*255
|
135*95-12
|
|
WST-ACL-500
|
200
|
260*180*255
|
135*95-12
|
|
WST-ACL-540
|
220
|
290*190*305
|
135*95-12
|
|
WST-ACL-600
|
250
|
290*200*305
|
135*105-12
|
|
WST-ACL-700
|
280
|
290*205*305
|
135*105-12
|
|
WST-ACL-800
|
315
|
290*210*305
|
135*110-12
|
