Characteristics:

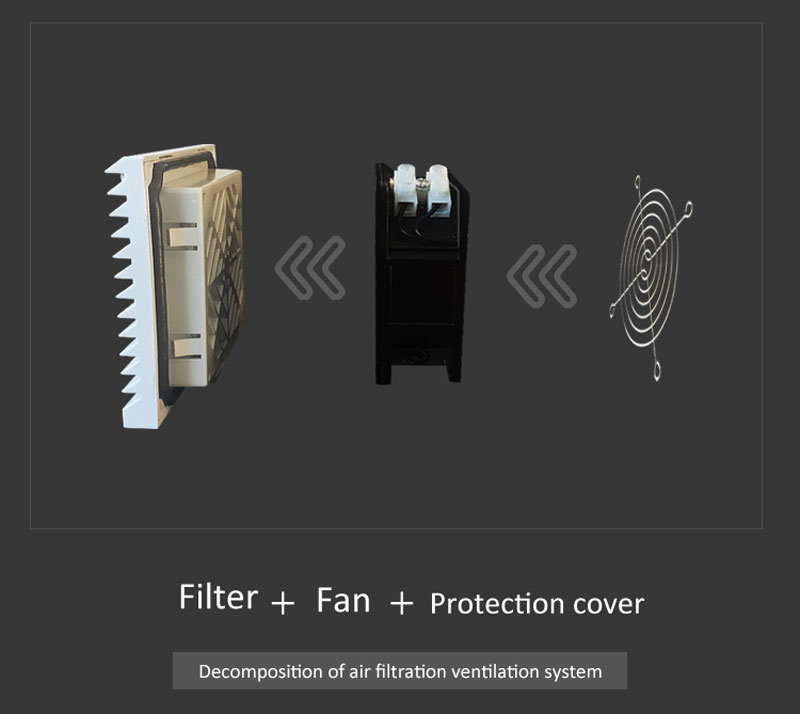

1.It comprises of a axial fan, a protective housing on the front and rear surfaces and filter designed to retain dust particles.
2.The filters that equip the fans must be cleaned and replaced regularly.

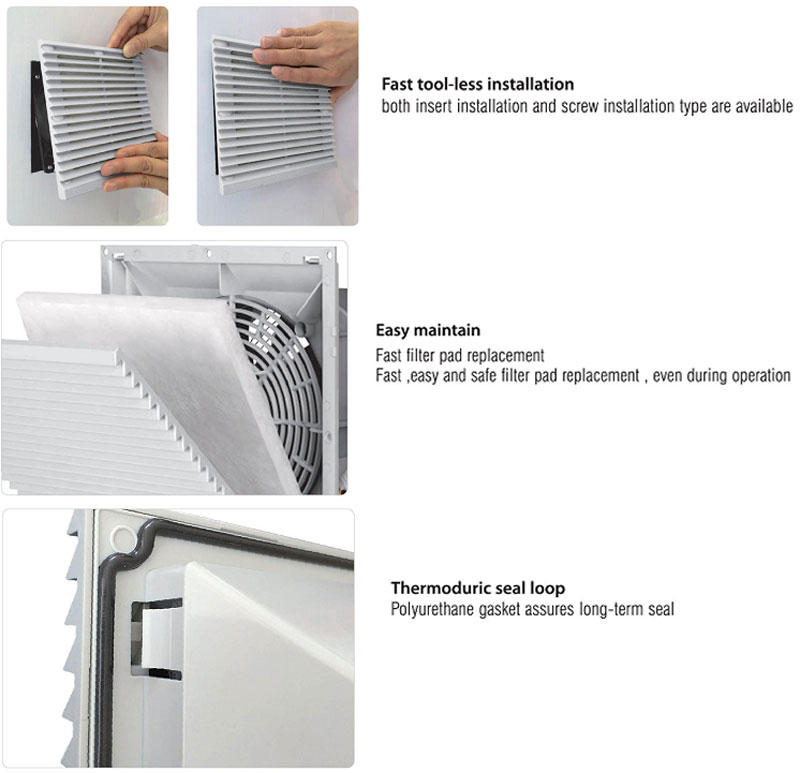

3 This filter can be replaced during operation without risk of touch with the rotating part.
4.Material of filter pad: 100g/ M3 nylon fiber compound， Filtration efficiency up to 73%.
5.Operation Temperature/Humidity Range: (under unconcretionary state) -20°℃~ +65°℃ (temperature),0%~95% (himidity)
6.RAL 7035 grey is the standard offer with the possibility to change to RAL 7032 by means of a replacement grille.

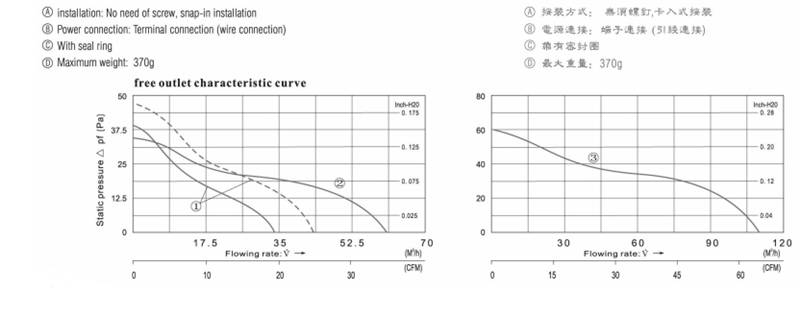

7.Bear in mind the pressure losses caused by the outlet element (grille with filter, ventilation louvre or simple opening) when determining the fan flow rate.
8.Protection class: E N 60 5 29 IP54 (not suitable for outdoor equipment).
