Electronic Hygrothermostat ETF012
Temperature and humidity adjustable
Optical operating display(LED)
Hlgh switching capacity
Clip fixing
The electronic hygrotherm senses the ambient temperature and relative humidity in anenclosure with electric/electronic component, and turns on a heater(or alternatively, a fan) ateither set point. helping prevent the formation of condensation in the enclosure. The LED integrated in the adiustment knob on the active controller is lit when theconnected device lS in operation.
Technical Data
|
Switching difference - temperature |
3.6 °F (2 K) ± 1 K tolerance - at 77 °F (25 °C) and 50 %RH |
|
Switching difference - humidity |
4 %RH ± 1 % tolerance - at 77 °F (25 °C) and 50 %RH |
|
Response time - humidity |
approx. 5 sec. |
|
Contact type |
change-over contact (relay) |
|
Contact resistance |
＜10mΩ |
|
Service life |
NC: > 50,000 cycles |
|
NO: > 100,000 cycles |
|
|
Max. switching capacity (Relay output) |
NO: 240 VAC , 6(1)A |
|
NC: 240 VAC , 8(1.6)A |
|
|
NO: 120 VAC , 6(1)A |
|
|
NC: 120 VAC , 8(1.6)A |
|
|
24 VDC. 4A |
|
|
EMC |
Acc.to EN 55014-1-2，EN 61000-3-2. EN 61000-3-3 |
|
Optical indicator |
LED |
|
Connection |
5-pole terminal. clamping torque 0.5Nm max.: |
|
Rigid wire 2.5mm2 |
|
|
Stranded wire(with wire end ferrule) 1.5mm2 |
|
|
Mounting |
clip for 35 mm DIN rail, EN 50022 |
|
Casing |
Plastic according to UL94 V-0, light grey |
|

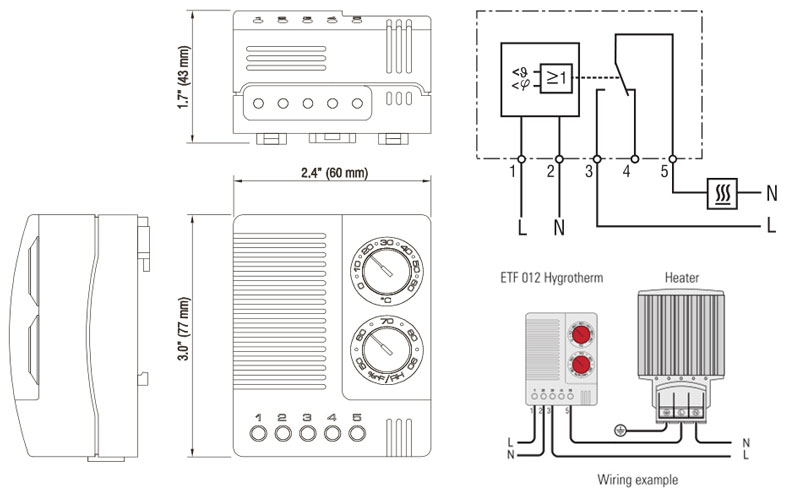

Dimensions |
77×60×43mm |
|
Weight |
Approx.0.20kg |
|
Fitting position |
Vertical |
|
Operating/Storage temperature |
0 to+60℃(+32 t0+140°F)/ -20 to+800℃(-4 to+176°F) |
|
Protection type |
IP20 |
|
Art.No. |
Operating voltage |
Setting range temperature |
Setting range humidity |
|
01230.0-00 |
230VAC, 50/60Hz |
0 to +60℃ |
50 to 90% RH |
|
01230.9-00 |
120VAC, 50/60Hz |
+32 to +140°F |
50 to 90% RH |
|
01230.9-01 |
120VAC, 50/60Hz |
0 to +60℃ |
50 to 90% RH |
