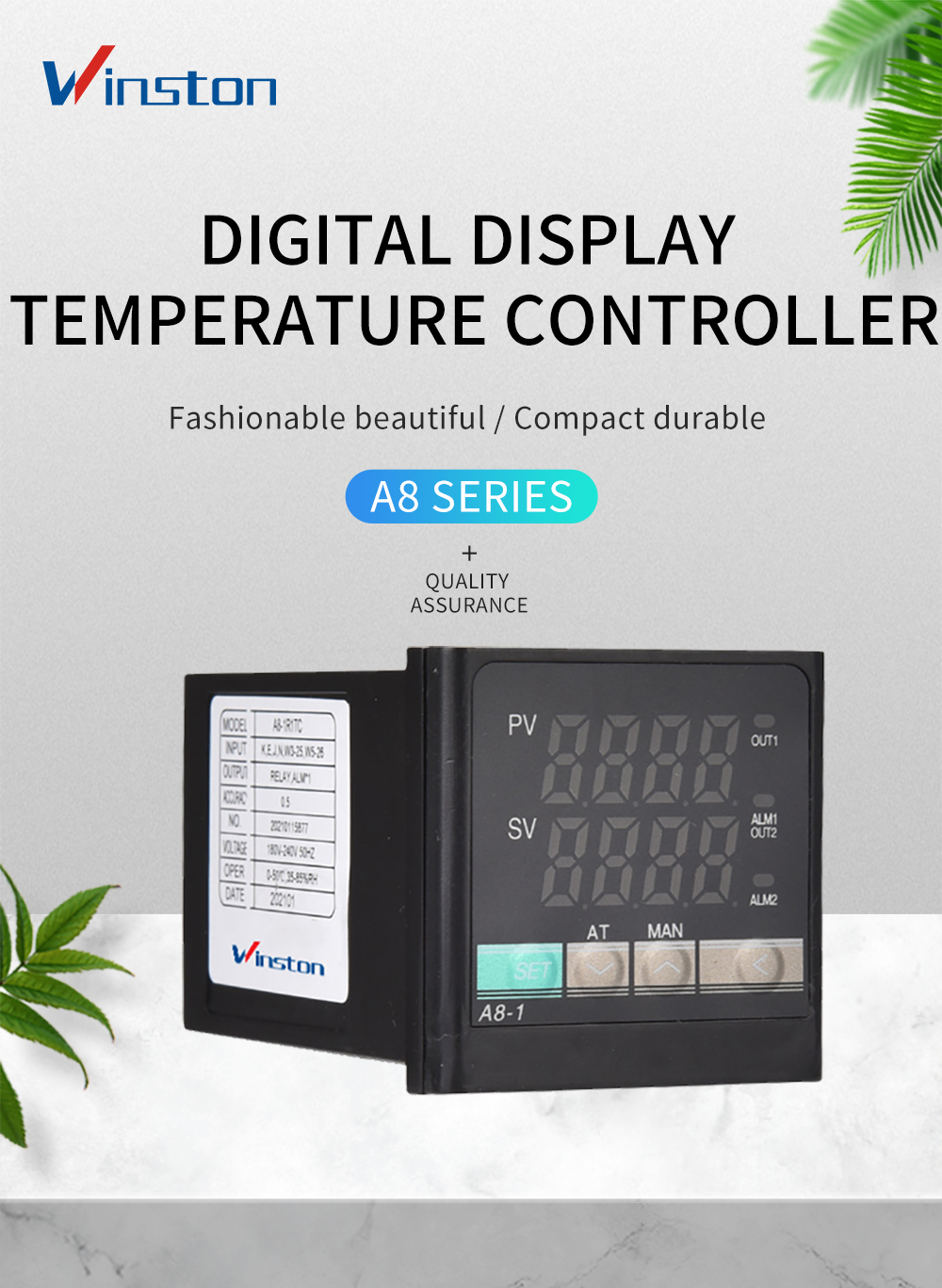

Products Description
1. Thermal resistance or thermocouple input and measuring range both can be set freely.
2. Softwareadjust zero and full scale,temperature measuring of cold-end alone, amplifier constant-zero, display accuracy is better than 0.5%FS.
3. The method of fuzzy theory combine with the traditional PID makes the temperature be controlled quickly and smoothly.
4. The method of advanced PID parameter self-tuning saves a third time as compared with ordinary instrument.
5. The output signal is optional: relay output,DC30V driver solid state relay, 3A current.
6. Alarm output: two circuit user-defined alarm output.
Model Explanation
Specifications
|
Rated voltage
|
180V-240V AC , 50HZ
|
|
Power comsumption
|
≤5VA
|
|
Working environment
|
Ambient temperature: 0℃~50℃
Relative humidity: 35%~85% (no condensation)
|
|
Storage temperature
|
-25℃-65℃ (Avoid ice or dew)
|
|
Resolution
|
1℃, 0.1℃ (adjustable)
|
|
Wiring method
|
Terminals
|
|
Accuracy
|
±0.5%FS
|
|
Memory protection
|
Non-volatile memory
|
|
Installation environment
|
Installation type II, pollution grade 2 (IEC61010-1)
|
|
Relay output
|
Relay contacts AC220V/DC30V, 3A
|
|
Logic level output
|
ON:DC12V; OFF: below DC0.5V: Max current: 30mA, Load resistance≥1K.
|
Dimension

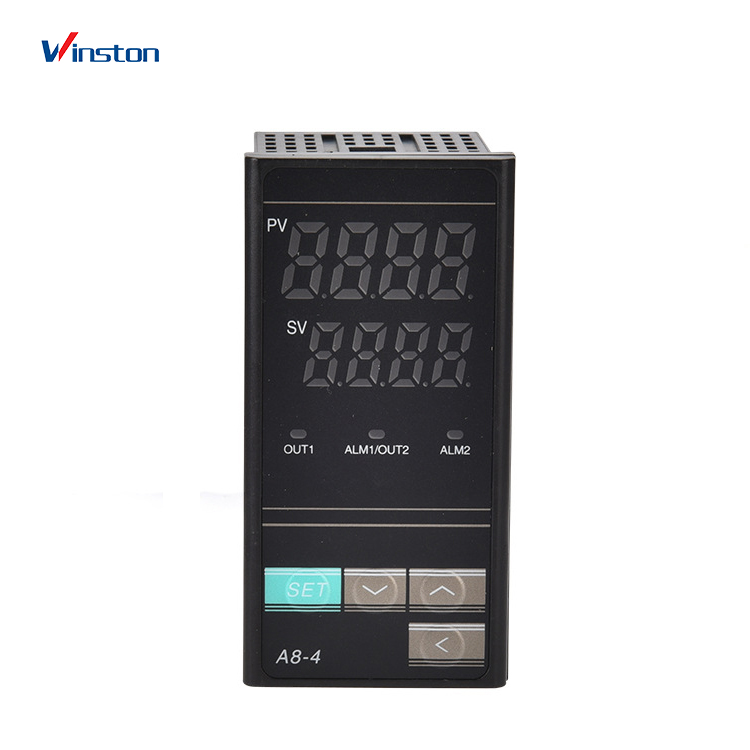

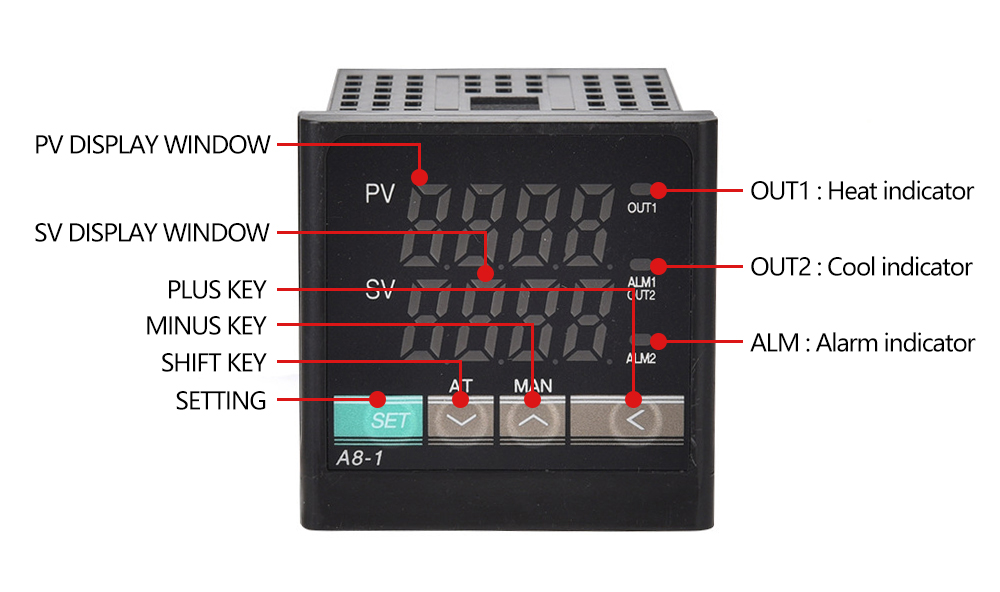

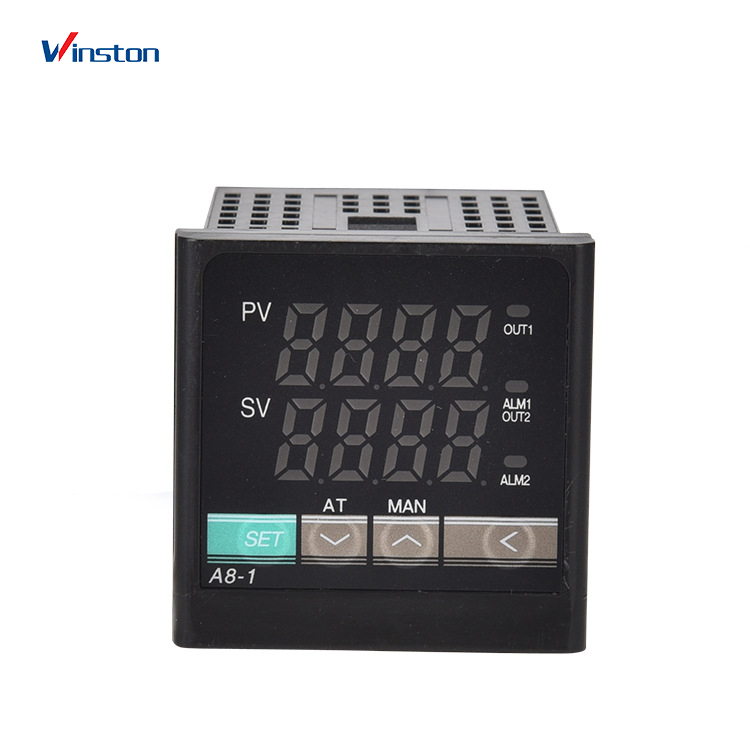

Control panel

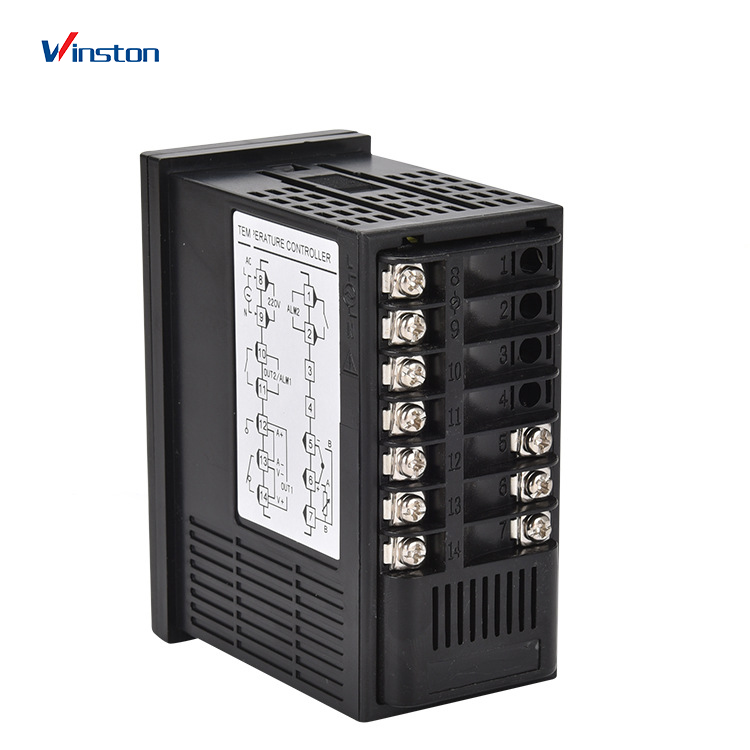

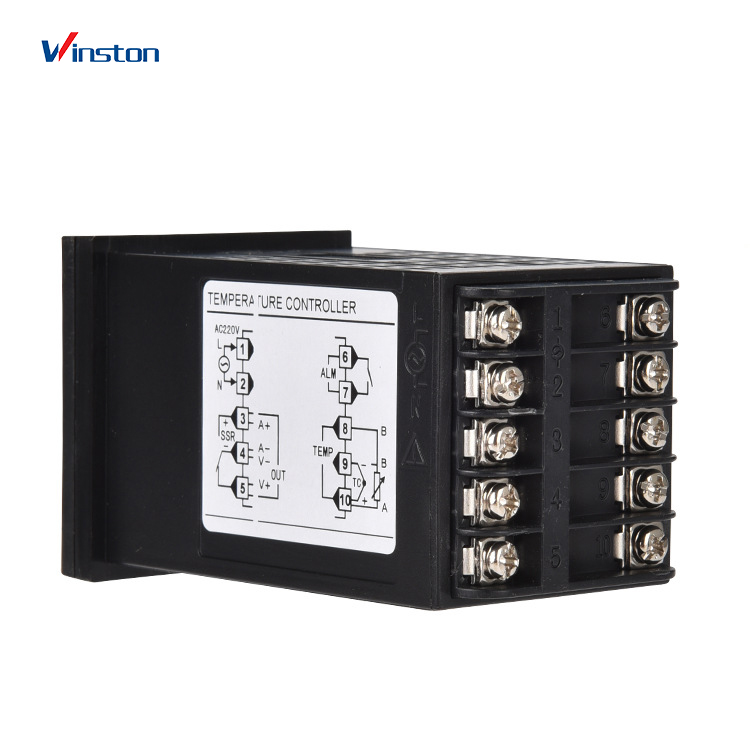

Wiring diagram
