Description
1) Dual Output:power 30W
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370 VDC
3)High Efficiency, High Reliability, Low Cost
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.
9) 100% Full Load Burn-In Test

General Specification

Model D-30A D-30B D-30C D-30F
CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2
DC output voltage,current 5V 0-4A 12V 0-1A 5V 0-2A 24V 0-1A 12V 0.5-1.5A 12V 0.2-1A 12V 0.3-1A 24V 0.3-1A
Wave and noise 50mVp-p 100mVp-p 50mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 120mVp-p
Inlet wire stability ±0.5% ±1% ±0.5% ±1% ±0.5% ±1% ±0.5% ±1%
load stability ±0.5% ±4% ±0.5% ±4% ±0.5% ±1% ±0.5% ±4%
Efficiency 72% 74% 74% 75%
Adjustable range for DC voltage CH1:±10% CH1:±5% CH1:±10% CH1:±5% CH1:±10% CH1:±5% CH1:±10% CH1:±5%
Input voltage range 90-132VAC/180-264VAC by switch 254-370VDC 47-63Hz
Impact current Cold start current 18A/115VAC 36A/230VAC
Overload protection 105%-150% cut off the output,automatic recovery
Over voltage protection -
Setup,rise,hold up time 200ms,50ms,30ms/230VAC at full load
Withstand voltage I/P-O/P:1.5kV I/P-F/G:1.5kV O/P-FG:0.5kV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature -10℃~+50℃
Dimension 129×98×38mm
Weight 0.4kg
Packing 43×32.5×24CM/45PCS/18kg

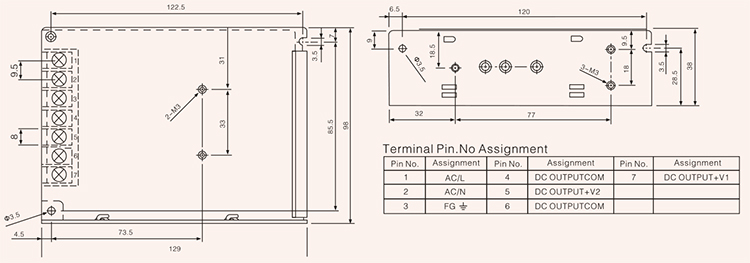

Overall dimension(mm)
Overall dimension(mm)

Good quality gives you a better experience;D series switching power supply
Trustworthy of multiple protection
Smart core upgrade;Good quality core selection
Small size,more space saving;Lightweight and easy to install:38MM thickness design
Porous holes dissipate heat faster
Exquisite quality and ingenuity details:Pure copper transformer;Large capacity electrolysis;Terminals
Wiring diagram
Widely used in various places:automated industry,digital information,City lighting Monitoring equipment

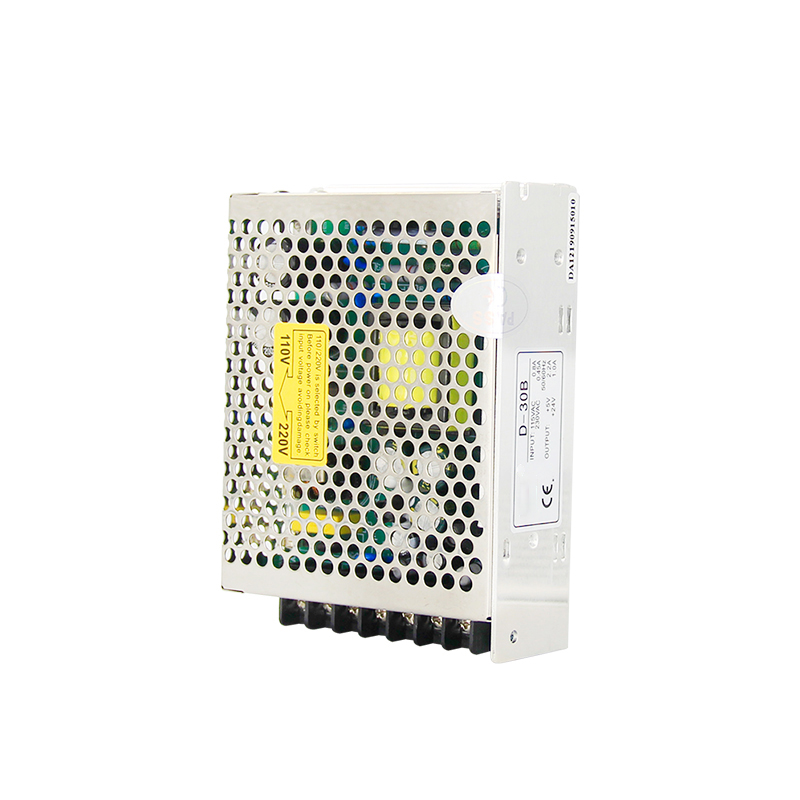

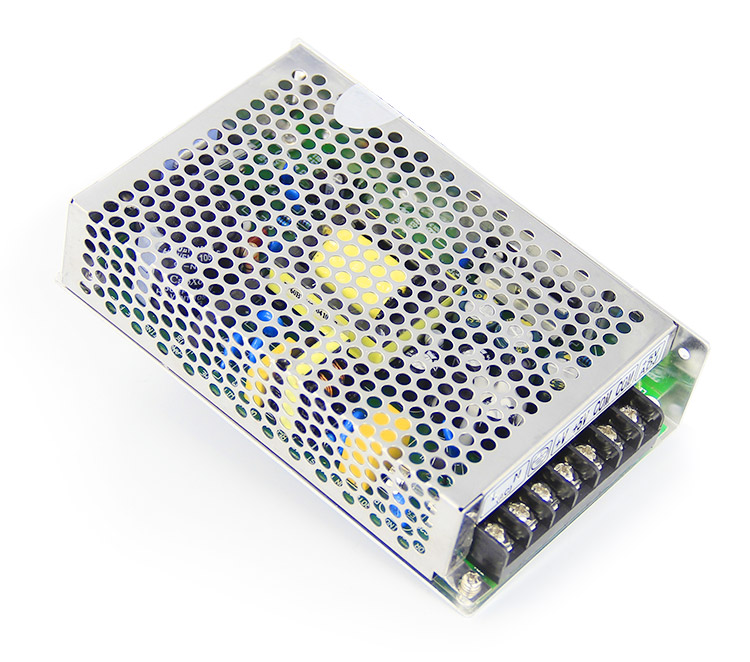

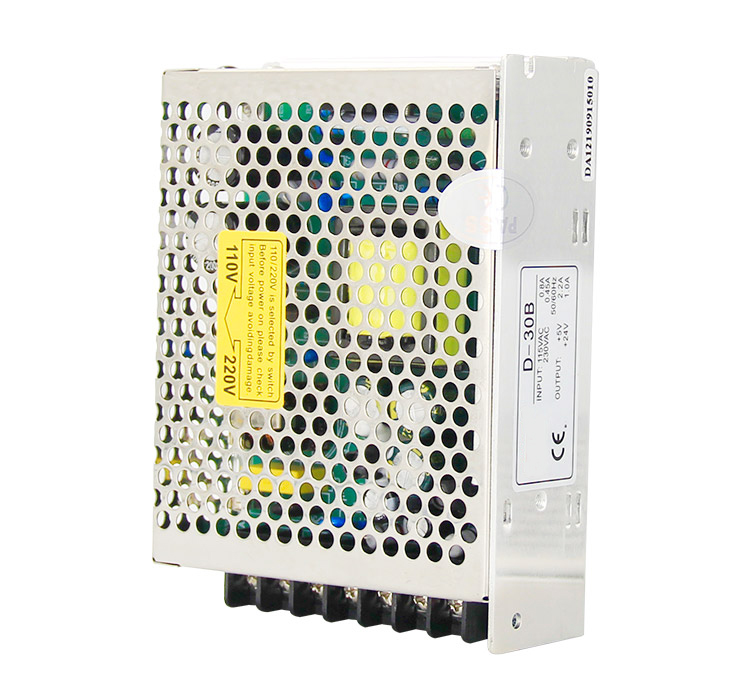

Products Show:D-30 Series 30W Dual Output AC/DC Switching Power Supply
Products Show:D-30 Series 30W Dual Output AC/DC Switching Power Supply
Products Show:D-30 Series 30W Dual Output AC/DC Switching Power Supply
