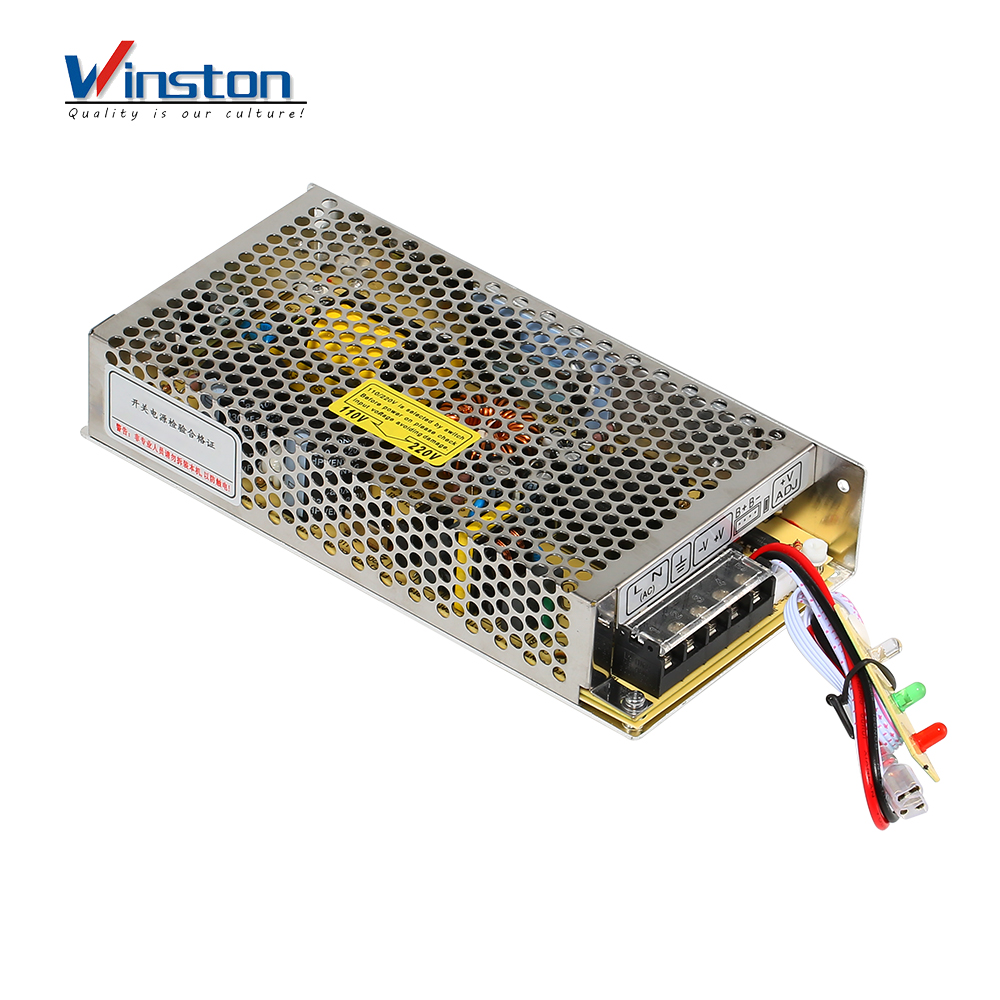

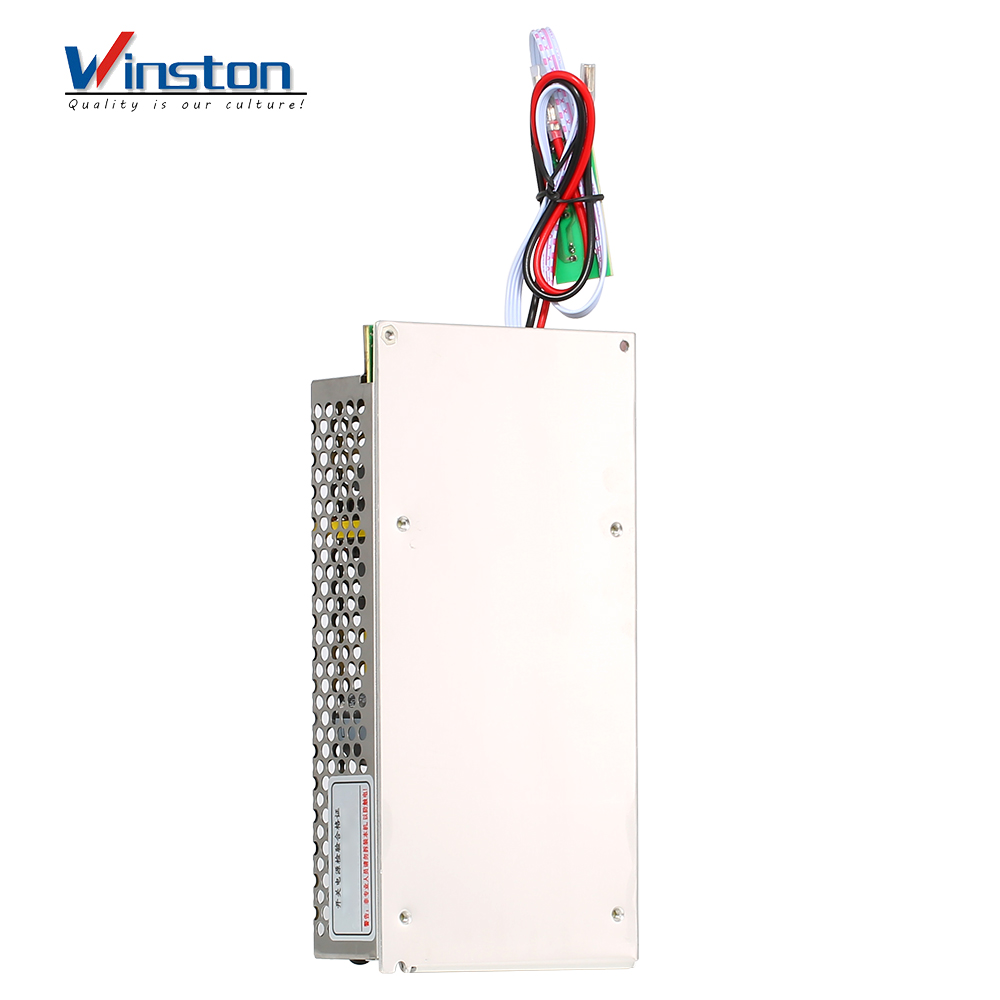

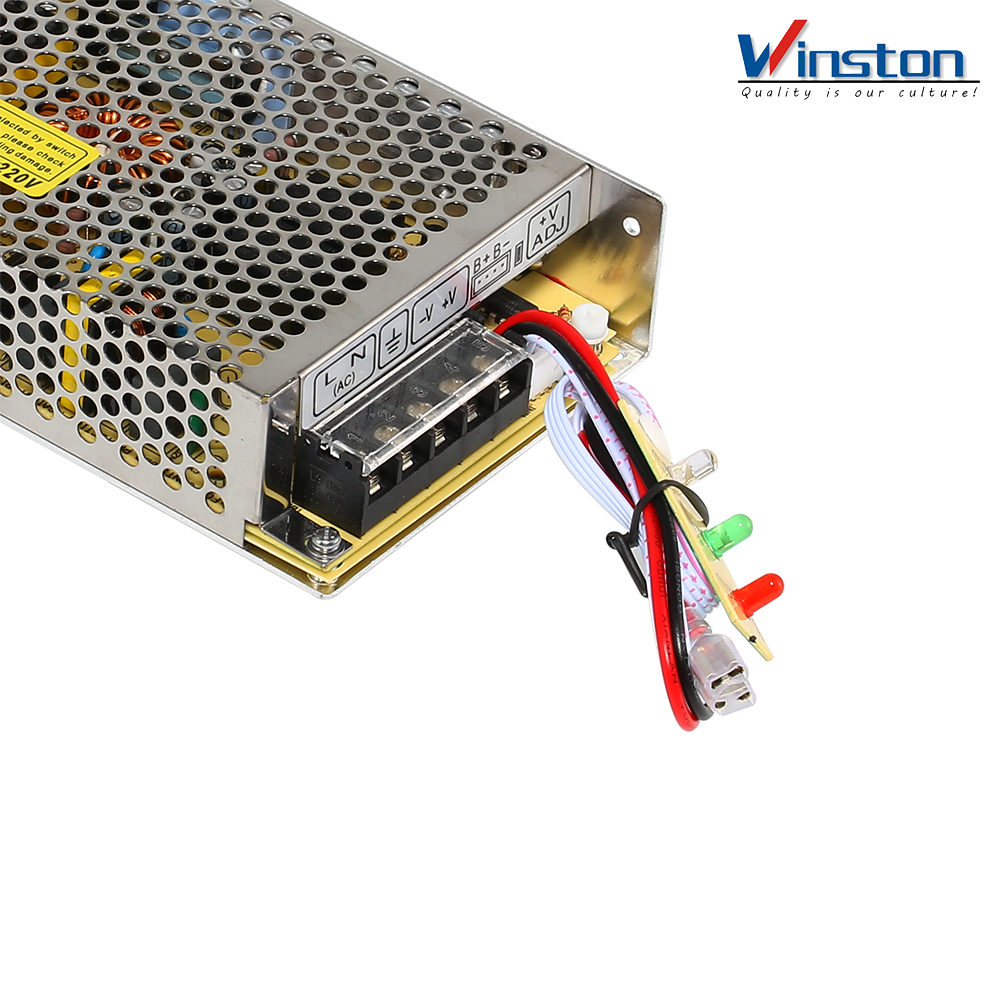

SC-180 UPS Single Output Function Monitor Switching Power Supply

SC-180 UPS Single Output Function Monitor Switching Power Supply
SC-180 UPS Single Output Function Monitor Switching Power Supply
SC-180 UPS Single Output Function Monitor Switching Power Supply
SC-180 UPS Single Output Function Monitor Switching Power Supply
SC-180 UPS Single Output Function Monitor Switching Power Supply
SC-180 UPS Single Output Function Monitor Switching Power Supply

SC-180 UPS Single Output Function Monitor Switching Power Supply

Features
• Universal AC input/Full range
• Small volume,low weight high efficiency
• Protections: Short circuit / Overload
•100% full load burn-in test
• Indicator for power on/charge/normal(LED)
• Battery protection at low voltage
• 2 Years warranty
Technical parameter
Model
SC-180-12
SC-180-24
DC voltage
CH1:12V
CH2:13.8V
CH1:24V
CH2:27.6V
Output Accuracy
±2%
-----
±2%
-----
Rated current
13.5A
1.5A
6.5A
1.0A
Current range
0~15A
-----
0~7.5A
-----
Rated power
182.7W
183.6W
Ripple & noise
120mvp-p
-----
180mvp-p
-----
DC voltage ADJ.range
CH1:10.3~13.8V
CH1:21.3~27.5V
Efficiency
85%
87%
Input voltage range
90~132VAC/180~264VAC(selected by switch)/255~370VDC
Frequency
47~63HZ
Input AC current
3.5A/115VAC,1.8A/230VAC
Inrush current
Cold-start current 30A/115VAC,50A/230VAC
Leakage current
< 2.5mA/240VAC
Over load protection
Rated output power 110%~150% start over load protection
Protection type:AC charging mode,hiccup mode,auto-revovery after fault condition is removed
Low-voltage battery protection
9.5~10.3V
19~20.6V
Protection mode: Cut off output
UPS Function Description
Long-term online floating charge of the battery, high charging efficiency, and the battery fullness can reach more than 90%;
Full stop, prevent battery overcharge, effectively extend battery life;
Automatic mains/battery switching, no switching time, no need to watch
With the cold start function, the UPS can be started directly with the battery to meet the emergency requirements of users when there is no mains supply
Working temp,humidity
-20℃~+60℃,20%~90%RH
