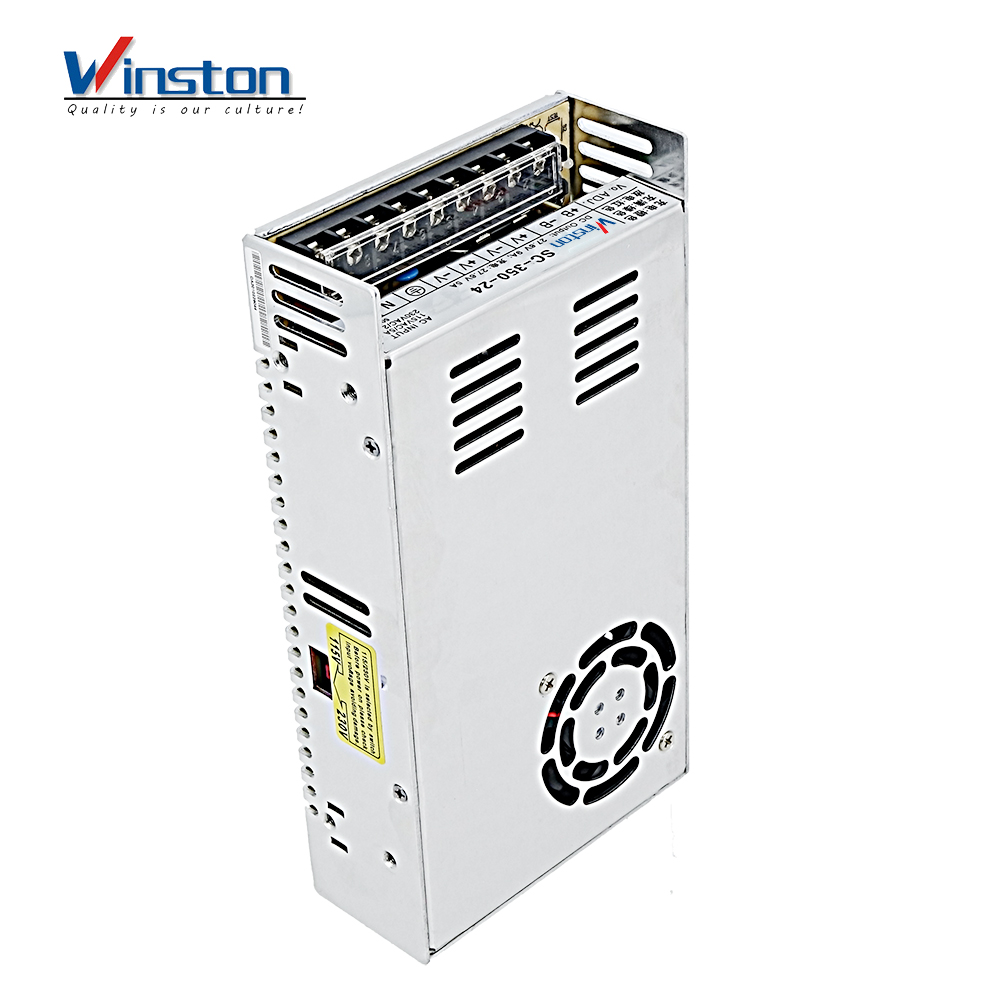

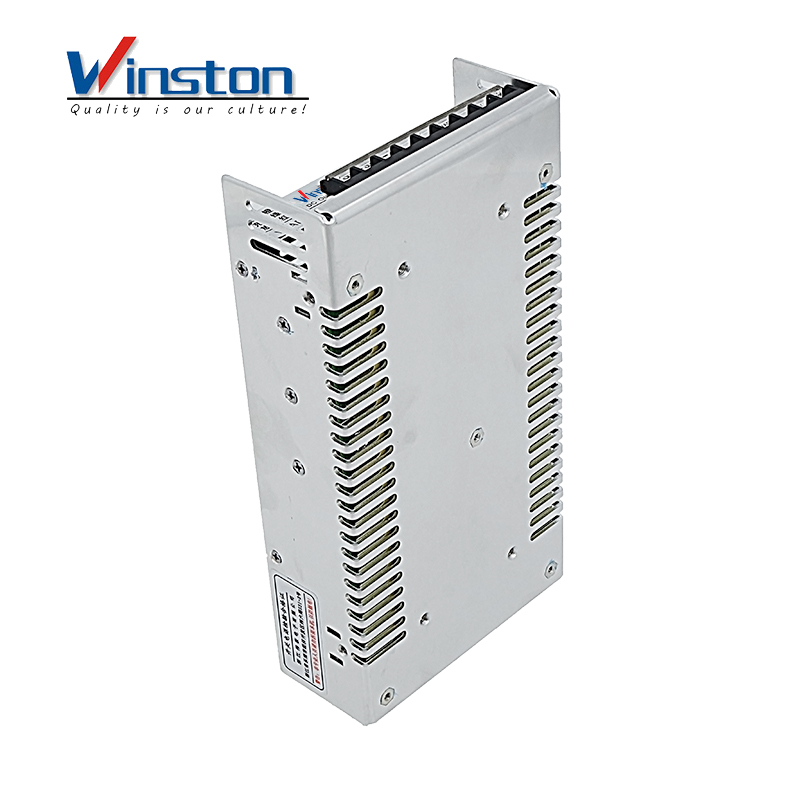

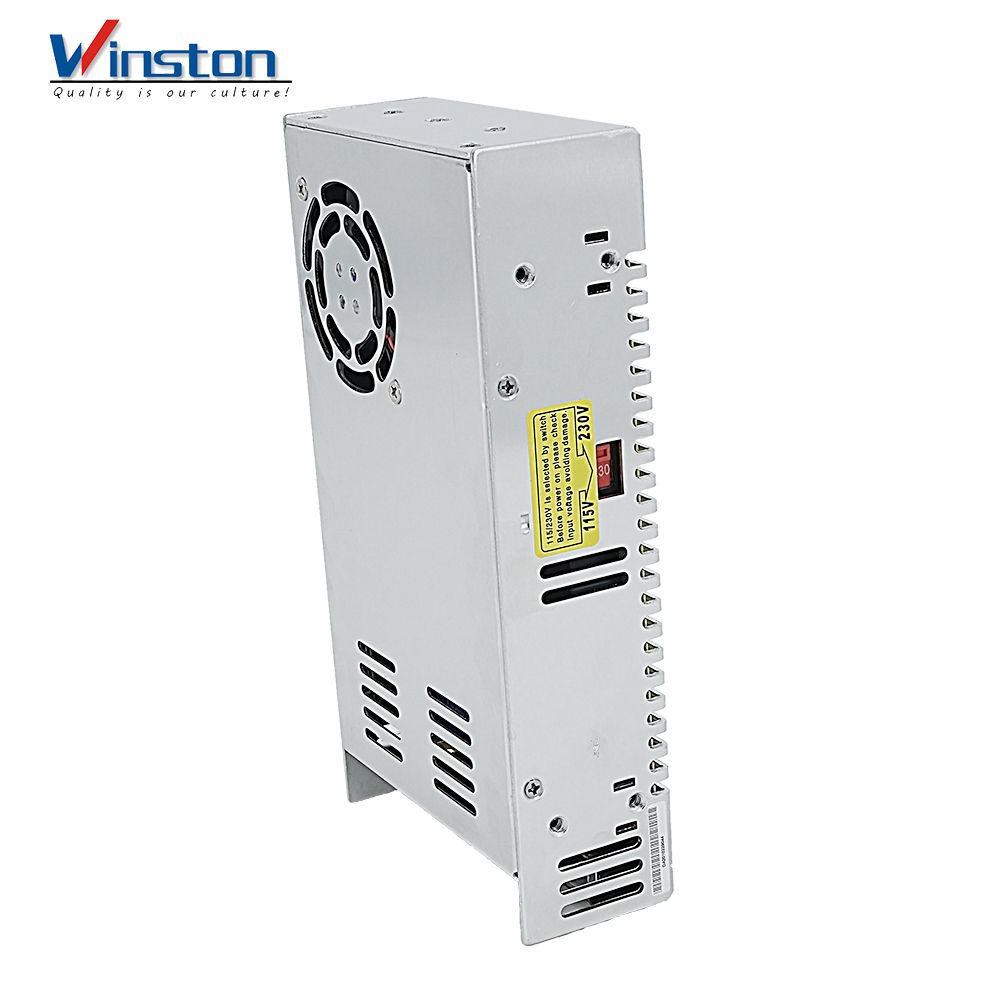

SC-350 Function Monitor Smps Switching Power Supply With Ups

SC-350 Function Monitor Smps Switching Power Supply With Ups
SC-350 Function Monitor Smps Switching Power Supply With Ups
SC-350 Function Monitor Smps Switching Power Supply With Ups
SC-350 Function Monitor Smps Switching Power Supply With Ups
SC-350 Function Monitor Smps Switching Power Supply With Ups

SC-350 Function Monitor Smps Switching Power Supply With Ups

Features
• Universal AC input/Full range
• Small volume,low weight high efficiency
• Protections: Short circuit / Overload
•100% full load burn-in test
• Indicator for power on/charge/normal(LED)
• Battery protection at low voltage
• 2 Years warranty
Technical parameter
Model
SC-350-12
SC-350-24
DC voltage
CH1:13.8V
CH1:13.4V
CH1:27.6V
CH2:26.5V
Rated current
21A
5A
9A
5A
Current range
0~21A
0~5A
0~9A
0~5A
Rated power
358W
386W
Ripple & noise
150mvp-p
150mvp-p
DC voltage ADJ.range
±10%,based on different battery charging requirements
Output Accuracy
±5%
±5%
Line Regulation
±0.5%
±1%
±0.5%
±1%
Load Regulation
±0.5%
±4%
±0.5%
±4%
Efficiency
82%
85%
Input voltage range
88~132VAC/176~264VAC(selected by switch)
Frequency
47~63HZ
Input AC current
6A/115VAC,3A/230VAC
Inrush current
Cold-start current 40A/230VAC
Leakage current
<0.5mA/240VAC
Over load protection
Rated output power 105%~150% start over load protection

Protection type:AC charging mode,hiccup mode,auto-revovery after fault condition is removed
Working temp,humidity
-20℃~+50℃,20%~90%RH
Storage temp,humidity
-20℃~+85℃,10%~90%RH Non-condensing
Withstand voltage
I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P:I/P-FG:O/P-FG:100M ohms/500VDC
