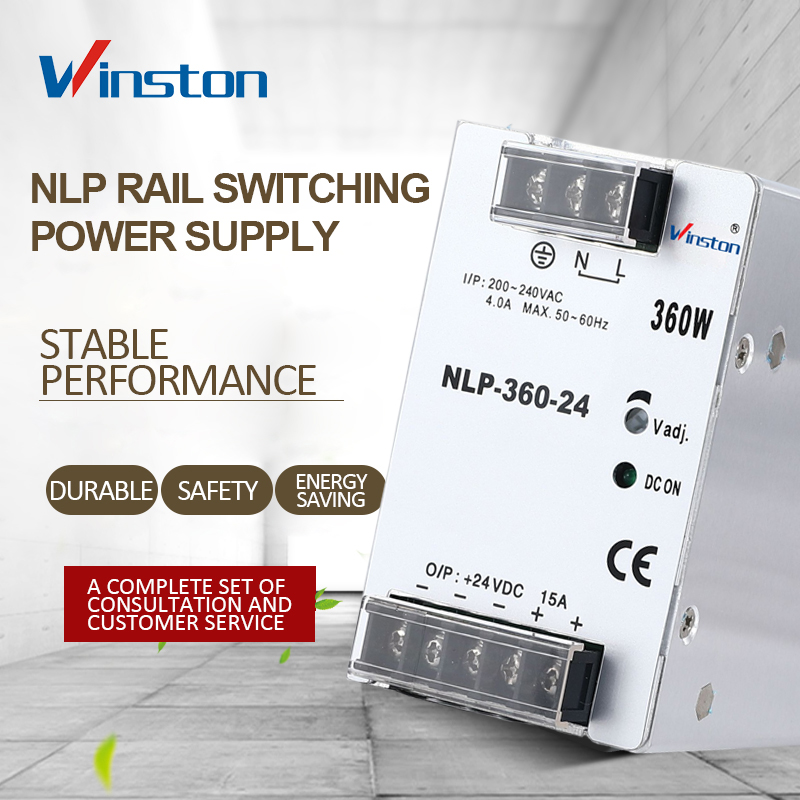

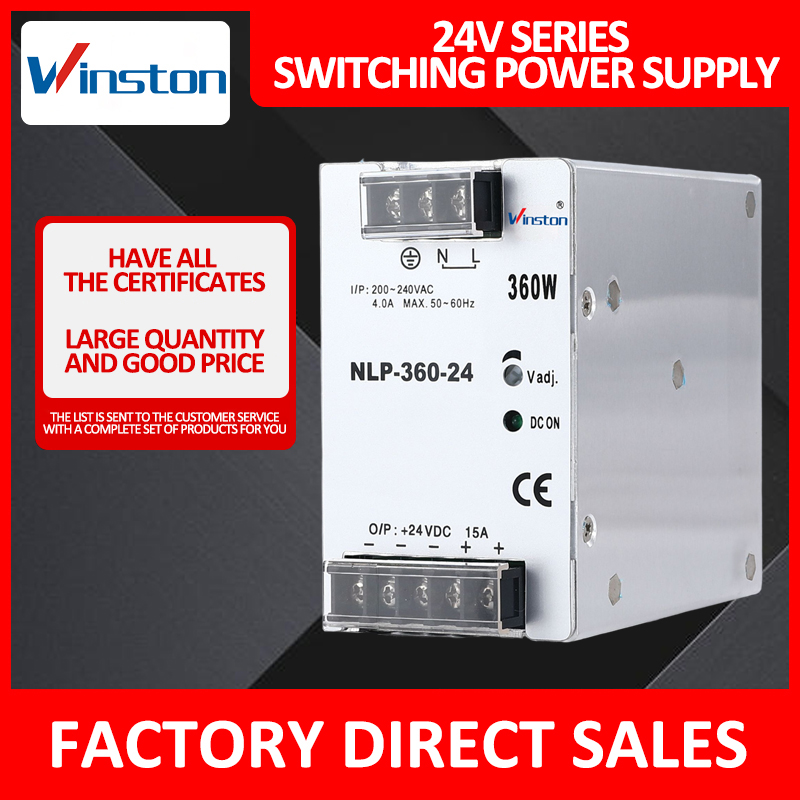

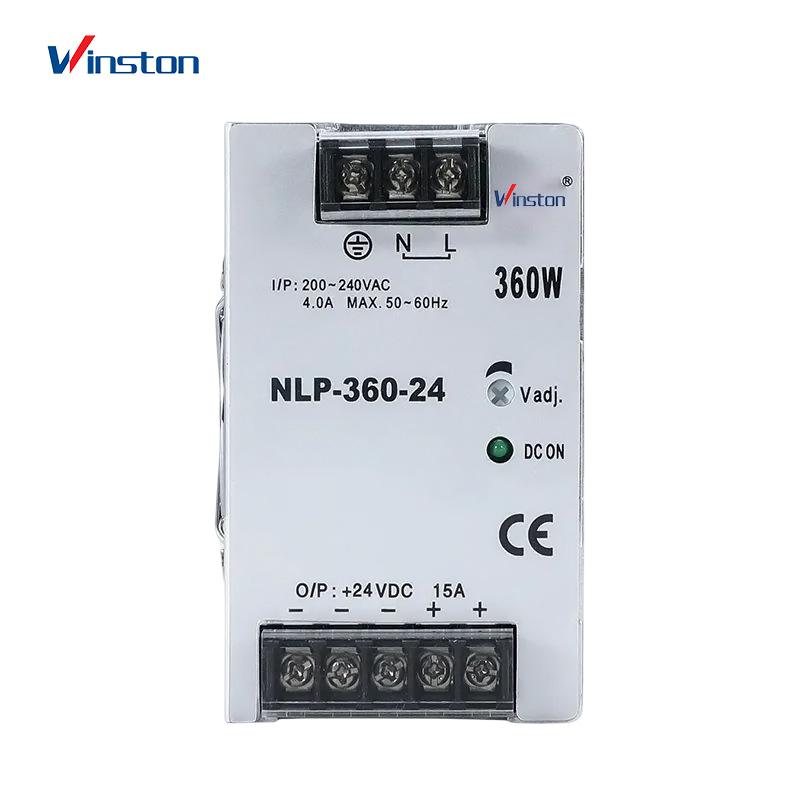

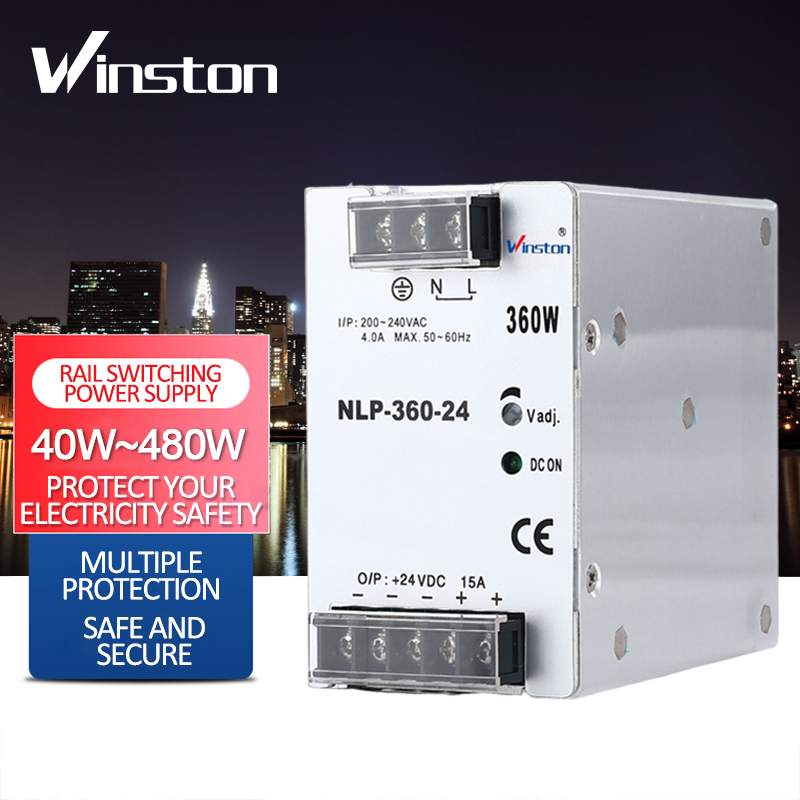

NLP-360 360W 24V 15A Intelligent Led DC SMPS

NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS
NLP-360 360W 24V 15A  Intelligent Led DC SMPS

NLP-360 360W 24V 15A  Intelligent Led DC SMPS



NLP详情页_01

Features



1.Protection charateristic:short circuit/overload/overvoltage

2.High efficiency,hihg reliability and long serive life.

3.Natural air cooling

4.100% full load burning test

5.LED power indication





Specifications

Model/Specification

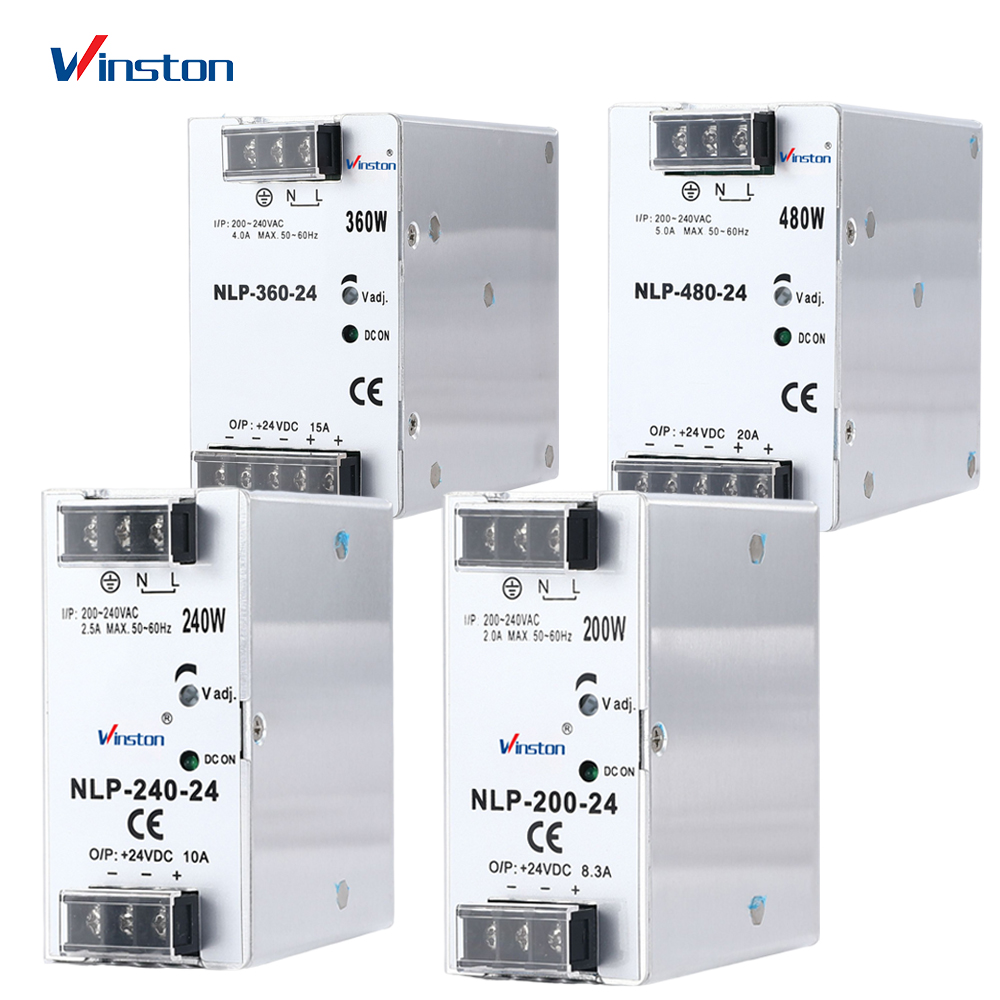

NLP-360-24

NLP-480-24

Output

DC Output Voltage

24V

24V

Output Voltage tolerance

±1%

±1%

Rated Output Current

15A

20A

Output current range

0-15A

0-20A

DC Output Power

360W

480W

Tripple and Noise

240mVp-p

300mVp-p

Adjustable Range for DC Voltage

20.5-26.5V

20.5-26.5V

Input

AC Input Voltage Range

180-264VAC 248-373VDC 47-63Hz

AC input current

4.8A/230VAC

Efficiency

86%

86%

AC Inrush Current

Cold-Start Current: 30A/230V

Leakage Current

<3.5mA/240VAC

Protection

Overload Protection

110%-150%



Protection mode: Overpower protection

Over Voltage Protection

27-30V



Protection mode: cut off output and reset automatically

Environment

Work Temperature Humidity

-10℃~+50℃,20%~90%RH

Storage Temperature Humidity

-20℃~+85℃,10%~95%RH

Shock resistance

10-500Hz, 2G 10min./1cycle.duration:60min each shaft

Safety

Voltage withstand capacity

I/P-O/P:2KVAC, I/P-FG:1.5KVAC ,O/P-FG:0.5KVAC

Insulation resistance

I/P-O/P, I/P-FG ,O/P-FG:100M Ohms/500VDC

Executive Standard

Safety Standards

CE

EMC Standards

......

Others

Weight

0.5KGS

Package

24pcs/ctn 38*30*28

Size

100*60*110(L*W*H)

Notes

1. All parameters except special situation, are measured under 230VAC voltage input and rated load at 25℃.

2. The ripple and noise voltage are measured in condition capacitance of 0.1 u and 47 u are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
