Model/Specification

NLP-75-12

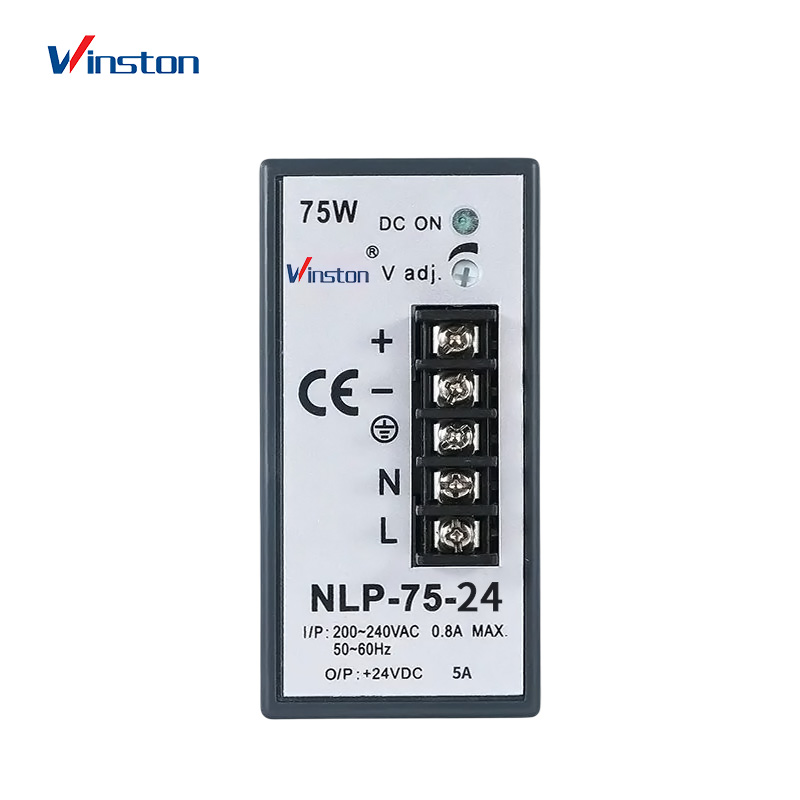

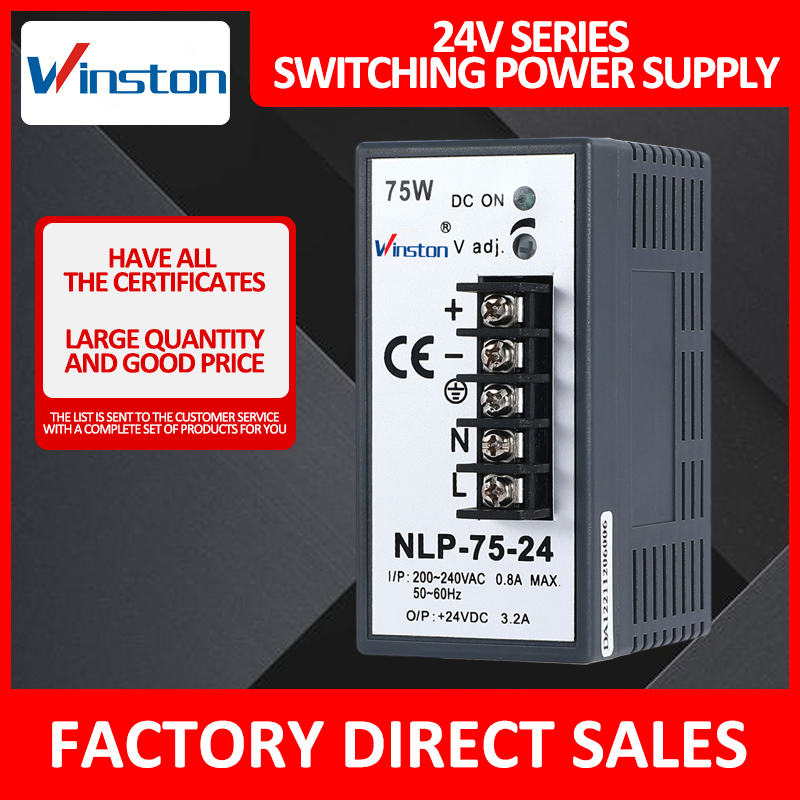

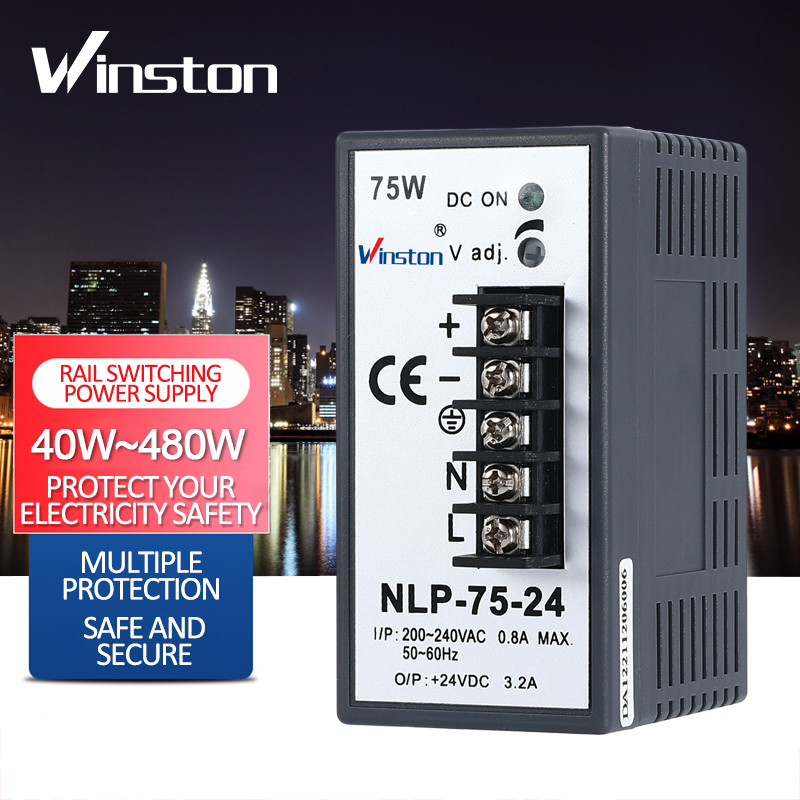

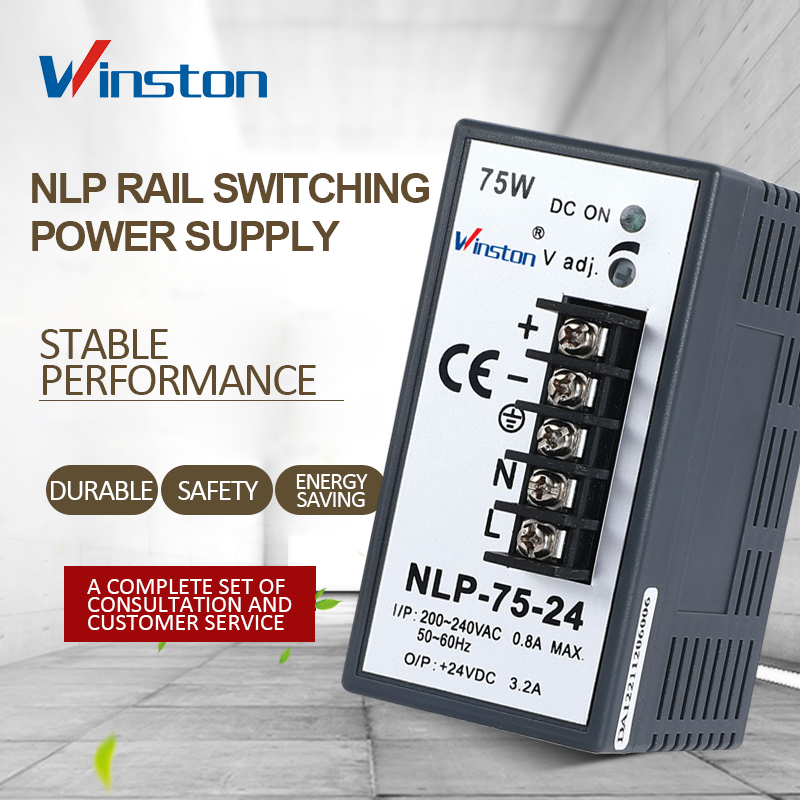

NLP-75-24

Output

DC Output Voltage

12V

24V

Output Voltage tolerance

±1%

±1%

Rated Output Current

5A

3A

Output current range

0-5A

0-3A

DC Output Power

60W

75W

Tripple and Noise

120mVp-p

240mVp-p

Adjustable Range for DC Voltage

11.4-13.2V

20.5-26.5V

Input

AC Input Voltage Range

180-264VAC 200-380VDC 47-63Hz

AC input current

0.9A/230VAC

Efficiency

85%

87%

AC Inrush Current

Cold-Start Current: 36A/230V

Leakage Current

＜3.5mA/240VAC

Protection

Overload Protection

110%-150%

Protection mode: cut off output and restart

Over Voltage Protection

13.8-16.2V

27-30V

Protection mode: cut off output and reset automatically

Environment

Work Temperature Humidity

-10℃~+50℃，20%~90%RH

Storage Temperature Humidity

-20℃~+85℃，10%~95%RH

Shock resistance

10-500Hz, 2G 10min./1cycle.duration:60min each shaft

Safety

Voltage withstand capacity

I/P-O/P:2KVAC, I/P-FG:1.5KVAC ,O/P-FG:0.5KVAC

Insulation resistance

I/P-O/P, I/P-FG ,O/P-FG:100M Ohms/500VDC

Executive Standard

Safety Standards

CE

EMC Standards

......

Others

Weight

0.2KGS

Package

60pcs/ctn 38.5*32*28

Size

75.5*45*102(L*W*H)

Notes

2. The ripple and noise voltage are measured in condition capacitance of 0.1 u and 47 u are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
