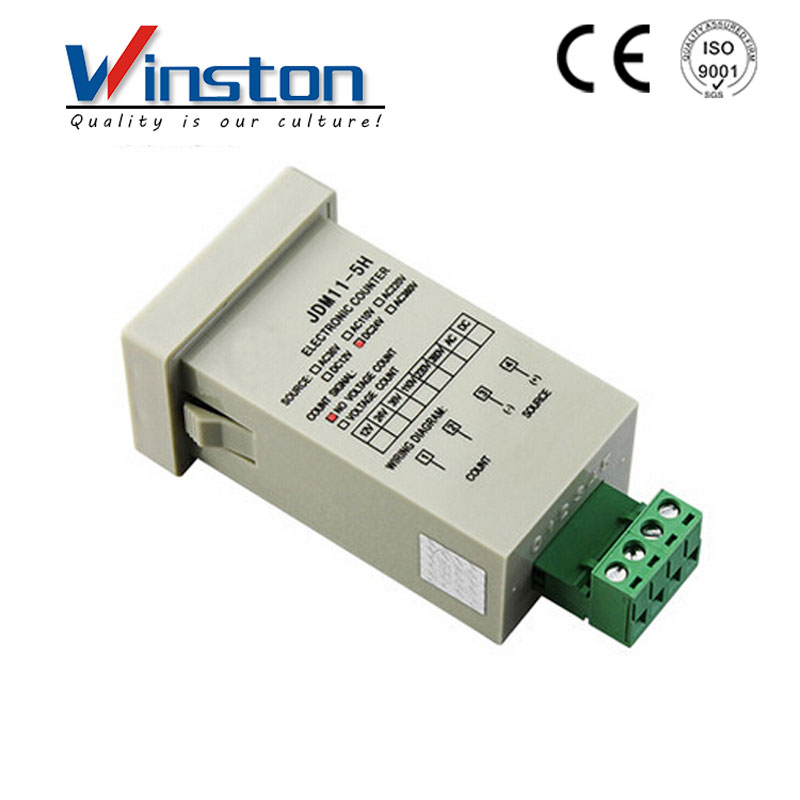

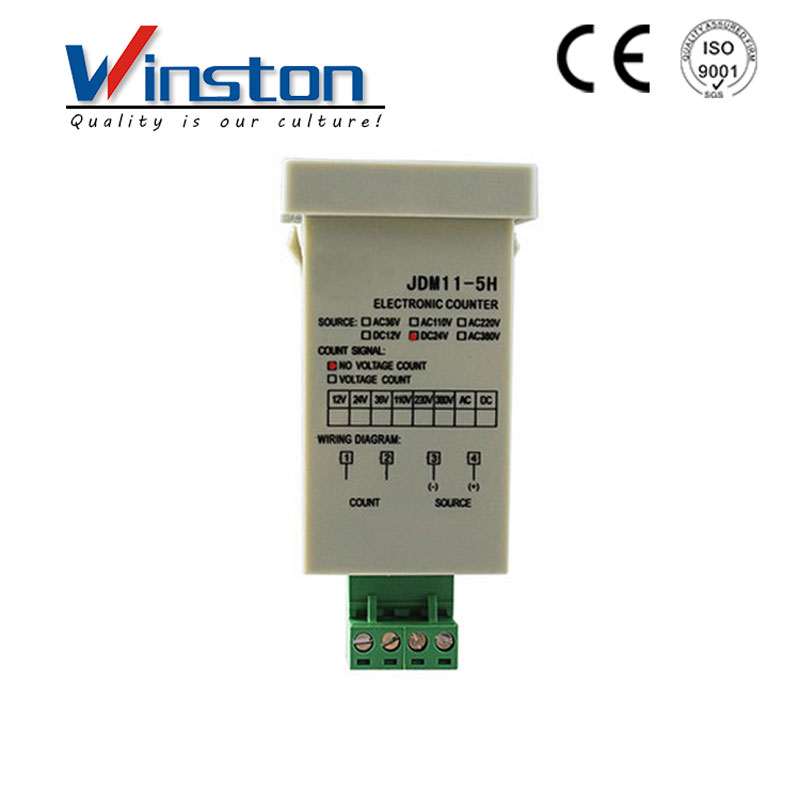

JDM11-5H LED Digital 4Pin Electronic Counter
Principle
JDM11-5H type electronic counter is widely used in the production flow counting, counting and automatic packing machine, stamping speed, length, counting the number of all need to count the occasion, and can be used for the two instrument display instrument.
Technical data
|
Count digit |
Five bit, six bit |
|
Count range |
0-99999,0-999999 |
|
Size |
45*35*96mm |
|
Rated working voltage |
DC6.3V,12V,24V,AC24V,48V,110V,220V |
|
Counting speed |
10 times/sec and 1000 times/sec |
|
Operating voltage range |
85%-110% |
|
Power supply |
≤2W |
|
After losing electricity |
Existing data for 10 years |
|
Count input mode |
1: voltage input type 2: no voltage input type |
Application
JDM11-5H counter has the characteristics of visual, simple operation, easy to use, strong anti-interference ability and so on. Can be widely used in chemical industry, food, textile, printing, electronics, machinery and other industries.

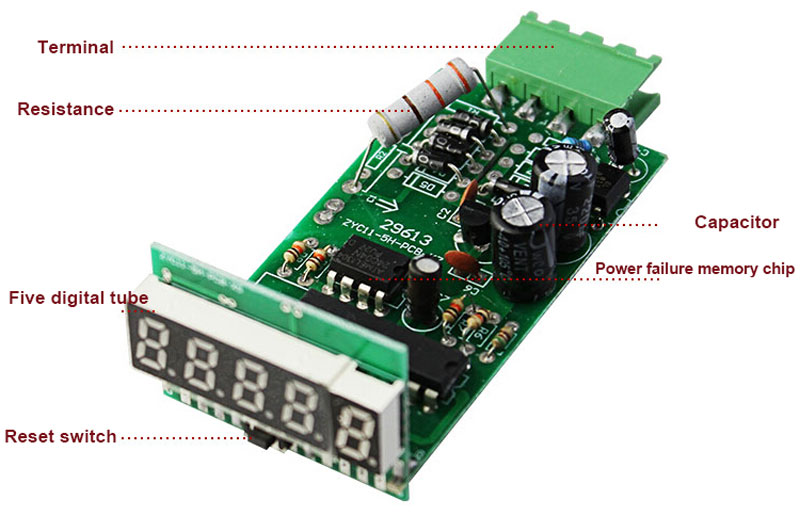

Internal structure
Technical Data Sheet
|
Model |
JDM11-5H 4Pin |
|
Counter range |
0-99999 |
|
Voltage |
AC220V,AC110V,AC36V ,DC24V,DC12V,Custom |
|
Voltage fluctuation range |
85%~110% |
|
Counter speed |
20times/s |
|
Indication error |
<1*0.00001 |
|
Use environment |
-20°C~50°C Relative humidity≤85% |
|
Power |
≤2W |
|
Lost power |
Data can be save for 10years |
|
Counter input type |
NPN proximity switch or photoelectric switch |

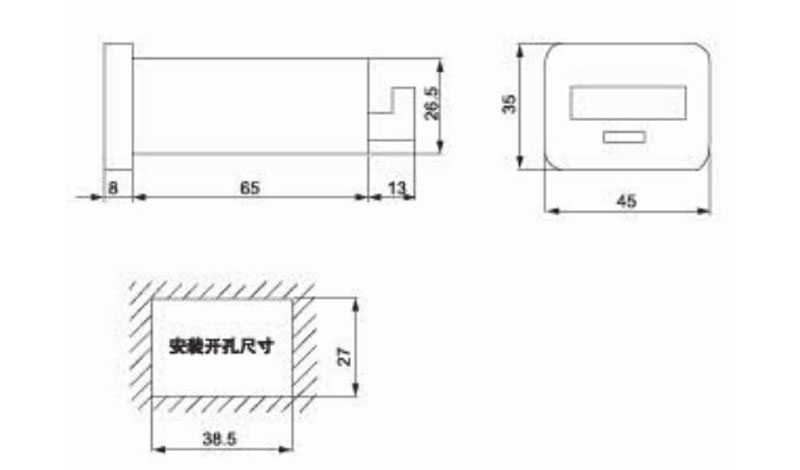

Outline dimension
