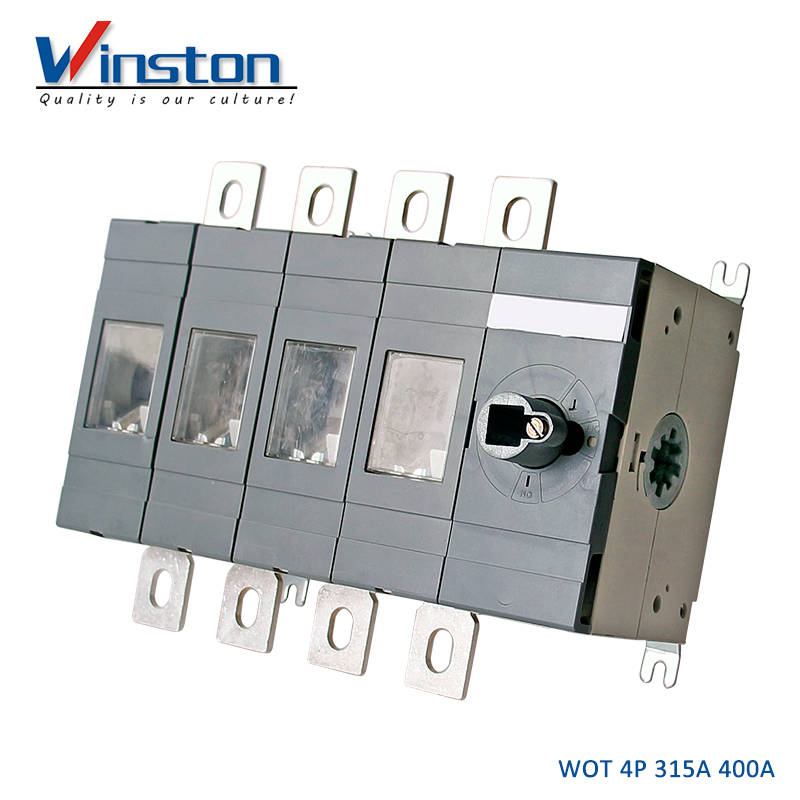

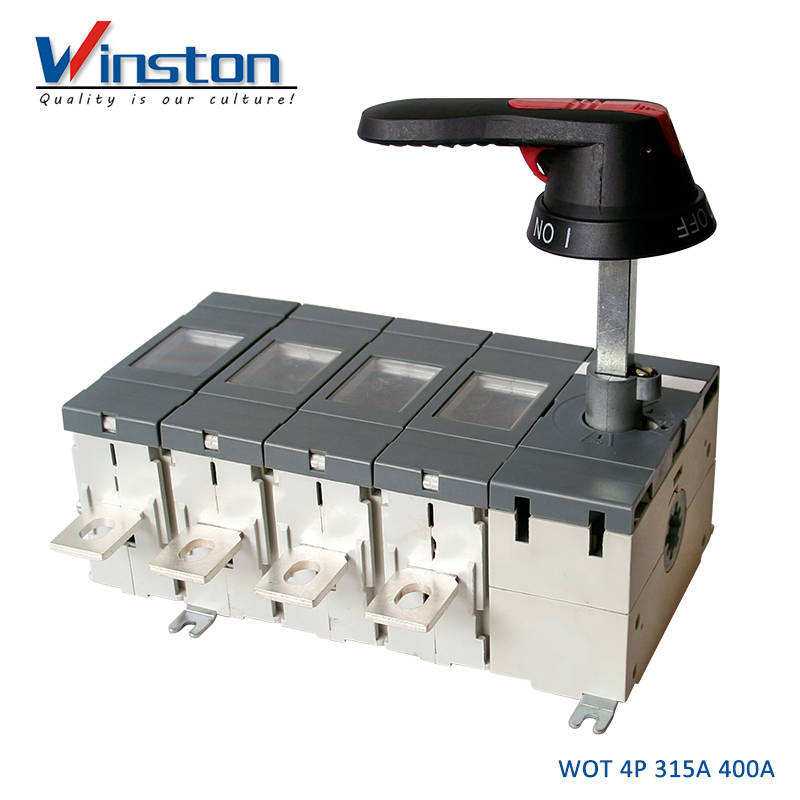

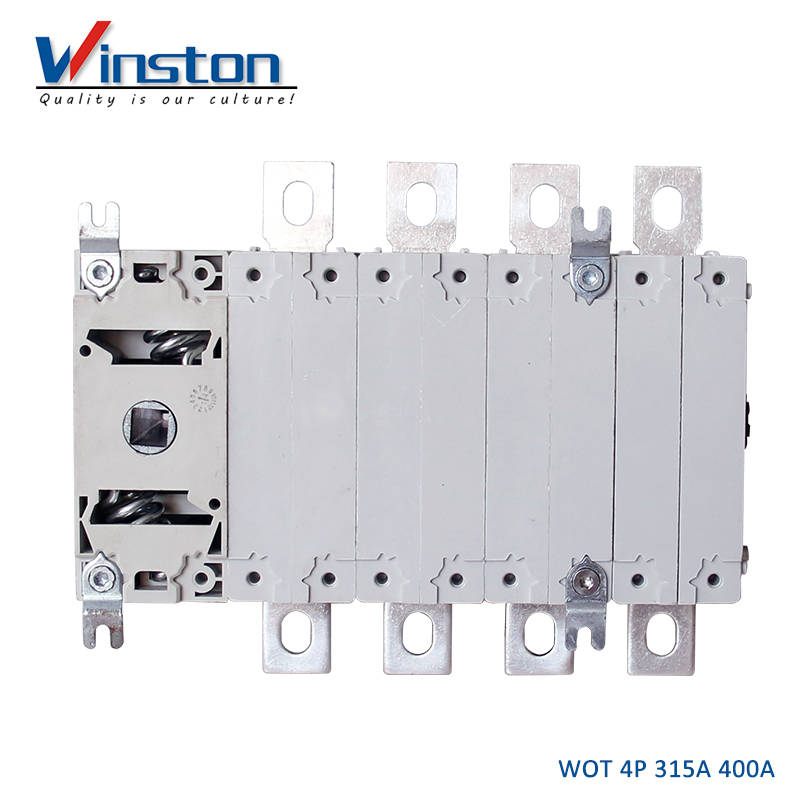

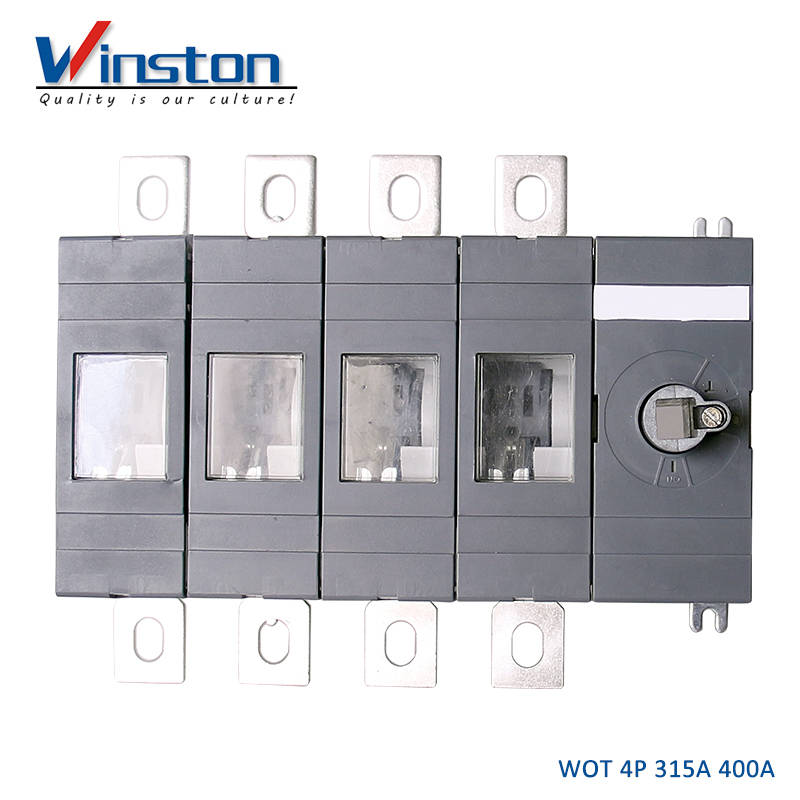

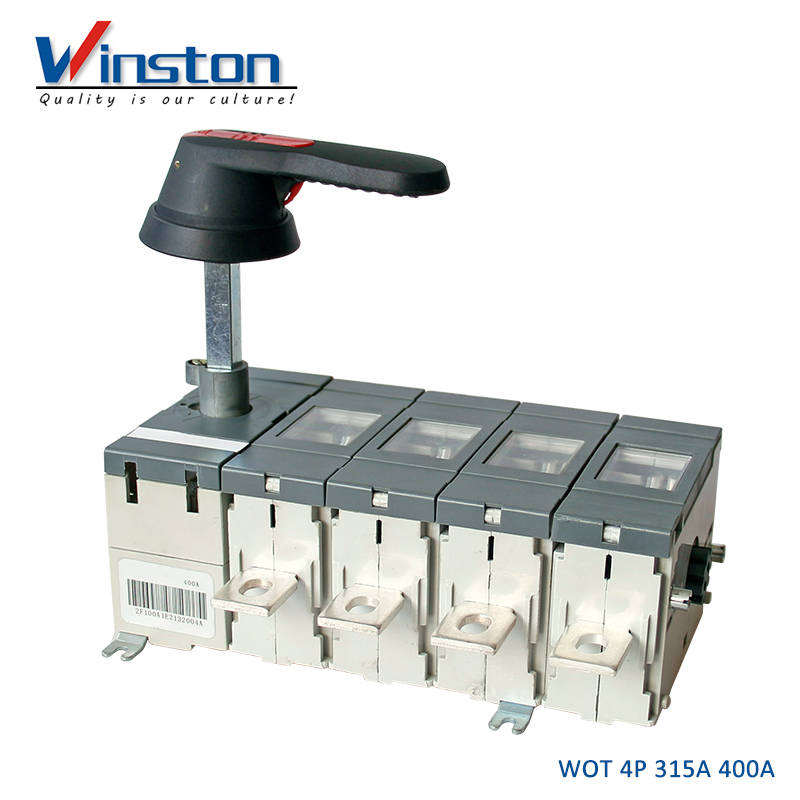

* Load isolating switches are widely applied to distribution system and automation system in building, power, petrochemical and other industries.

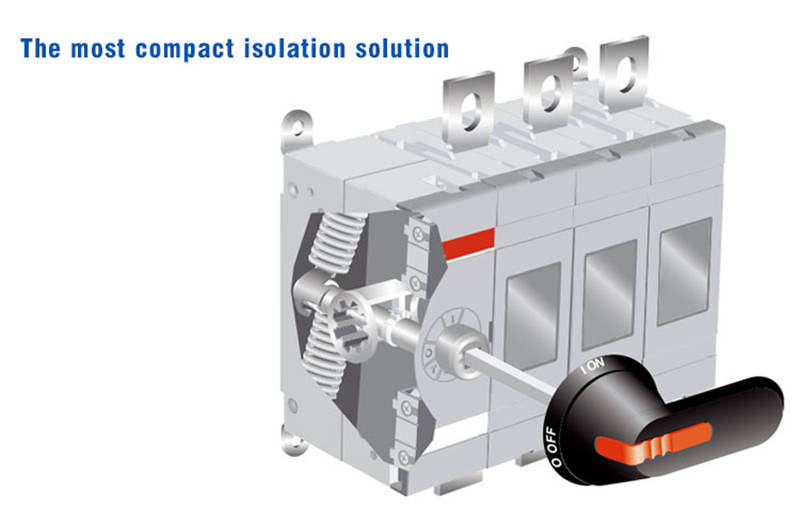

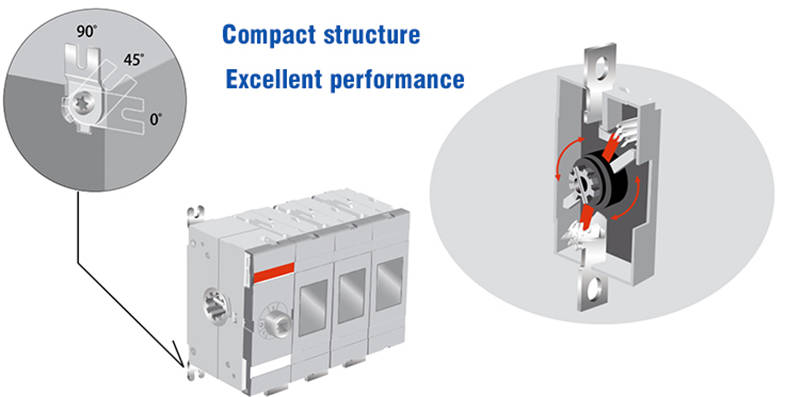

* The acceleration mechanism with instantaneous release of spring storage achieves fast connection or separation, which has nothing to do with the speed of operation handle, and greatly improves the ability of extinguishing arc.
* The shell made of glass fiber reinforced unsaturated polyester resin has good flame retardancy, dielectric properties, carbonization resistance and impact resistance.
* The parallel double breakpoint contact has self cleaning effect.
* All contact materials are copper plated silver alloy with two separate contact surfaces.
* The distance is large.
* In the "O" position, you can use three locks to lock the handle at the same time, and reliably avoid misoperation.
* The switch is beautiful, novel and concise, with small volume and complete function.
|

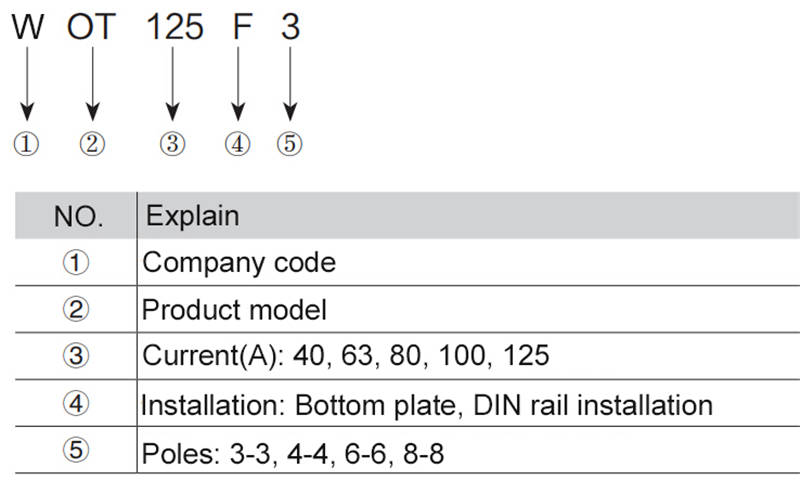

Model |
|
|
WOT315F |
WOT400F |
|
Rated insulation voltage and raged operational voltage AC20/DC20. Dielectric strength. Rated impulse withstand voltage. |
Pollution degree 3 50Hz 1min. |
V KV KV |
1000 10 12 |
1000 10 12 |
|
Rated thermal current and rated operational current AC20/DC20 ...with minimum conductor cross section |
Free air. Closed environmen. Cu. |
A A mm² |
315 315 185 |
400 400 240 |
|
Rated operational current, AC-21A |
≤500V 690V 1000V |
A A A |
315 315 315 |
400 400 400 |
|
Rated operational current, AC-22A |
≤500V 690V 1000V |
A A A |
315 315 315 |
400 400 400 |
|
Rated operational current, AC-23A |
≤500V 690V 1000V |
A A A |
315 315 200 |
400 400 200 |
|
Rated operational current/ poles in series, DC-21A...23A |
24...110V 220V 440V 660V |
A A A A
|
315/1 315/2 315/3 315/4 |
400/1 400/2 360/3 360/4 |
|
Rated operational current/ poles in series, DC-21B |
800V 1000V |
A A
|
315/5 315/6 |
400/5 400/6 |
|
Rated operational power, AC-23A |
230V 400V 415V 500V 690V |
KW KW KW KW KW |
100 160 180 220 315 |
122 220 230 280 400 |
|
Rated breaking capacity, AC-23A |
≤500V 690V |
A A |
2520 2520 |
3200 3200 |
|
Rated conditional short-circuit current Ip (R.M.S) and corresponding max.allowed cut-off current îc. The cut-off currentîc refers to values listed by fuse manufacturers (single phase test acc.to IEC60269) |
100KA, 500V gG/aM |
KA A |
61.5 500/450 |
61.5 500/450 |
|
80KA, 690V gG/aM |
KA A |
59 500/500 |
59 500/500 |
|
|
Rated short-time withstand current(R.M.S)lcw |
≤1000V, 0.15s ≤1000V, 0.25s ≤1000V, 1s |
KA KA KA |
31 24 15 |
31 24 15 |
|
Rated short circuit making capacity |
≤1000V |
KA |
65 |
65 |
|
Rated capacitor power (the capacitor ratings are limited by the fuse link.) |
415V 500V 690V |
kVAr kVAr kVAr |
145 175 250 |
180 215 325 |
|
Power loss/pole |
At rated operational current |
W |
6.5 |
10 |
|
Mechanical endurance |
|
Oper |
16000 |
16000 |
|
Weight without accessories |
3P switch |
kg |
2.2 |
2.2 |
|

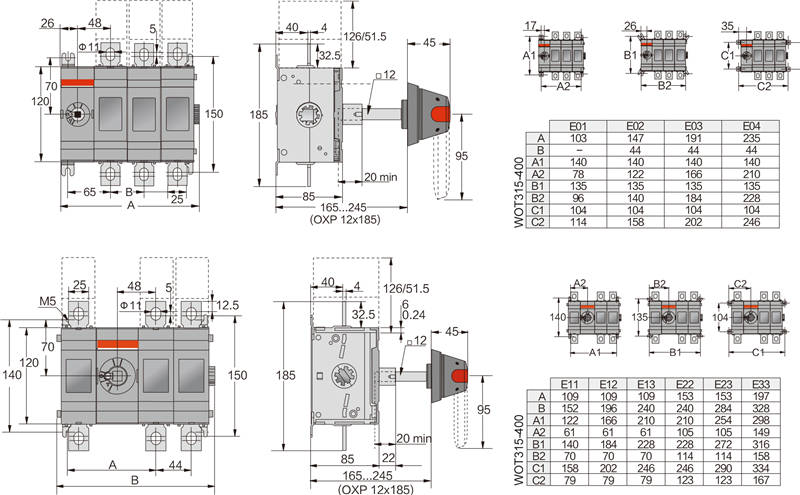

Terminal screw specifications Terminal tightening torque Operating torque |
Metric thread (diameter*length). Locking torque requirements. 3-pole isolation switch. |
mm Nm Nm |
M10/30 30-44 16 |
M10/30 30-44 16 |

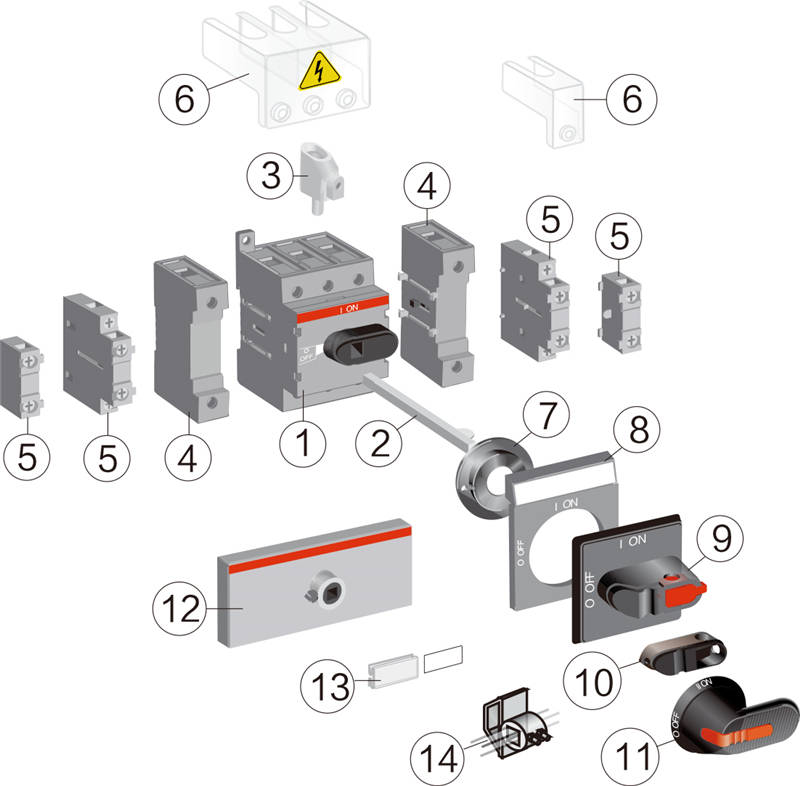

Attachment overview
