Compact size
Wide voltage range

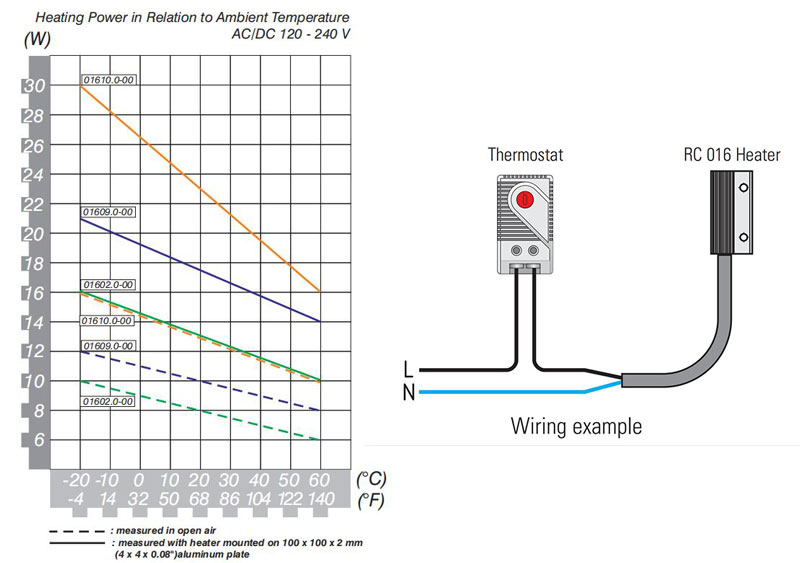

Heating power adjusts to ambient temperature
Energy saving

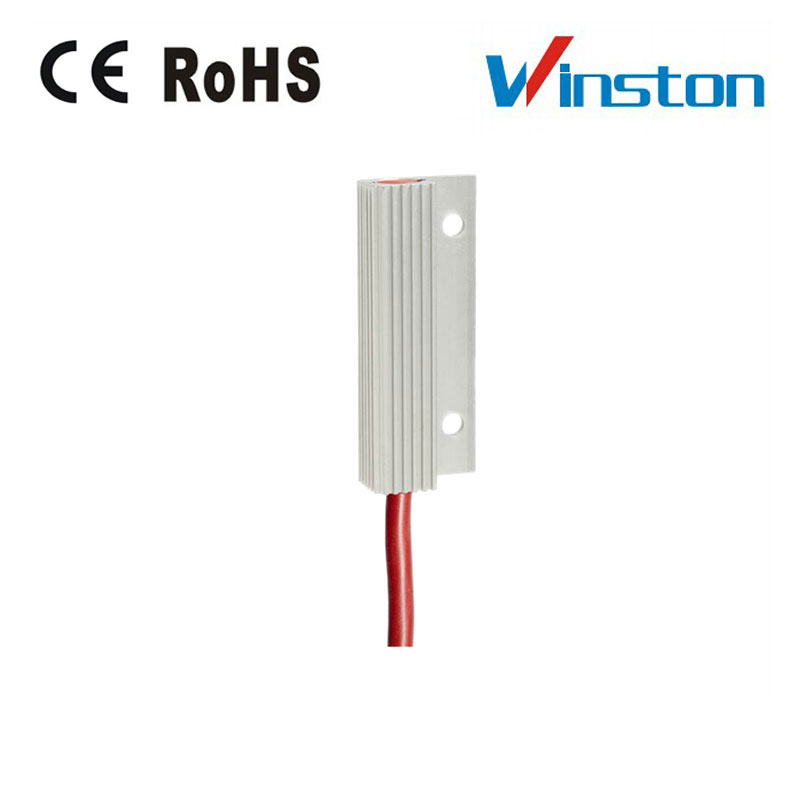

The RC 016 small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.
Technical Data
| 0perating voltage | see table below |
| Heating element | PTC resistor - temperature limiting |
| Heater body | aluminum, anodized |
| lnsulation | PTFE / Kapton |
| Mounting | screw (mounting screws not included) |
| Mounting position | variable |
| perating / Storage temperature | -49 to +158 °F(-45 to +70°C) |
| Protection class | II (double insulated) |
| Protection type | IP54 |

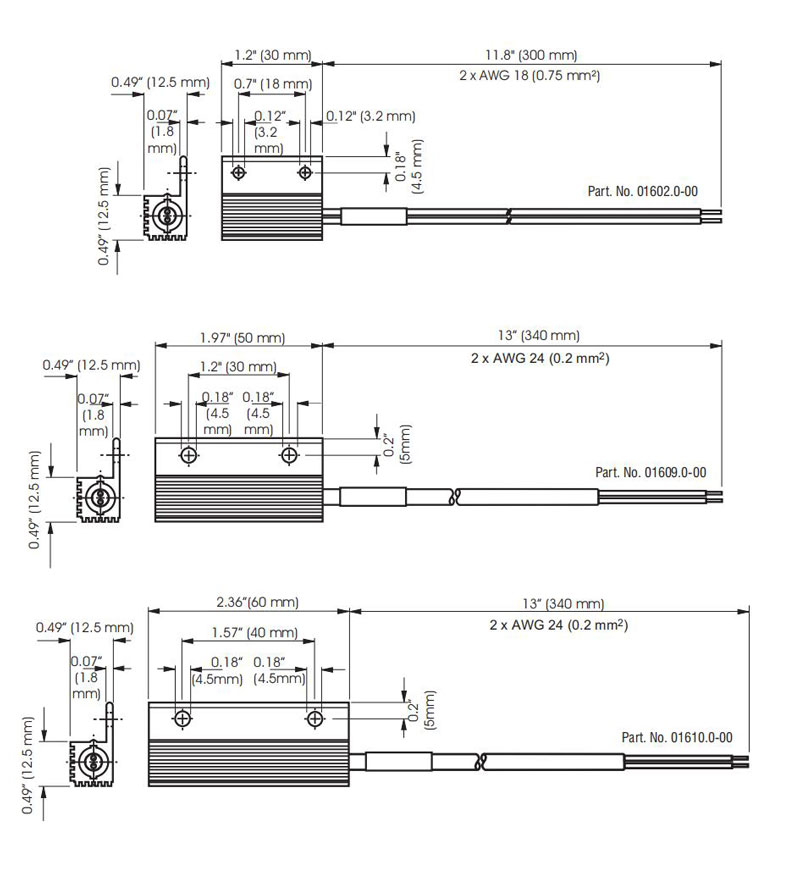

| Part No. | Heating capacity1) | Operating voltage2) | Max. current (inrush) | Surface temperature (approx.)1) | Weight (approx.) |
| 01602.0-00 | 8 W | AC/DC 120-240 V | 2.0A | 302°F(150°C) | 0.7 oz.(20 g) |
| 01602.0-03 | 8 W | AC/DC 12-30 V | 3.7A | 273°F(134°C) | 0.7 oz.(20 g) |
| 01609.0-00 | 10 W | AC/DC 120-240 V | 2.5A | 311°F(155°C) | 1.0 oz.(28 g) |
| 01609.0-01 | 10 W | AC/DC 12-30 V | 5.7A | 270°F(132°C) | 1.0 oz.(28 g) |
| 01610.0-00 | 13 W | AC/DC 120-240 V | 3.0A | 338°F(170°C) | 1.2 oz.(34 g) |
| 01610.0-01 | 13 W | AC/DC 12-30V | 10.0A | 298°F(148°C) | 1.2 oz.(34 g) |
1) at 68°F (20°C) ambient temperature
2) operating high voltage heaters below AC/DC 140V reduces heating performance by approx. 10% (min. 110V, max 265V).
