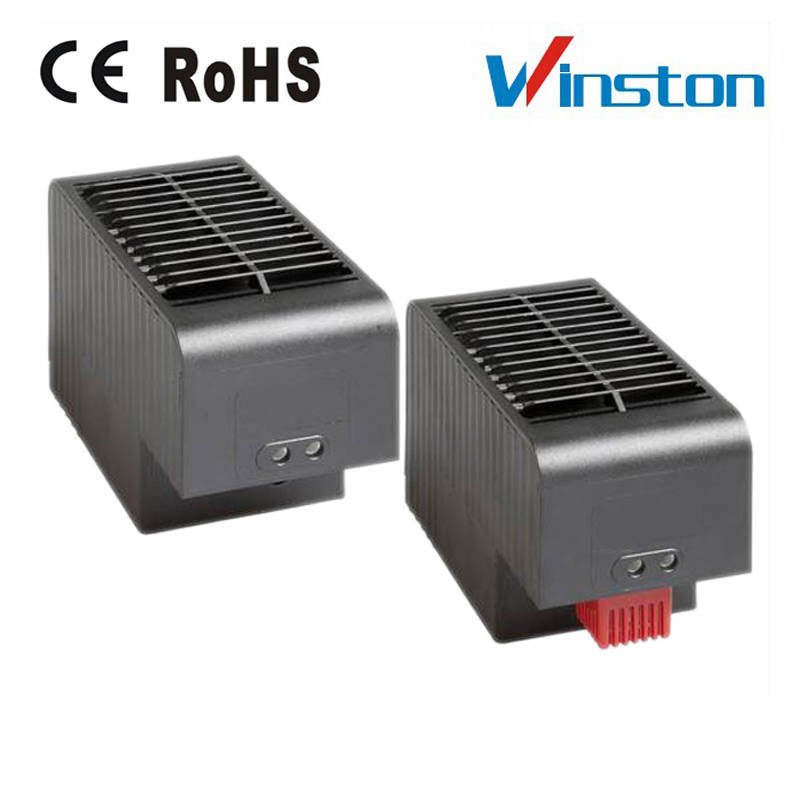

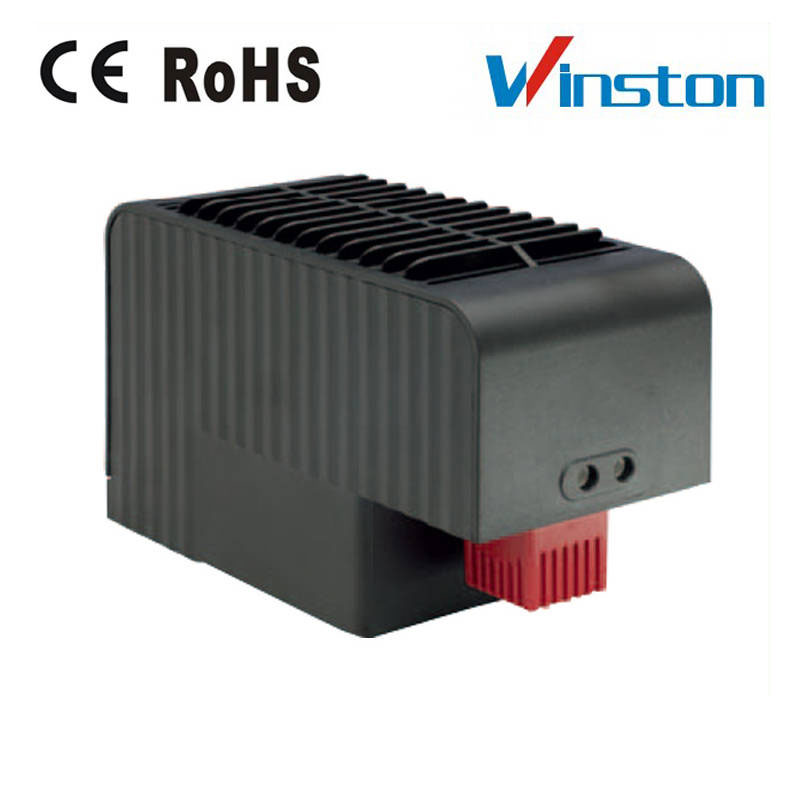

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat. The CSF 032 is equipped with a pre-set thermostat. Both models were designed for wall fixing. A fan heater for fixing on the bottom of the enclosure is available on request.
Technical Data
|
Heating element |
PTC resistor - temperature limiting |
|
Surface temperature |
max. +80°C (+176°F), except upper protective grille |
|
|
at +20°C (+68°F) ambient temperature |
|
Temperature safety cut-out |
to protect against overheating in case of fan failure, |
|
|
automatic reset |
|
Axial fan, ball bearing |
air flow 63m³/h, free flow |
|
|
service life 70,000h at +25°C (+77°F) |
|
Connection |
male power insert connector according to IEC320 C18 |
|
Fuse |
10A time lag (T) integrated in connector - exchangeable |
|
Casing |
plastic according to UL94 V-0, black |
|
Mounting |
clip for 35mm DIN rail, EN 60715 or |
|
|
screw fixing (M5), tightening torque 2Nm max. |
|
Fitting position |
airflow direction up |
|
Dimensions |
152.5 x 88 x 66mm |
|
Weight |
approx. 0.5kg |
|
Operation/Storage temperature |
-40 to +60°C (-40 to +140°F) / -40 to +70°C (-40 to +158°F) |
|
Operation/Storage humidity |
max. 90% RH (non-condensing) |
|
Protection type/Protection class |
IP20 / II (double insulated) |
|
Approvals |
|
Important note: Connectors and cables for electrical connection are not included in the delivery. Connection cables can be ordered separately, see Accessories.
Fan heater CS 032 (without thermostat)
|
Art. No. Clip fixing |
Art. No. Screw fixing |
Operating voltage |
Heating capacity¹ |
Inrush current max. |
|
03209.0-00 |
03209.0-01 |
220-240VAC, 50/60Hz |
1,000W |
12A |
|
03209.9-00 |
03209.9-01 |
100-120VAC, 50/60Hz |
1,000W |
18A |
Fan heater CSF 032 (with thermostat)
|
Art. No. Clip fixing |
Art. No. Screw fixing |
Operating voltage |
Heating capacity¹ |
Inrush current max. |
Switch-off temperature² |
Switch-on temperature² |
|
03201.0-00 |
03201.0-01 |
220-240VAC, 50/60Hz |
1,000W |
12A |
+25°C (+77°F) |
+15°C (+59°F) |
|
03202.0-00 |
03202.0-01 |
220-240VAC, 50/60Hz |
1,000W |
12A |
+15°C (+59°F) |
+5°C (+41°F) |
|
03201.9-00 |
03201.9-01 |
100-120VAC, 50/60Hz |
1,000W |
18A |
+25°C (+77°F) |
+15°C (+59°F) |
|
03202.9-00 |
03202.9-01 |
100-120VAC, 50/60Hz |
1,000W |
18A |
+15°C (+59°F) |
+5°C (+41°F) |
¹ at +25°C (+77°F) ambient temperature; ² tolerance ±5K
Accessories
Connection cable with female power insert connector according IEC320 C17
|
Art. No. |
Length (L) |
|
244379 |
1.0m |
|
244380 |
2.0m |
Retaining Clip
|
Art. No. |
Note |
|
237009 |
Suitable for female power insert connector on connection cable 244379 and 244380 |

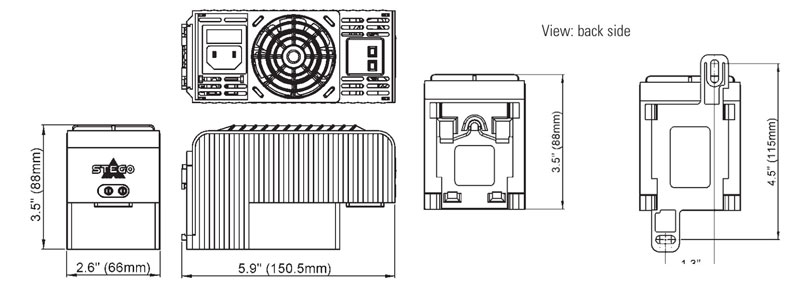

Technical drawing

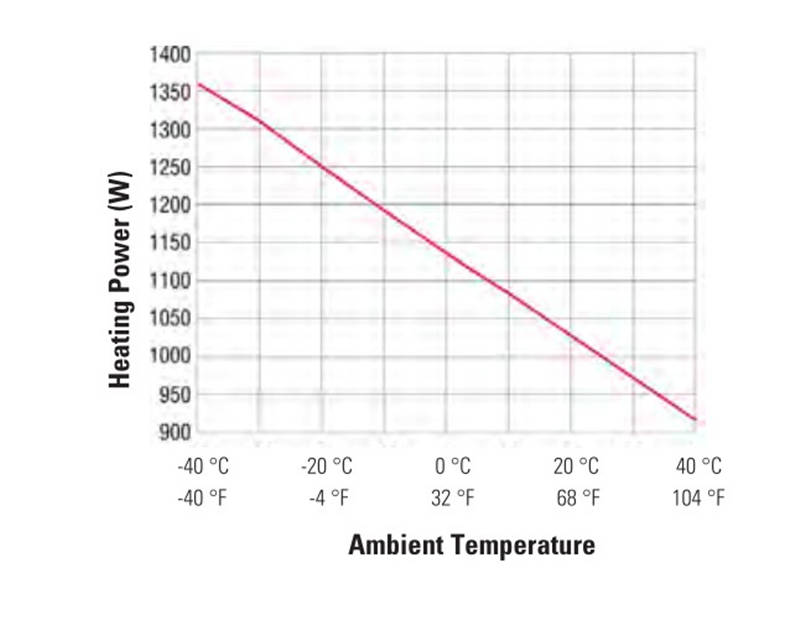

High-performance Fan Heater CS 032 / CSF 032 Series
