CSL 028 Small Compact Semiconductor Fan Heater 150W,250W,400W
● Small, compact design
● Quiet in operation
● Dynamic heating up
● Clip or screw fixing
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
The heater is connected using the internal terminal connectors The small size of the CS/CSL 028 makes it ideal for use in enclosures where space is at a premium.
Technical Data
|
Heating element |
PTC heating element |
|
Inrush current max. |
2A at 230VAC , 5A at 120VAC |
|
Surface temperature |
Max.65°C(149°F) |
|
Axial fan, ball bearing |
air flow 13.8m³/h, free flow(service life 40,000h at 40°C |
|

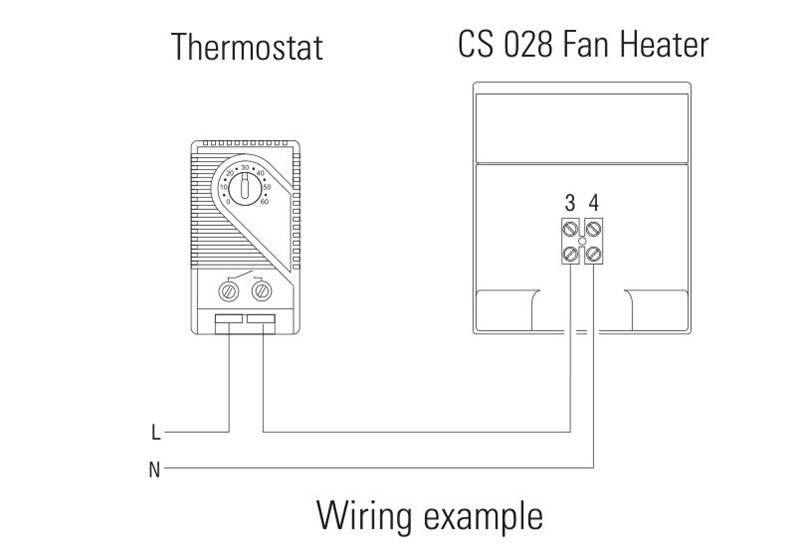

Connection |
2-pole clamp max. 2.5mm² (CSL 028 with strain relief), clamping screw torque 0.8Nm max. |
|
Casing |
plastic according to UL94-0, black |
|
Mounting |
clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) |
|
Fitting position |
vertical airflow (air outlet up) |
|
Weight |
approx.0.3kg |
|
Operating / Storage temperature |
-45 to +70°C (-49 to +158°F) |
|
Protection type / Protection class |
IP20 / II (double insulated) |
|
Note |
other voltages on request |
|
Art. No. clip fixing |
Art. No. screw fixing |
Operating voltage |
Heating capacity |
Inrush current max. |
Pre-fuse T (time-delay) |

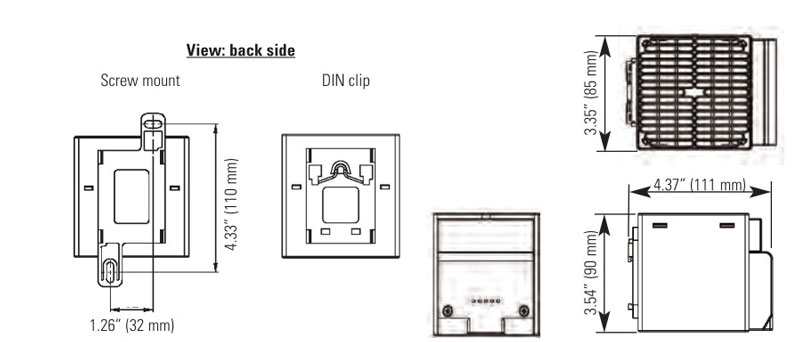

Dimensions |
Weight (approx.) |
|
02800.0-00 |
02800.0-01 |
230VAC, 50/60Hz |
150W |
12A |
6.3A |
90 x 85 x 111mm |
0.5kg |
|
02811.0-00 |
02811.0-01 |
230VAC, 50/60Hz |
250W |
9A |
6.3A |
90 x 85 x 111mm |
0.5kg |
|
02810.0-00 |
02810.0-01 |
230VAC, 50/60Hz |
400W |
15A |
10A |
90 x 85 x 111mm |
0.5kg |
|
02800.9-00 |
02800.9-01 |
120VAC, 50/60Hz |
150W |
6A |
6.3A |

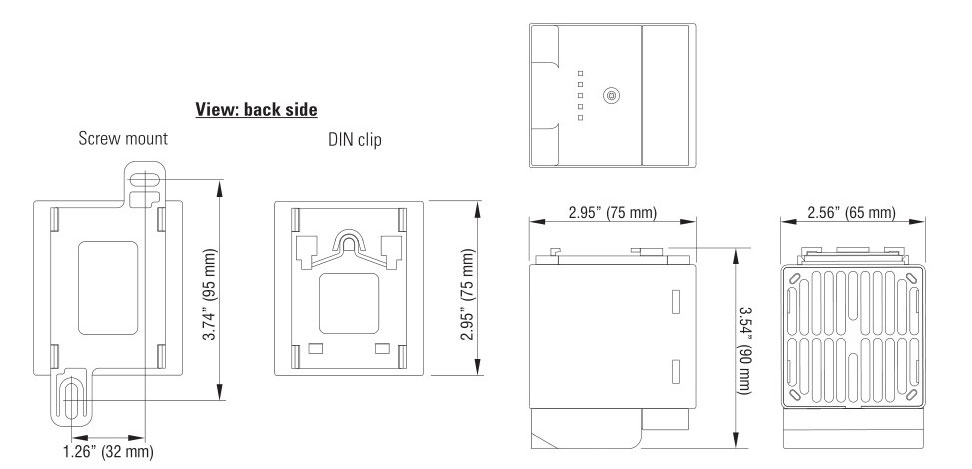

75 x 65 x 90mm |
0.5kg |
|
02811.9-00 |
02811.9-01 |
120VAC, 50/60Hz |
250W |
6A |
6.3A |
90 x 85 x 111mm |
0.5kg |
|
02810.9-00 |
02810.9-01 |
120VAC, 50/60Hz |
400W |
9A |
6.3A |
90 x 85 x 111mm |
0.5kg |

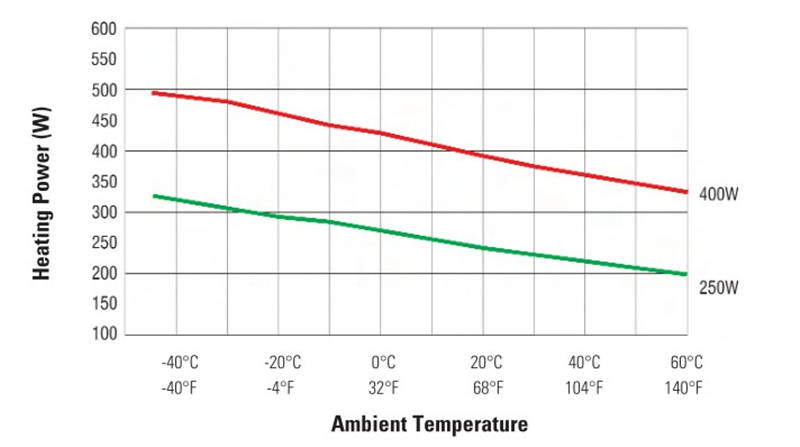

*at 20°C (68°F) ambient temperature
