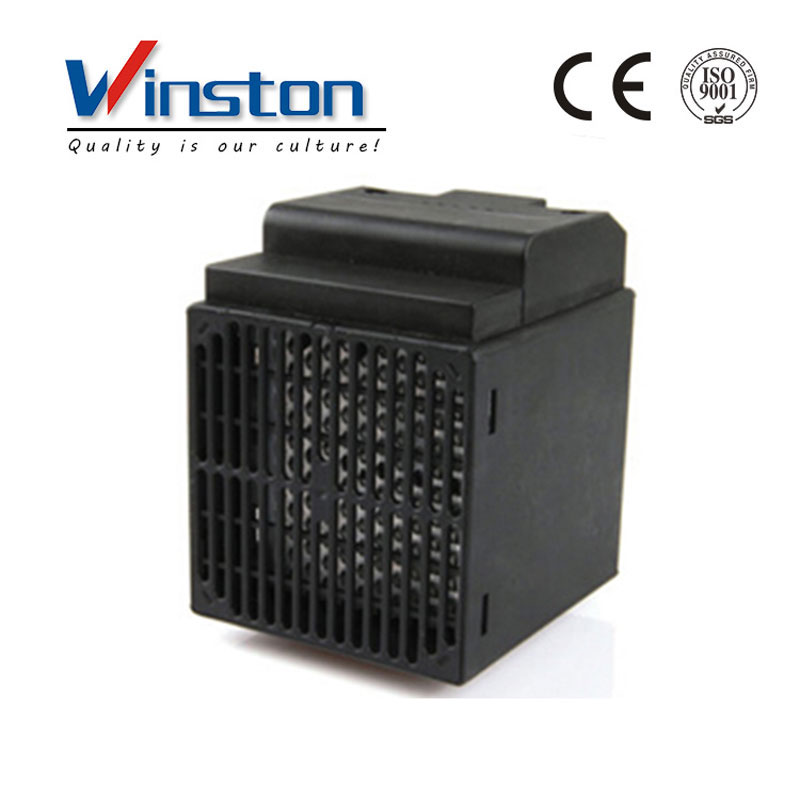

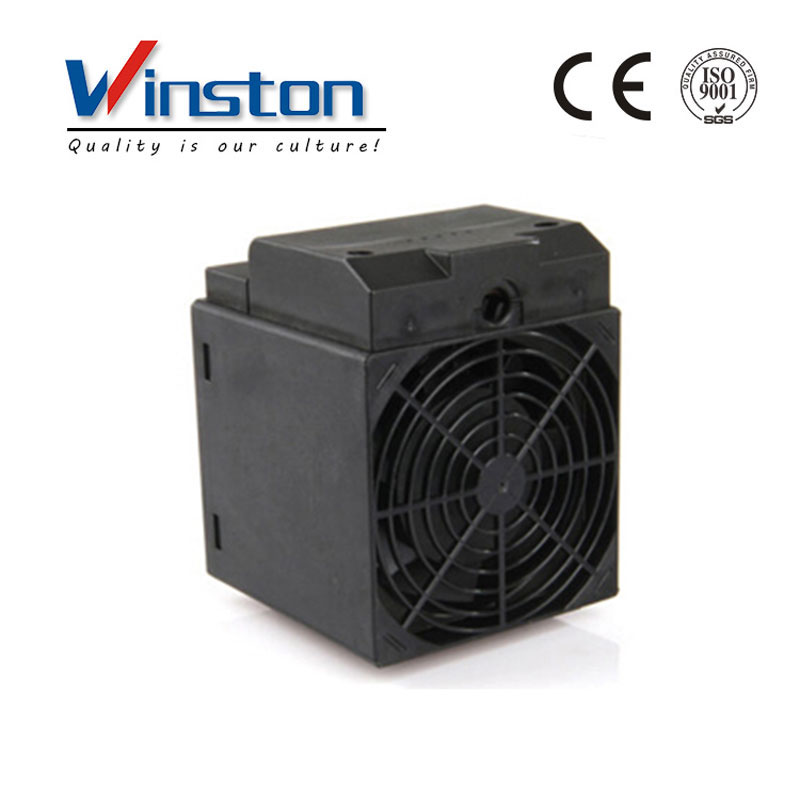

Name: CS 028 150W Touch-Safe Electronic PTC Fan Heater
Brand: Winston
SKU: 01555
Rating: 4.1 (828 reviews)

Category List

> Selected Products

Features

Compact size
Quiet operation

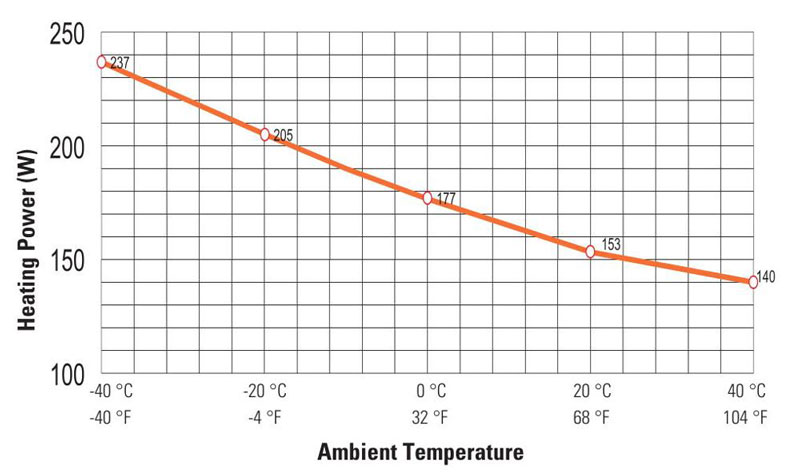

Heating power adjusts to ambient temperature
DIN rail or screw mount available

The CS 028 fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures.

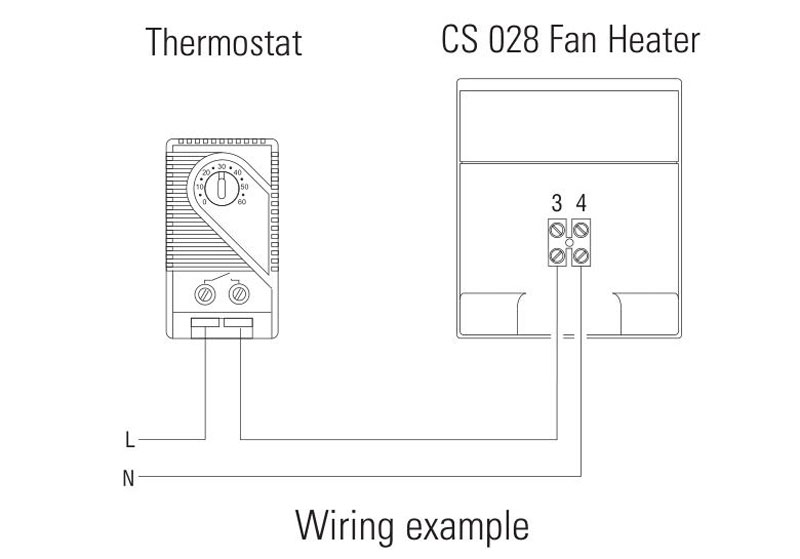

The heater is connected using the internal terminal con-nectors.
The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design.
The CS 028’s small size make it ideal for use in enclosures where space is at a premium.

Technical data

Model	CS 028 Fan Heater
Heating element	PTC resistor - temperature limiting
Max. current (inrush)	6 A @ AC 120 V, 12 A @ AC 230 V
Surface temperature max.	122 °F (50 °C) at housing, 212 °F (100 °C) at top grill;
Surface temperature max.	measured at 68 °F (20 °C) ambient temperature
Axial fan, ball bearing	service life 40,000 h at 104 °F (40 °C)
Air flow, free blowing	approx. 8 cfm (13.8 m³/h)
Connection	2-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max.

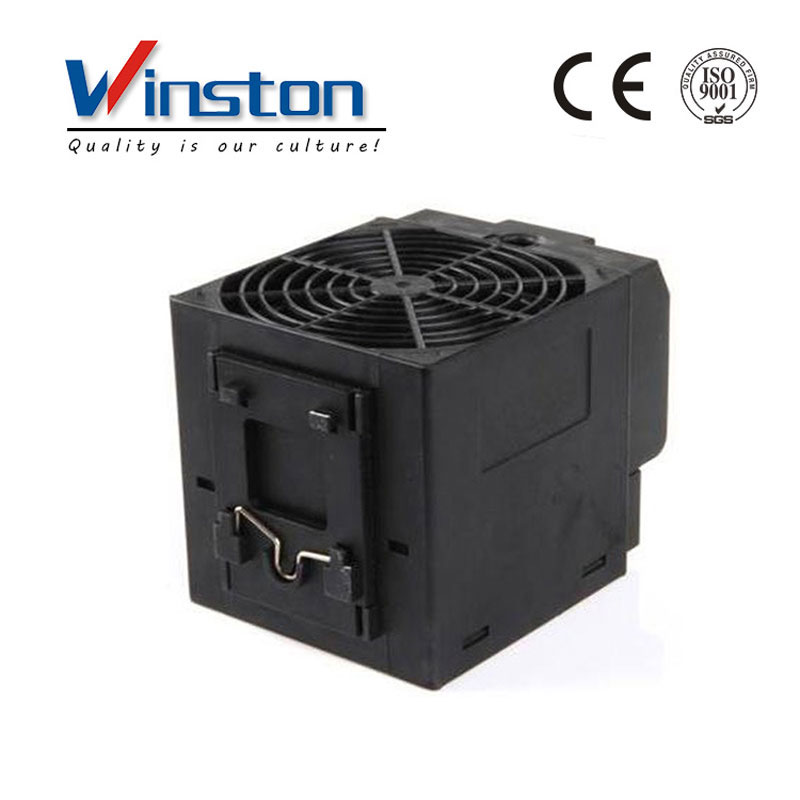

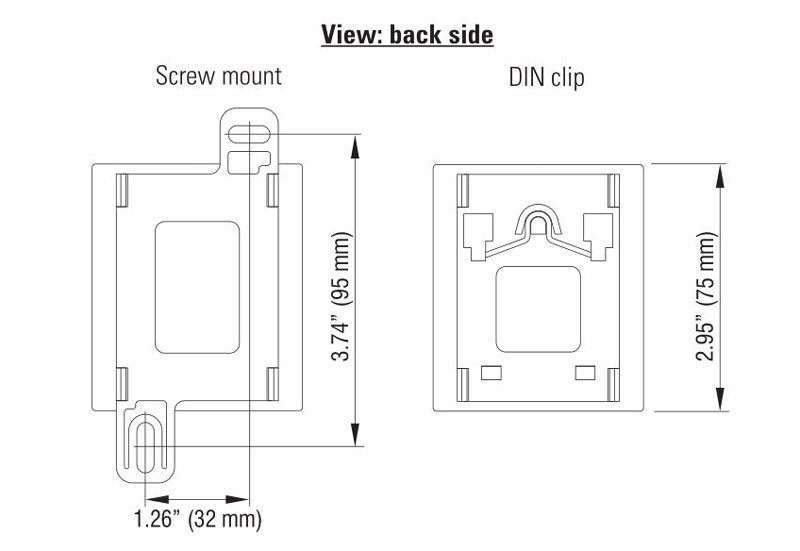

Mounting	screw mount or clip for 35 mm DIN rail, EN 60715
Housing	plastic, UL 94V-0, black
Weight	approx. 10.6 oz. (300 g)
Mounting position	vertical
Operating / Storage temperature	-49 to +158 °F (-45 to +70 °C)
Protection class	II (double insulated)
Protection type	IP20
Note	other voltages available upon request

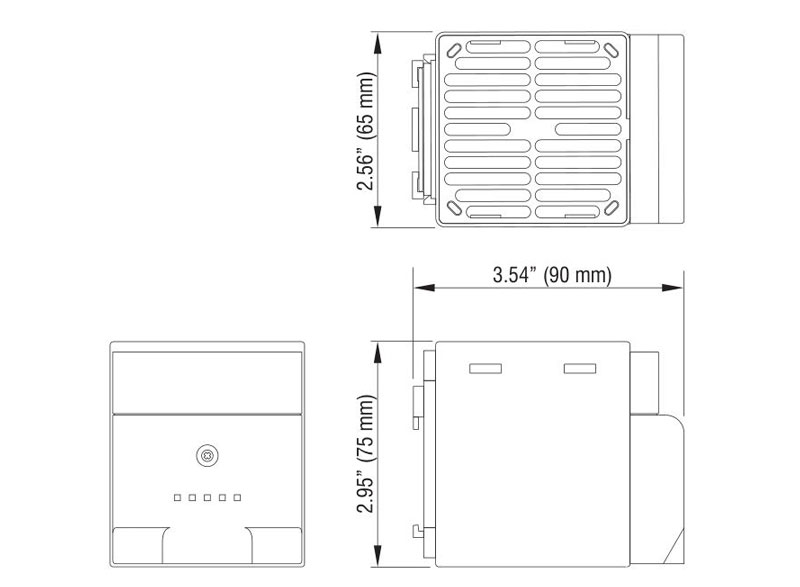

Part No.	Heating capacity 1)	Operating voltage	Dimensions	Mounting
02800.0-00	150 W	AC 230 V, 50/60 Hz	2.95 x 2.56 x 3.54” (75 x 65 x 90 mm)	DIN clip
02800.0-01	150 W	AC 230 V, 50/60 Hz	4.49 x 2.56 x 3.54” (114 x 65 x 90 mm)	Screw mount
02800.9-00	150 W	AC 120 V, 50/60 Hz	2.95x2.56 x 3.54” (75 x 65 x 90 mm)	DIN clip
02800.9-01	150 W	AC 120 V, 50/60 Hz	4.49 x 2.56 x 3.54” (114 x 65 x 90 mm)	Screw mount
