Compact High-performance Fan Heater CS 030

Compact High-performance Fan Heater CS 030
Compact High-performance Fan Heater CS 030

Compact High-performance Fan Heater CS 030

● Compact design

● High heating performance

● Double insulated

● Integrated thermostat(optional)

The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

The plastic enclosure provides double insulation and acts as protection against contact.

The fan heater is available with optional integrated thermostat for temperature control.

The CS 030 was designed as a stationary unit for wall fixing.

For fixing on the bottom of the enclosure the fanheater CS 130 is recommended.



Technical Data

Heating element

PTC resistor - temperature limiting

Temperature safety cut-out

to protect against overheating in case of fan failure

Axial fan, ball bearing

160m3/h, free flow,  service life 50,000h at 25°C (77°F)

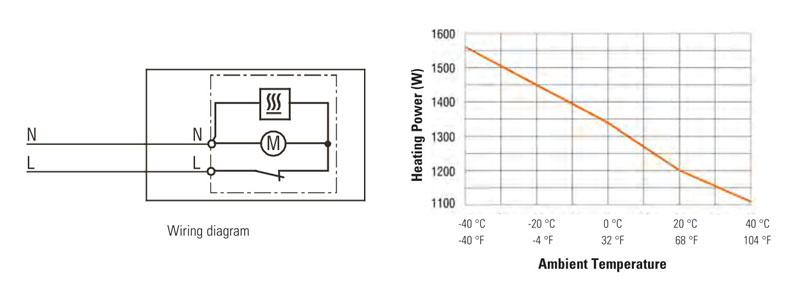

Connection

2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.

Casing

plastic according to UL94 V-0, black

Mounting

Screw fixing (M5)

Fitting position

Hhorizontal

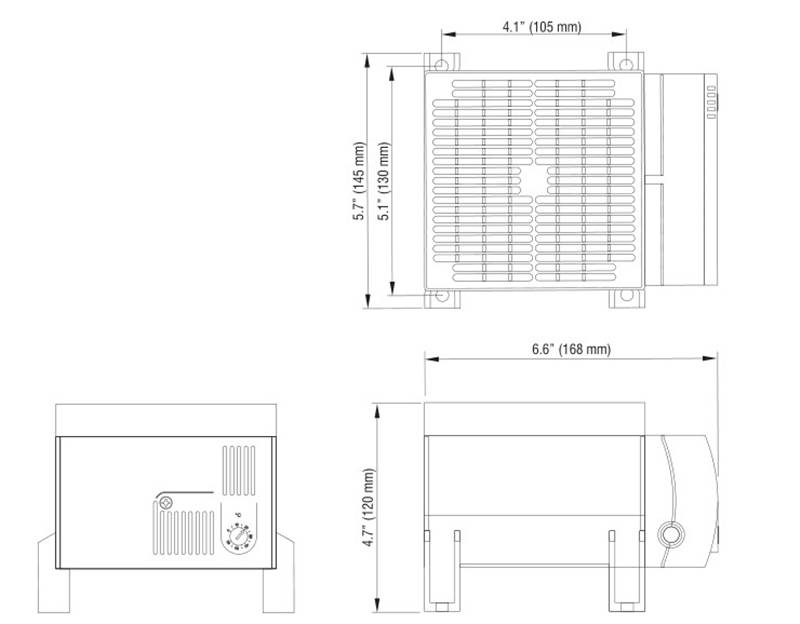

Dimensions

168 x 145 x 120mm

Weight

approx. 1.2kg

Operating / Storage temperature

-45 to +70°C (-49 to +158°F)

Protection type / Protection class

IP20 / II (double insulated)

Art. No.

Model

Operating

voltage

Heating

capacity1)

Inrush

current max.

Setting

range

03060.0-00

Fan Heater with thermostat

230VAC, 50/60Hz

1,200W

13A

0 to +60°C

03060.0-01

Fan Heater without thermostat

230VAC, 50/60Hz

1,200W

13A

-

03060.9-00

Fan Heater with thermostat

120VAC, 50/60Hz

1,200W

16A

+32 to +140°F

03060.9-01

Fan Heater without thermostat

120VAC, 50/60Hz

1,200W

16A

-

*at 20°C (68°F)ambient temperature
