Compact high-performance Fan Heater CR 130 950W
● Compact design
● Double insulated
● Integrated thermostat or hygrostat
● Optional clip or screw fixing
The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.
The plastic enclosure provides double insulation and acts as protection against contact.
The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control
The CR 030 was designed as a stationary unit for the bottom of the enclosure.
For wall fixing the fan heater CR 130 is resommended.
Technical Data
|
Heating element |
High performance cartridge |
|
Temperature safety cut-out |
to protect against overheating in case of fan failure,automatic reset |
|
Heater body |
Extruded aluminium profile |
|
Axial fan, ball bearing |
Airflow 160m3/h, free flow,service life 50,000h at25°C(77°F) |
|
Connection |
2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
|
Casing |
plastic according to UL94 V-0, black |
|
Mounting |
Clip for 35mm Din rai, EN 50022, Screw fixing (M6) |
|
Fitting position |
Hhorizontal |
|

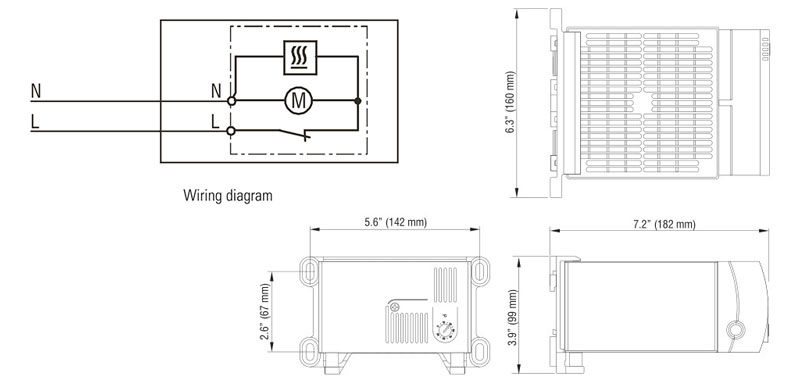

Dimensions |
182 x 160 x 99mm |
|
Weight |
Approx. 1.45kg |
|
Operating / Storage temperature |
-45 to +70°C (-49 to +158°F) |
|
Protection type / Protection class |
IP20 / II (double insulated) |
|
Note |
Other heating capacities from 200W up available on request |
Operating temperature of heater with integrated hygrostat: 0 to +60°C(+32 to +140°F)
|
Art. No. |
Model |
Operating voltage |
Heating capacity |
Setting range |
|
13051.0-00 |
Fan Heater with thermostat |
230VAC, 50/60Hz |
950W |
0 to +60°C |
|
13051.0-02 |
Fan Heater with hygrostat |
230VAC, 50/60Hz |
950W |
65% RH, factory-set |
|
13059.9-00 |
Fan Heater with thermostat |
120VAC, 50/60Hz |
950W |
+32 to + 140°C |
According to UL499 in combination with UL508A
