Selection Of Convenient Light Curtain Controller

Easy to connect
Directly connected to a light curtain sensor with a special connecting cable, or optionally using a terminal block

Two-relay output
Two-relay output, monitor mutually, provide a set of NO or NC contacts for choice

Simple and practical
Compact size ,low power consumption, rall installation

Introduction

Safety light curtains,also called photoelectric safeguarding device, photoelectric protector,or area interrupted by an object,the device sends out a signal to stop  the operating machinery and equipments,lowering the possibility of personal being and effectively safeguarding the workers. Taking advantage of the other brand and adopting the infrared scanning technology, the stord's safety light curtain of GB series is a new-developed automation- controlling product with reliable quality. The emitter light curtain and receiver are installed at two sides,while a SCM and a microprocessor are put inside to digital  program the device, forming a safeguarding shield of infrared light rays and the keeping the emitter and receiver in the state of high-velocity scanning. When personnel or objects invade the security area,the control system quickly respond and send out a electric signal to make the load act and when the personnel or objects leve the area,the load automatically closes ,so as to project the equipments and personnel from injures.
The safety light curtain of GB series only contains a set of emitter and receiver without extra controller.It can be directly connected to rays or other kinds of computer numerical ports with aviation connectors or cables. Safety light curtain is the most effective device in protecting operating personnel punching machines and is better than safety fence,machine handles,mechanical  dial hands and other mechanical protective devices, effectively avoiding safety accidents which result from error operations or machine problems during producing. It can be used for general machine tool,high-performance punching machine,mechanical press.Hydraulic press,laminating machine,laminator,plate shearing machine,packaging machine and other automatic equipments,and can also be used foe protection and

Accord with IEC61496-1/2 standard
Adopt advanced infrared synchro-scanning technology, excellent optical performance and divergence angle of 2.5 degree, easy to align and maintain
Small overall dimensions, aluminum alloy shell, strong and lightweight
Various specifications and resolutions of 10/20/40MM
Electric connection:4-point M12 connector
Protective width of 4-128CM
Compact size, cross sectional area of 25*25MM for GB series
Resolution and protective width can be design by customer order,and some
other various connectors and extra functions available by order

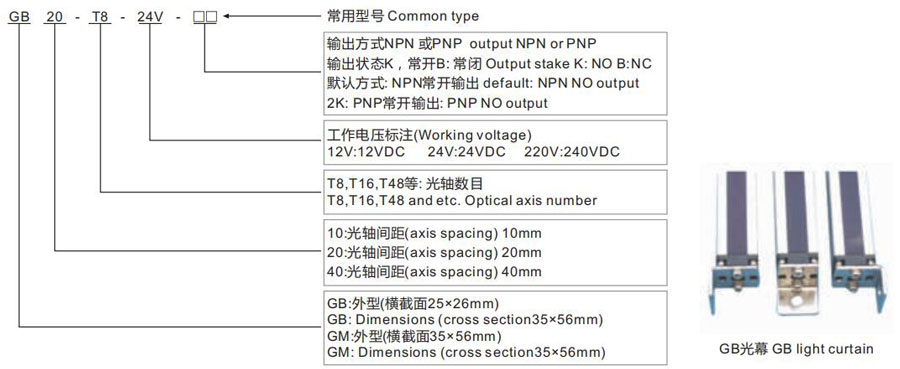

Model definition

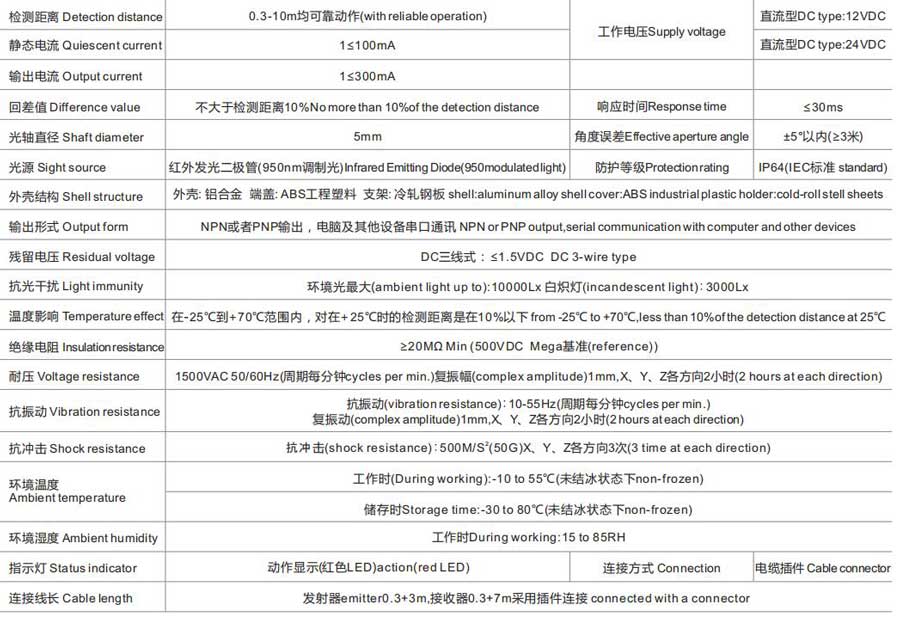

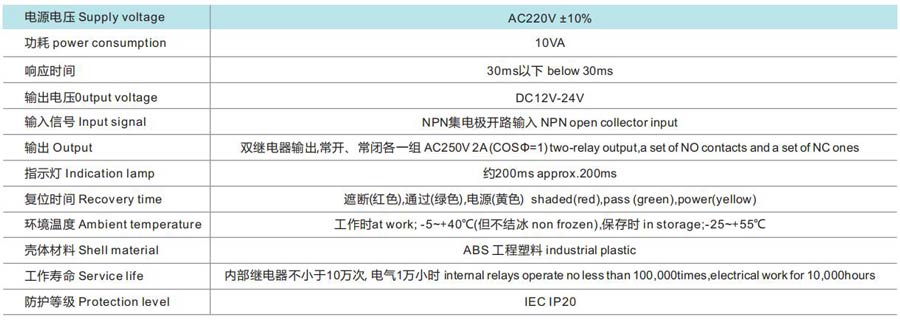

Specification

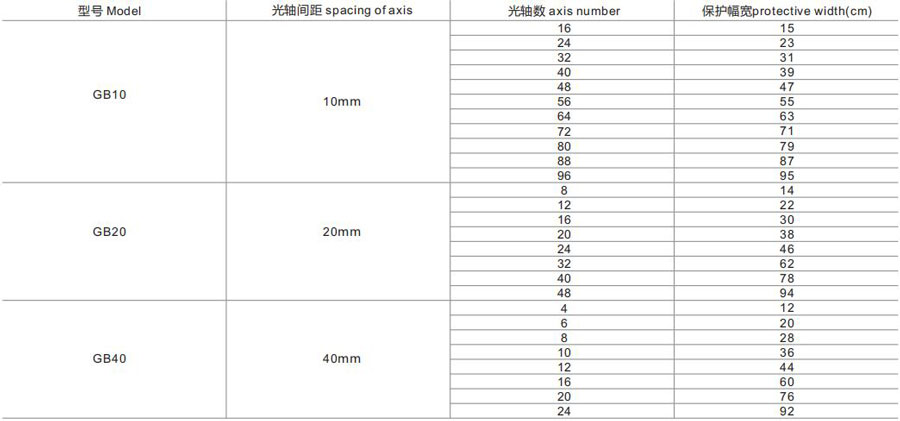

Specification

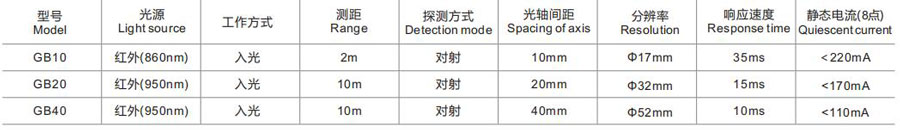

Specification

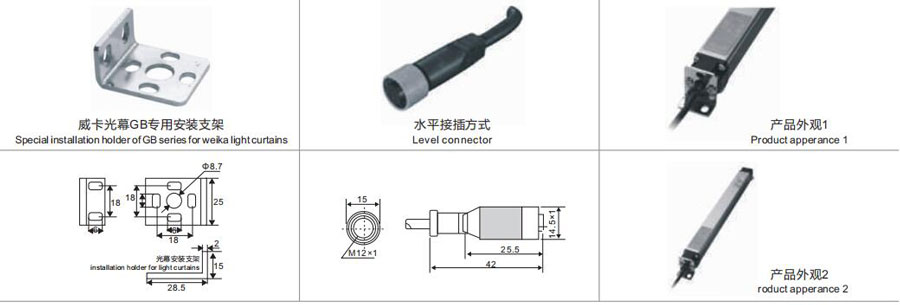

The overall sizes of the installation holder                                                                   The overall sizes of connector socket

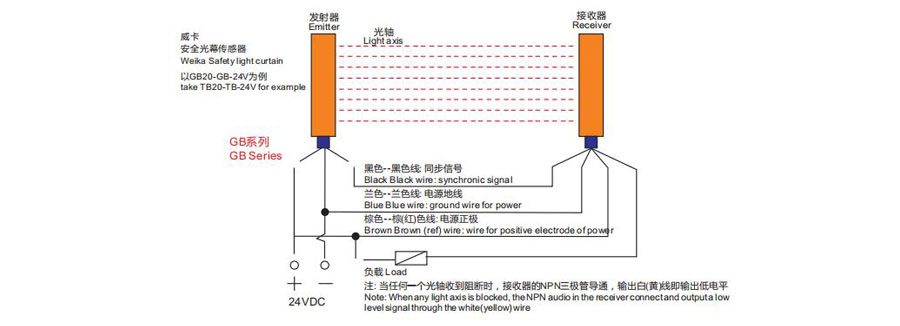

wiring diagram of safety light curtain
