GM Optic Screen Sensor

Safe and reliable optic screen sensor

• Applicable forthe safely detection of automatic assemble line. Elevator,danger restricted zone,metal forming machine,punching&shearingmachine tool,paper cutter and so on and has protection function.
• Adopting synchronism scanning technology,concentrated beam path,non working blind area,strong anti-interference ability,and convenient installation.
• Resistance to mutual interference function it is possible to closely mount more than 2 sets of devices.
• Fault self-check,function,power failure stoop,inner component fault stop, connection fault stop,object invading stop signal output.
• Attached with specific control supplying powerful control function.
• Replaceable for similar products made bySICK,STI,KEYENCE,HoneylellCorp.

GM OPTIC SCREEN SENSOR

Wiring Mode

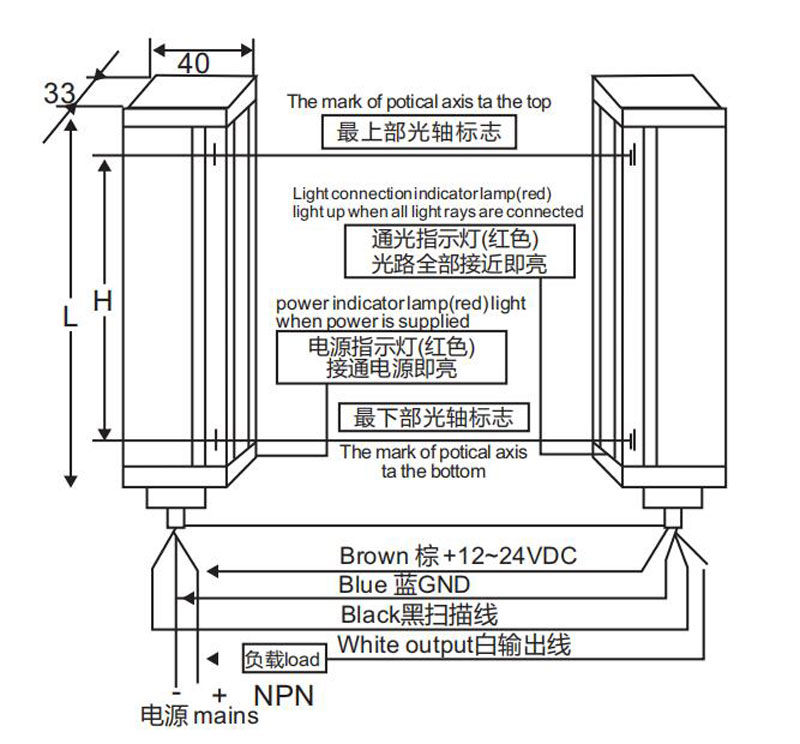

Wiring diagram

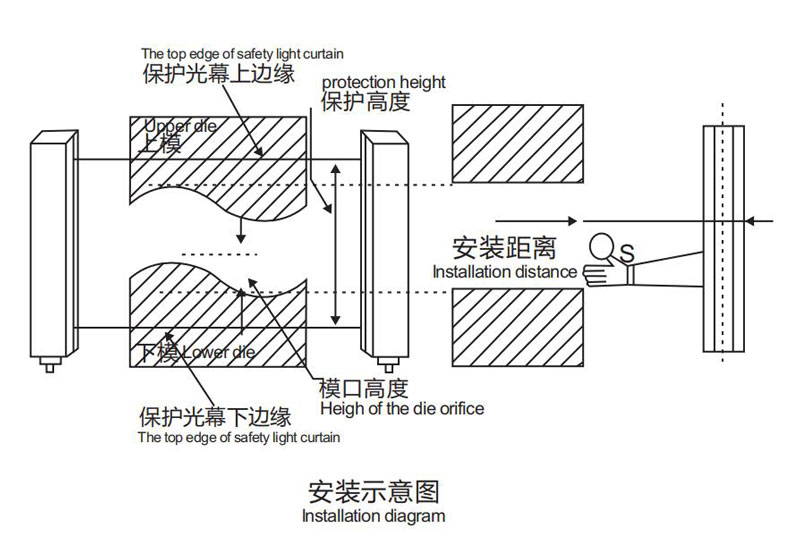

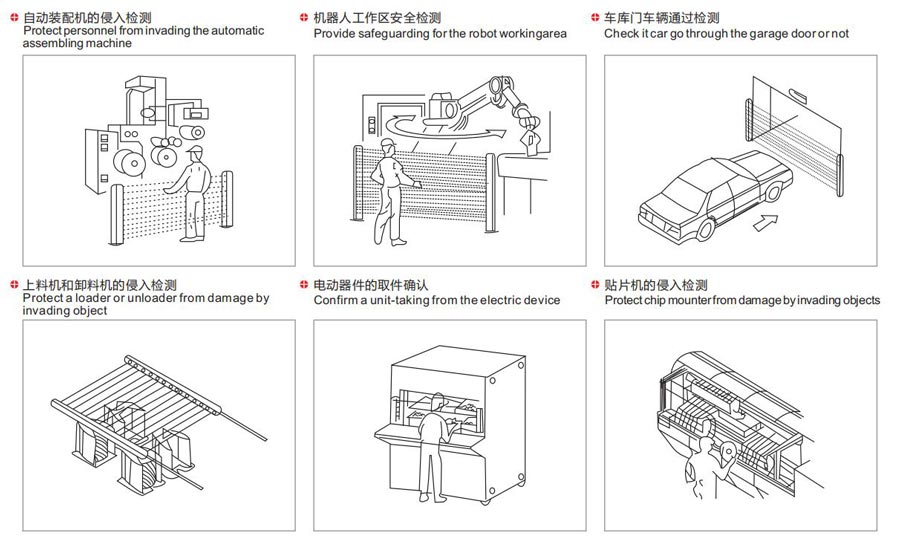

Application illustration

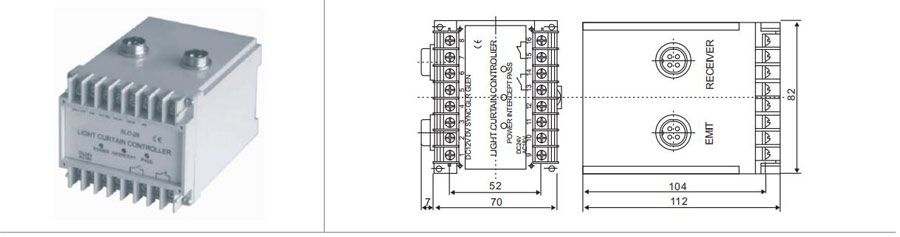

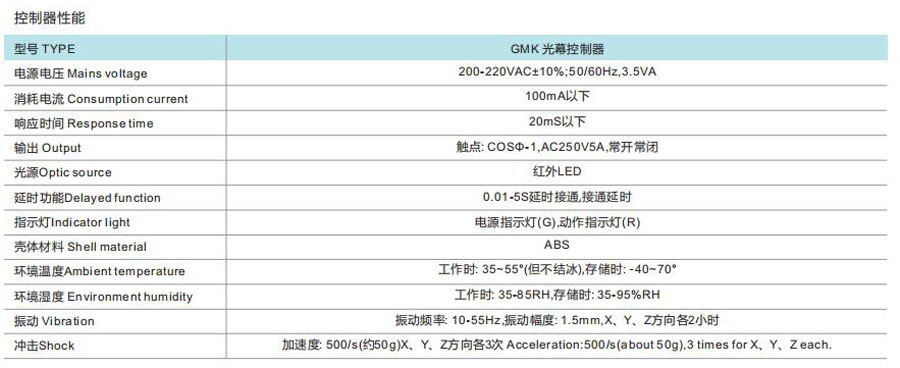

Light curtain controller GLC-2B
