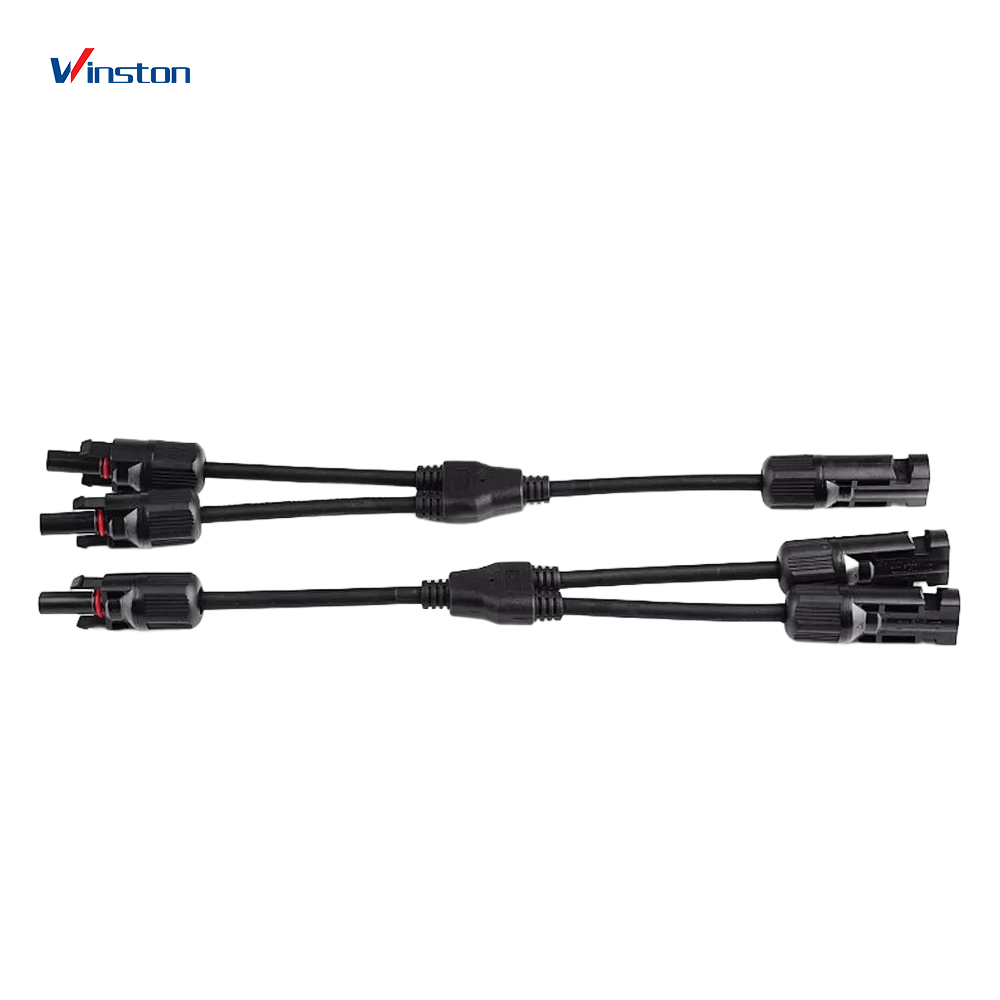

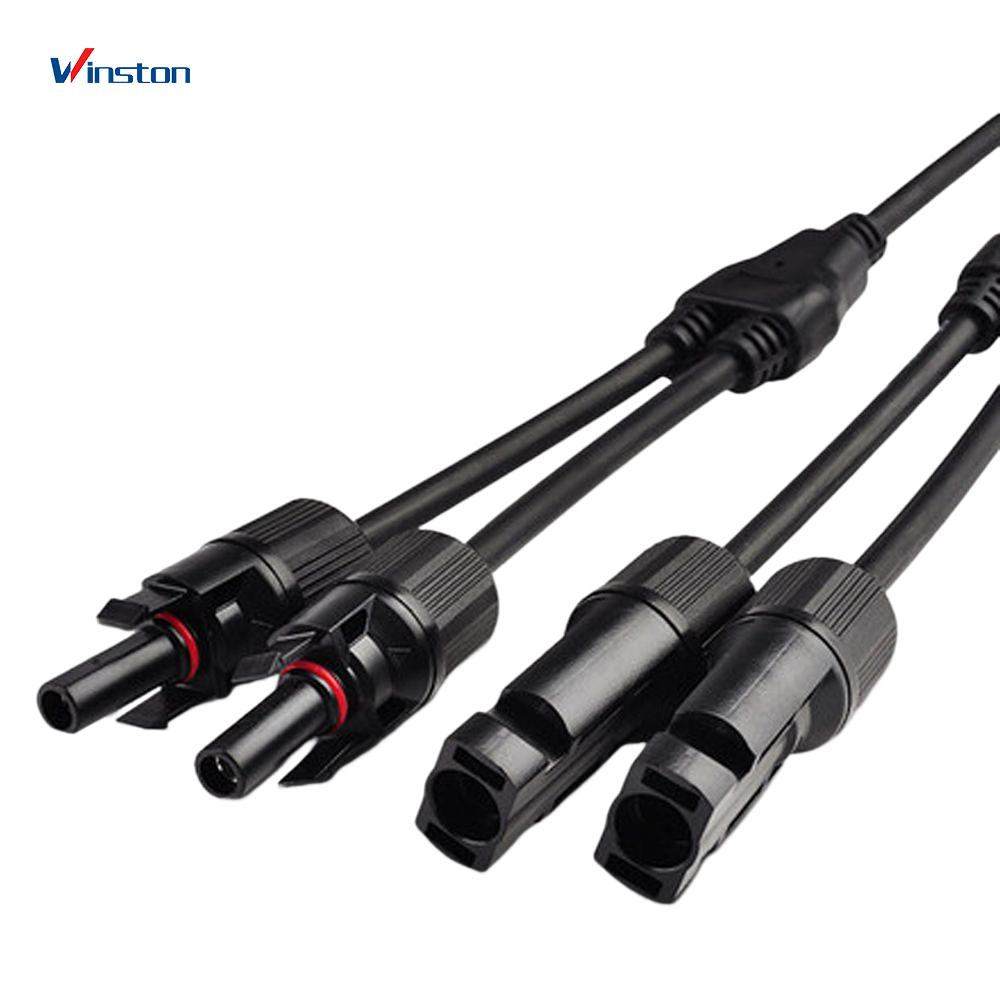

Winston 2 to 1 DC female and male waterproof pv solar branch connector



Products Description

· Degree of protection:IP2*/IP67
· Contact material:Copper,silver plated
· 40A
· Simple on-site processing
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· Accomodates PV cable with deferent insulation diamaters
· High current carrying capacity
· Rated current:up to 40A



Specifications

Name

SOLAR CONNECTOR

Model Number

PVY2

Test Voltage

1000V DC

Overvoltage Type/Pollution Degree

6000V(50Hz, 1min)

Contact Resistance Of Plug Connector

CAT III /2

Contact Resistance Of Plug Connector

≤0.5mΩ

Contact Material

Copper, Tin-plated

Insulation Material

PPO

Degree Of Protection

IP2X/IP67

Flame Class

UL94-VO

Safety Class

II

Insertion Force/Withdrawal Force

≤ 50N/ ≥ 50N

Connecting System

Crimp connection

Temperature Range

-40℃ ~ +125℃

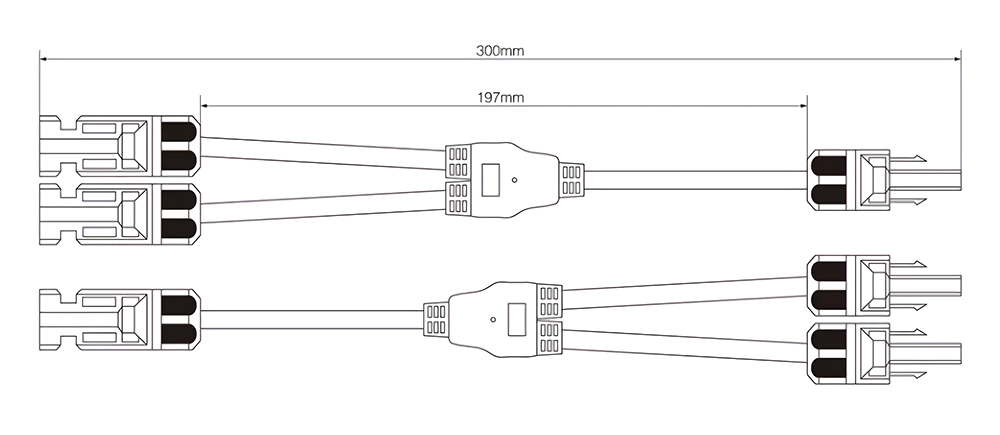

Dimension



Packaging & Shipping
