Products Description
Specifications
|
Series
|
Model
|
Rated Output Power (KW)
|
Rated Input Current (A)
|
Rated Output Current (A)
|
|
WST9000S-2
(0.75KW-2.2KW)
|
WST9000S-0.75G-2
|
0.75
|
9.3
|
7.2
|
|
WST9000S-1.5G-2
|
1.5
|
15.7
|
10.2
|
|
|
WST9000S-2.2G-2
|
2.2
|
24
|
14
|
|
|
WST9000S-2
(4KW-7.5KW) |
WST9000S-4G-2
|
4
|
17
|
16
|
|
WST9000S-5.5G-2
|
5.5
|
25
|
20
|
|
|
WST9000S-7.5G-2
|
7.5
|
33
|
30
|
|
| WST9000S-4
(0.75KW-315KW) |
WST9000S-0.75G-4
|
0.75
|
3.4
|
2.5
|
|
WST9000S-1.5G-4
|
1.5
|
5
|
4.2
|
|
|
WST9000S-2.2G-4
|
2.2
|
5.8
|
5.5
|
|
|
WST9000S-4G-4
|
4
|
13.5
|
9.5
|
|
|
WST9000S-5.5G-4
|
5.5
|
19.5
|
14
|
|
|
WST9000S-7.5G-4
|
7.5
|
25
|
18.5
|
|
|
WST9000S-11G-4
|
11
|
32
|
25
|
|
|
WST9000S-15G-4
|
15
|
40
|
32
|
|
|
WST9000S-18.5G-4
|
18.5
|
47
|
38
|
|
|
WST9000S-22G-4
|
22
|
51
|
45
|
|
|
WST9000S-30G-4
|
30
|
70
|
60
|
|
|
WST9000S-37G-4
|
37
|
80
|
75
|
|
|
WST9000S-45G-4
|
45
|
94
|
92
|
|
|
WST9000S-55G-4
|
55
|
128
|
115
|
|
|
WST9000S-75G-4
|
75
|
160
|
150
|
|
|
WST9000S-90G-4
|
90
|
190
|
180
|
|
|
WST9000S-110G-4
|
110
|
225
|
215
|
|
|
WST9000S-132G-4
|
132
|
265
|
260
|
|
|
WST9000S-160G-4
|
160
|
310
|
305
|
|
|
WST9000S-185G-4
|
185
|
345
|
340
|
|
|
WST9000S-200G-4
|
200
|
385
|
380
|
|
|
WST9000S-250G-4
|
250
|
468
|
465
|
|
|
WST9000S-280G-4
|
280
|
525
|
520
|
|
|
WST9000S-315G-4
|
315
|
590
|
585
|
Dimension

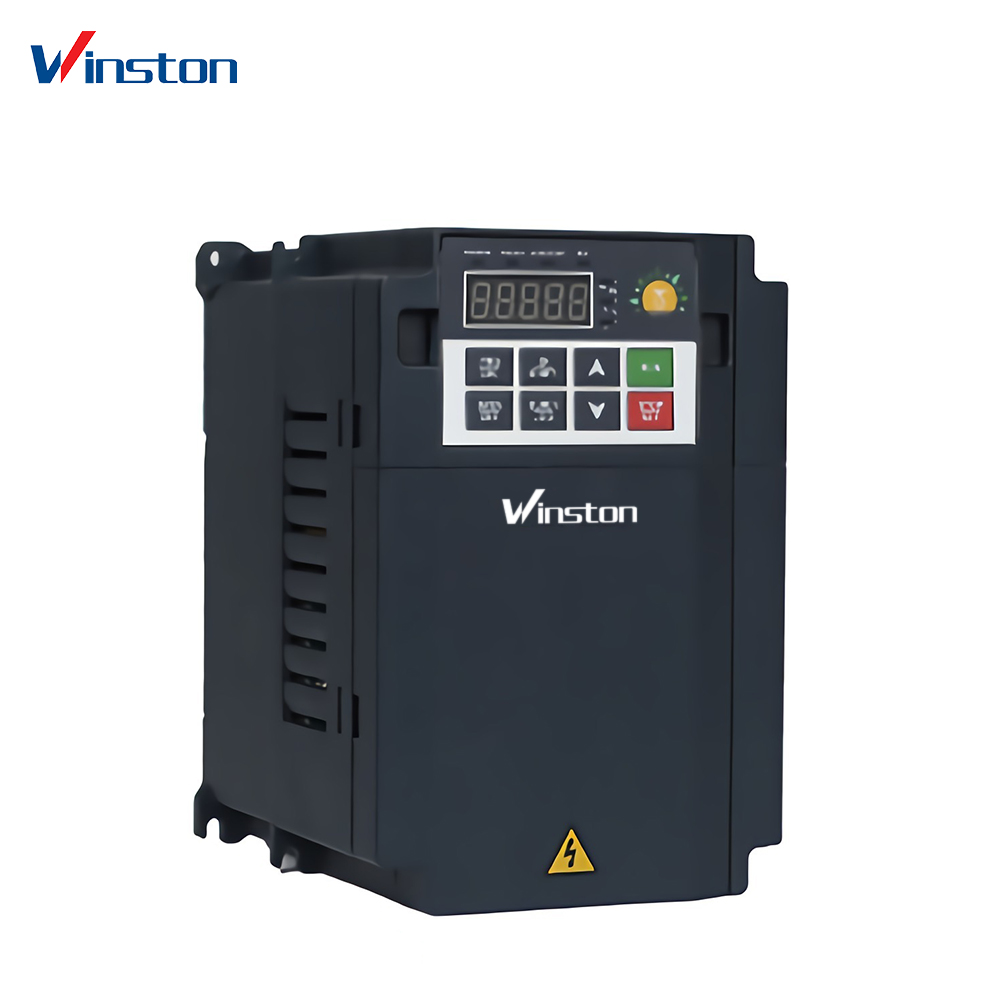

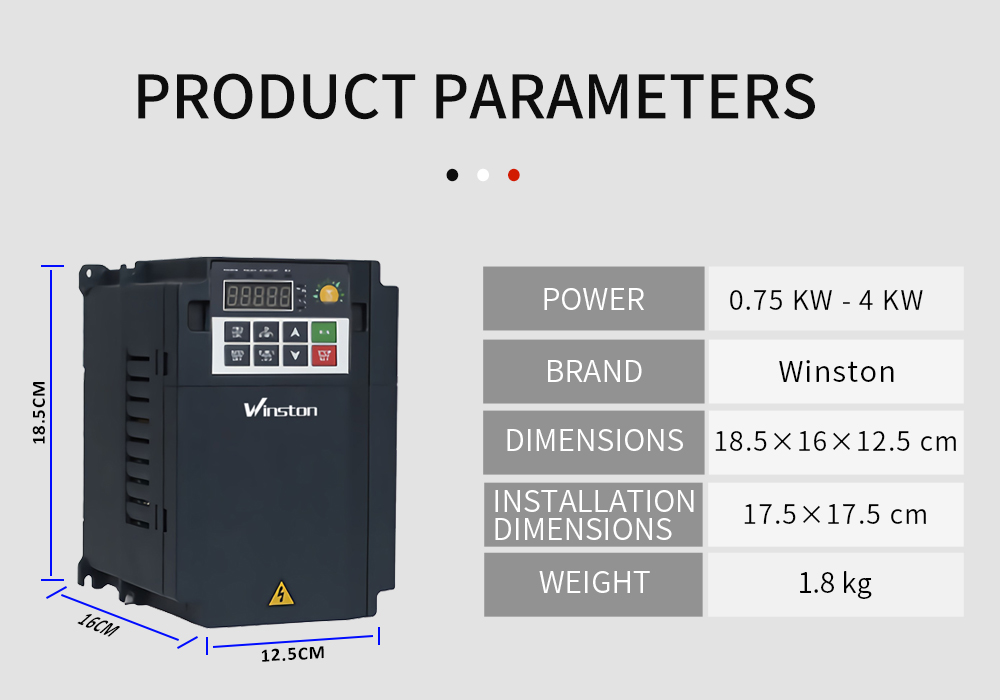

0.75kw/1.5kw/2.2kw/4kw (1HP/ 2HP/ 3HP/ 5.5HP)Solar Pump Inverters

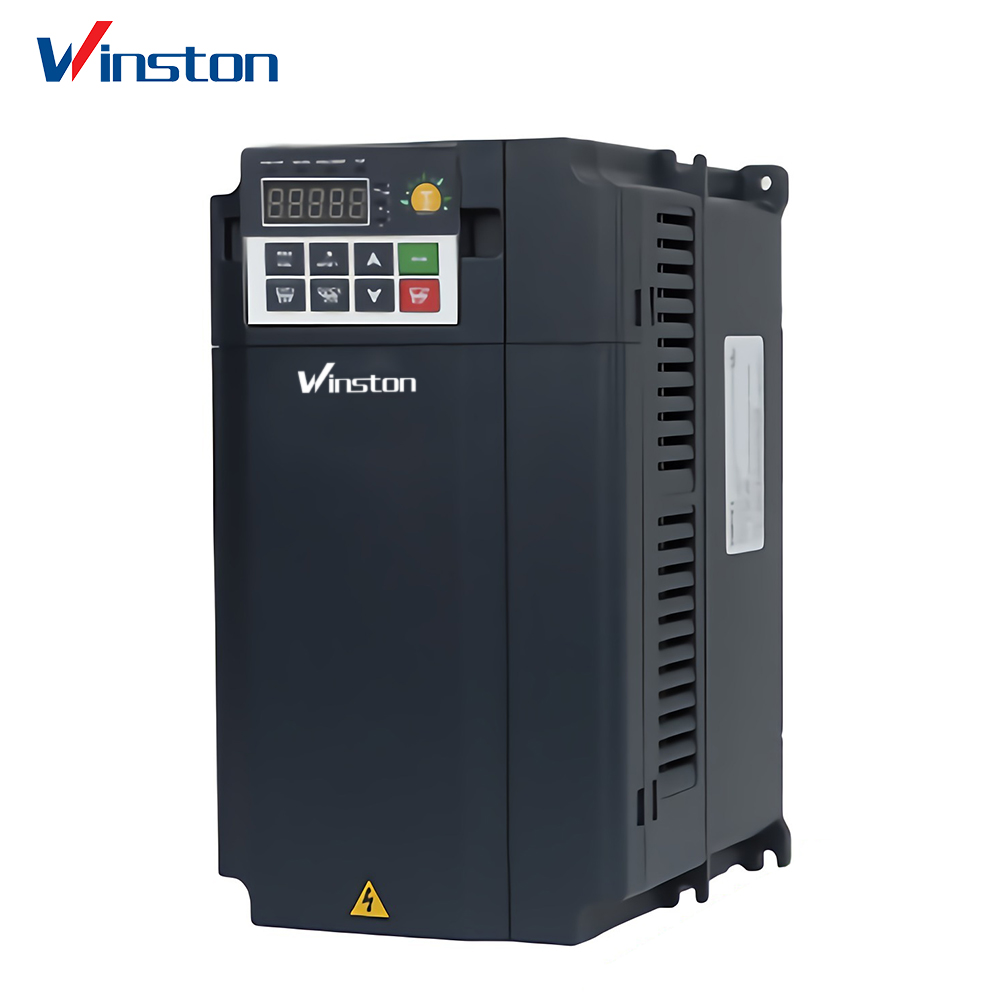

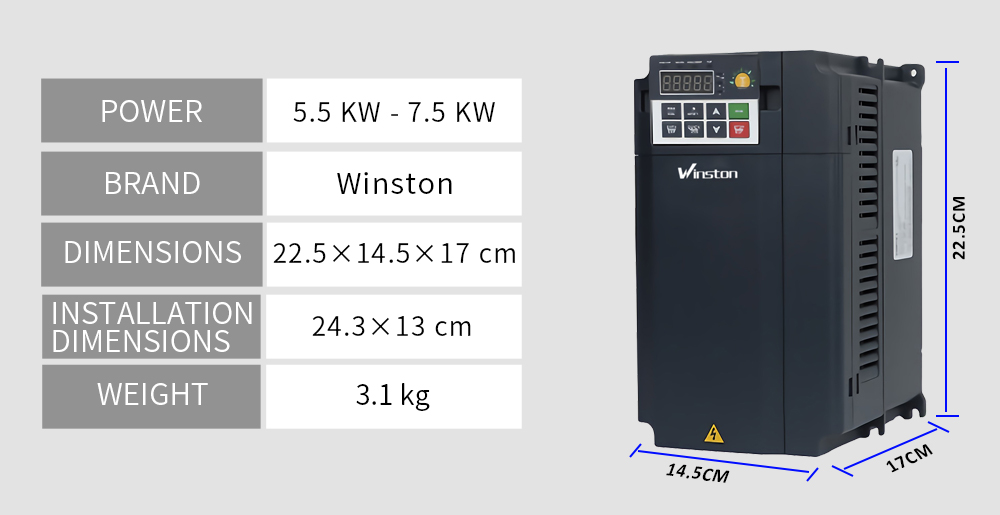

5.5kw/7.5kw(7.5HP/ 10HP) Solar Pump Inverters

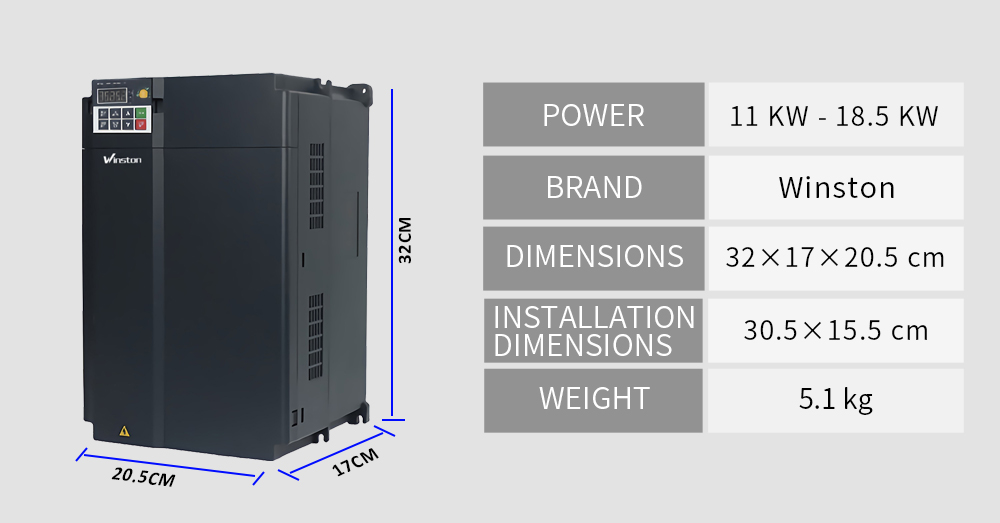

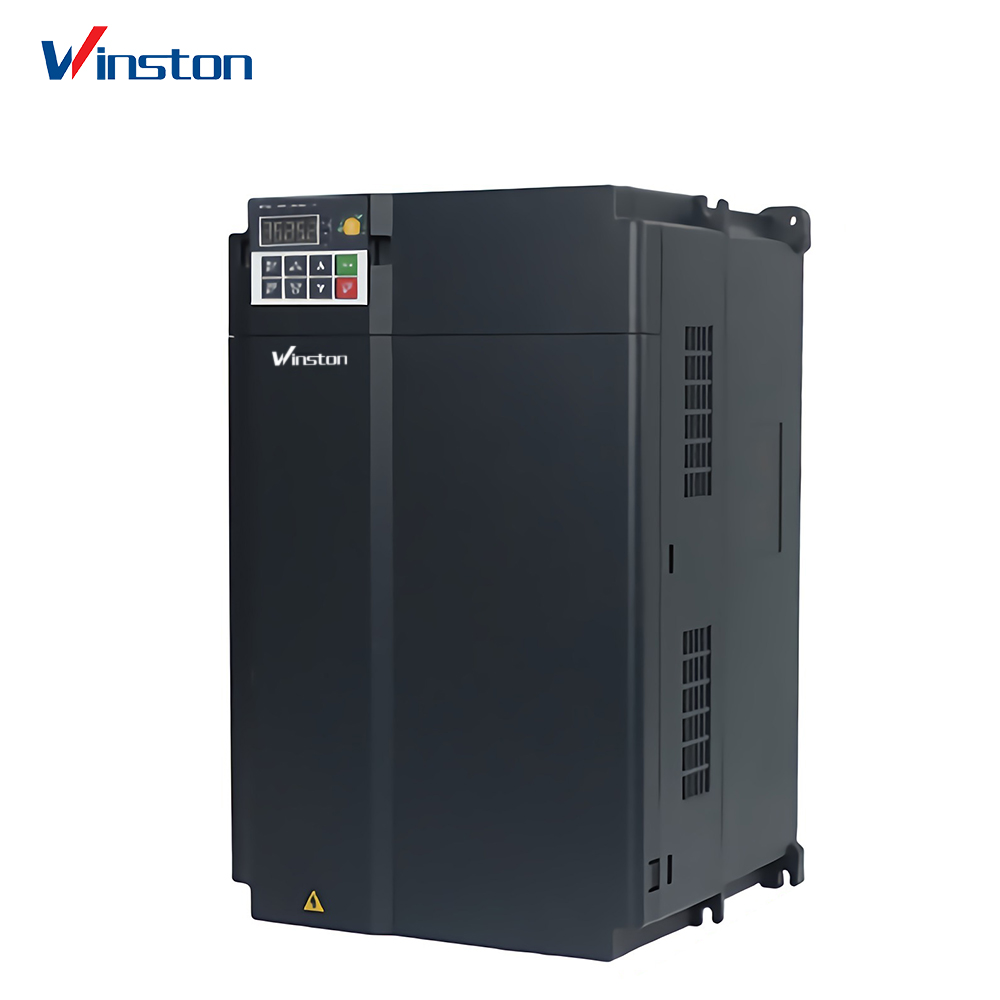

11kw/15kw/18.5kw (15HP/ 20HP/ 25HP)Solar Pump Inverters

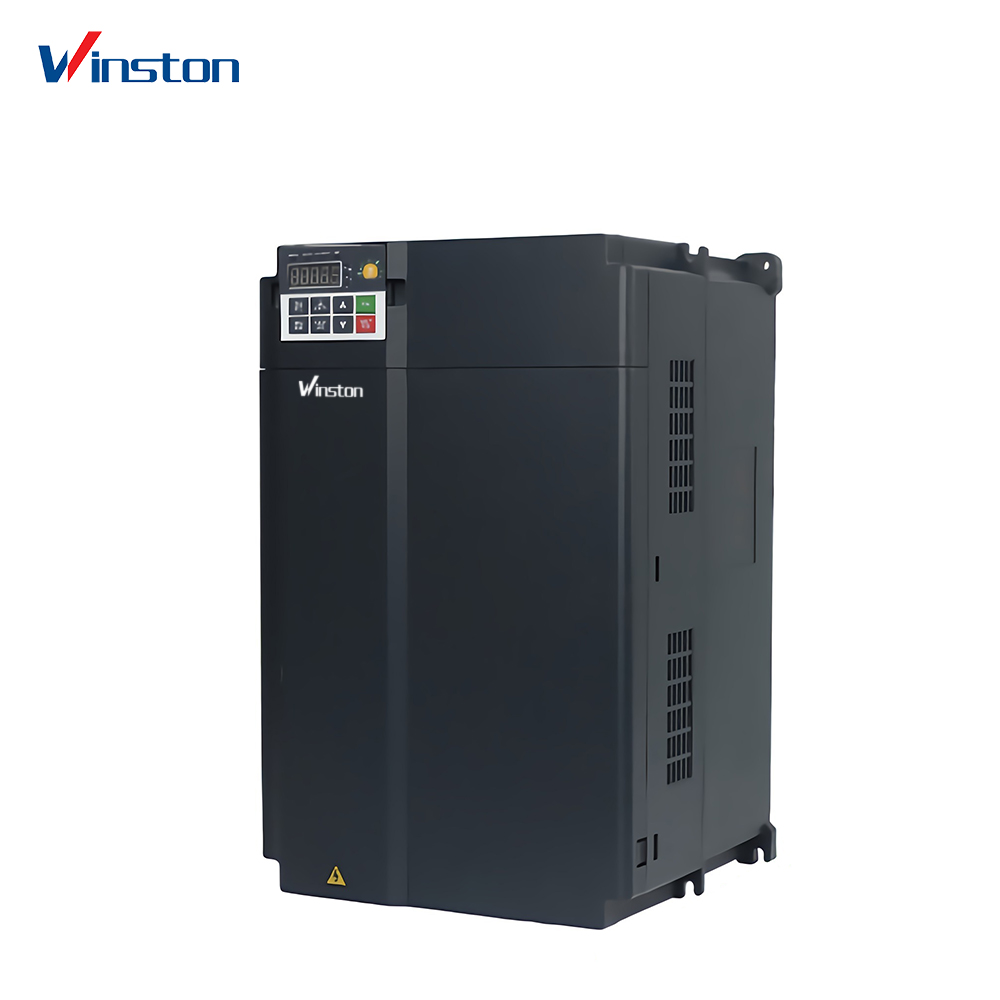

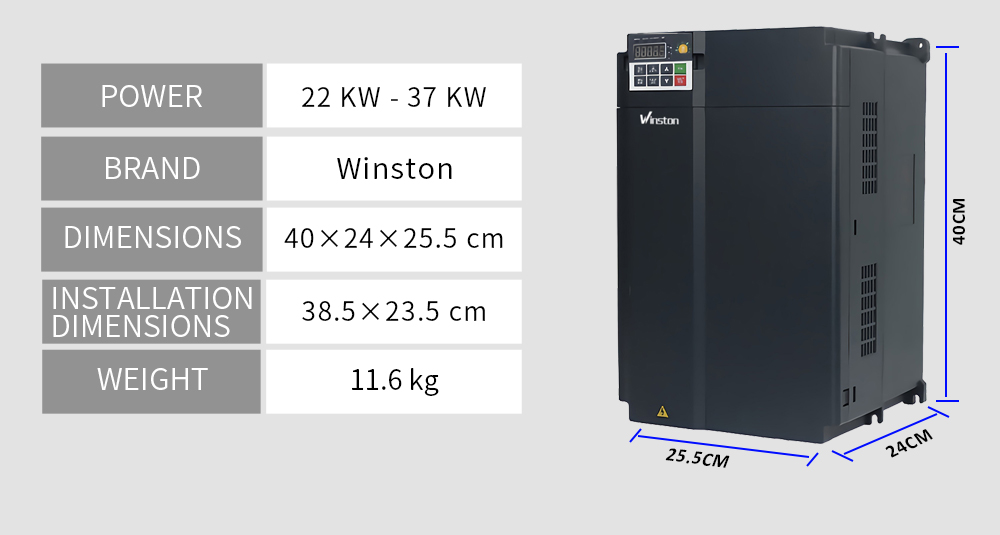

22kw/37kw (30HP/ 50HP)Solar Pump Inverters

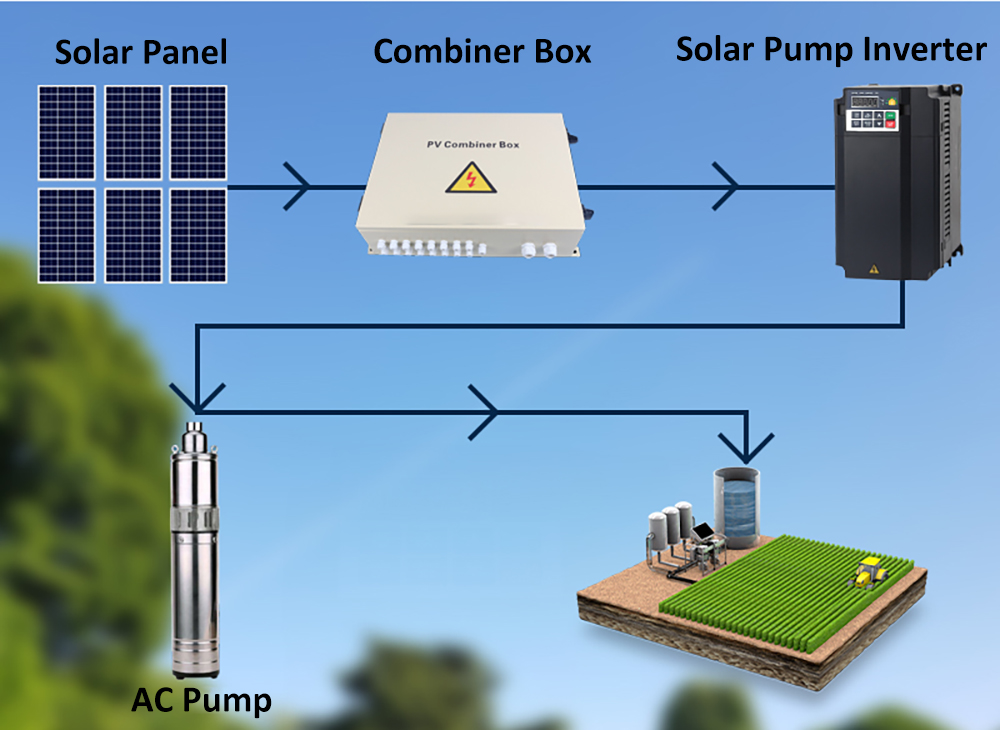

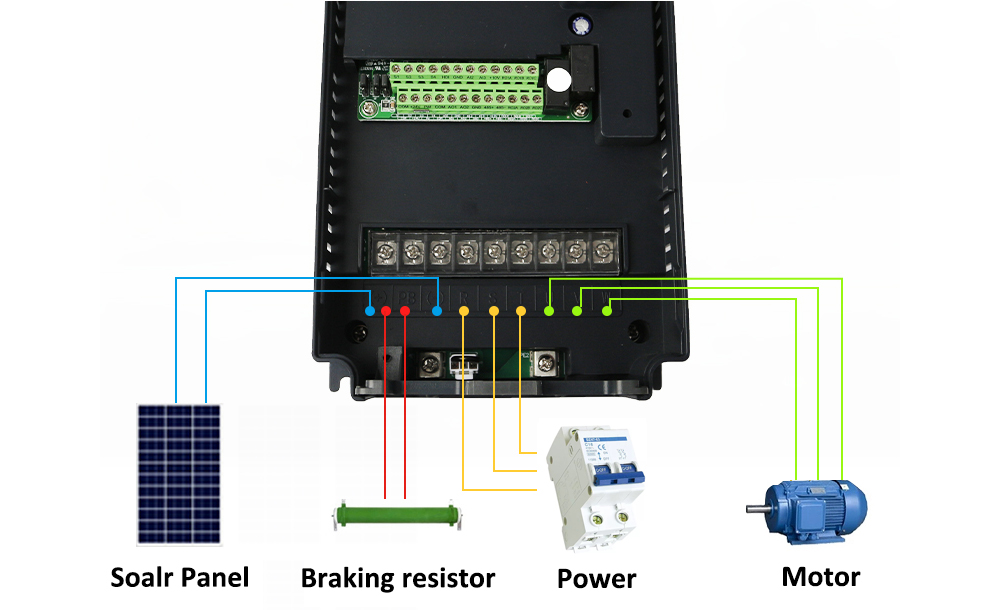

Wiring diagram
The Solar Pump Inverter can be installed on he wall or in a cabinet/combiner box. Directly get the Solar DC Voltage from solar panels or get AC Voltage from electricity. Then inverter get AC output to control the various pumps or motors.

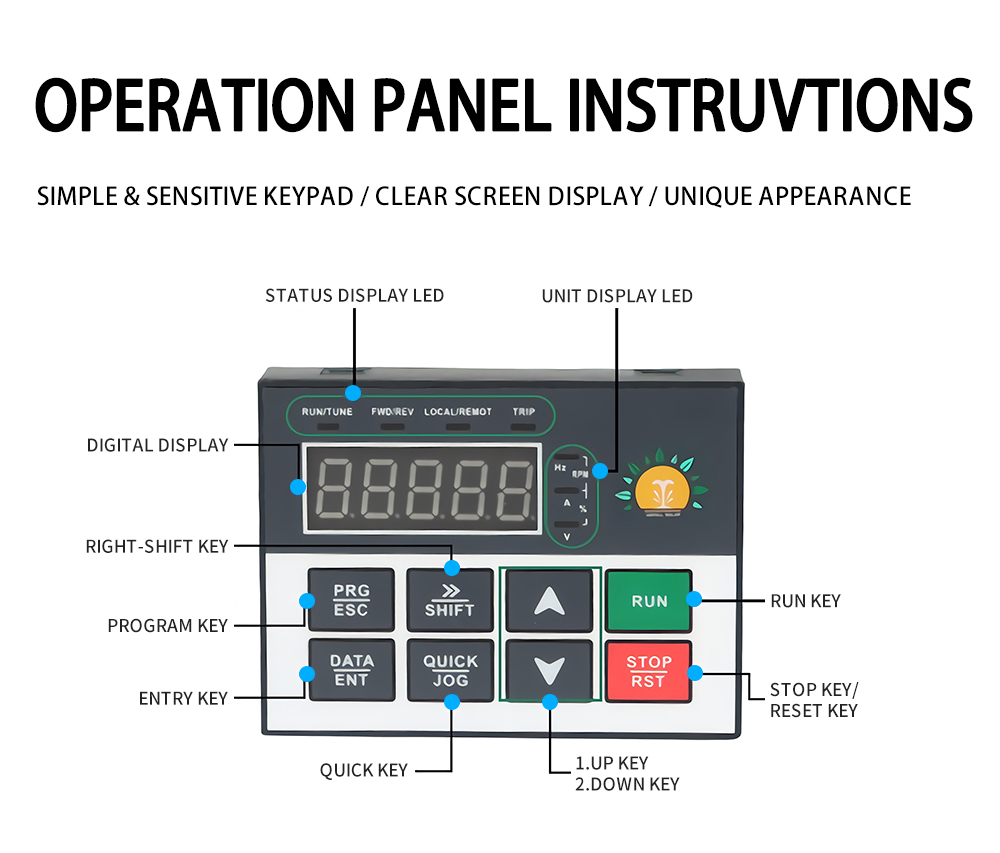

Control panel
You can modify the parameters, monitor the working status and start or stop the WST9000S Solar Pump Inverters by operating the keypad. If the keypad is externally installed on an optional bracket, it can be 20 meters away from the inverter at most
