Products Description

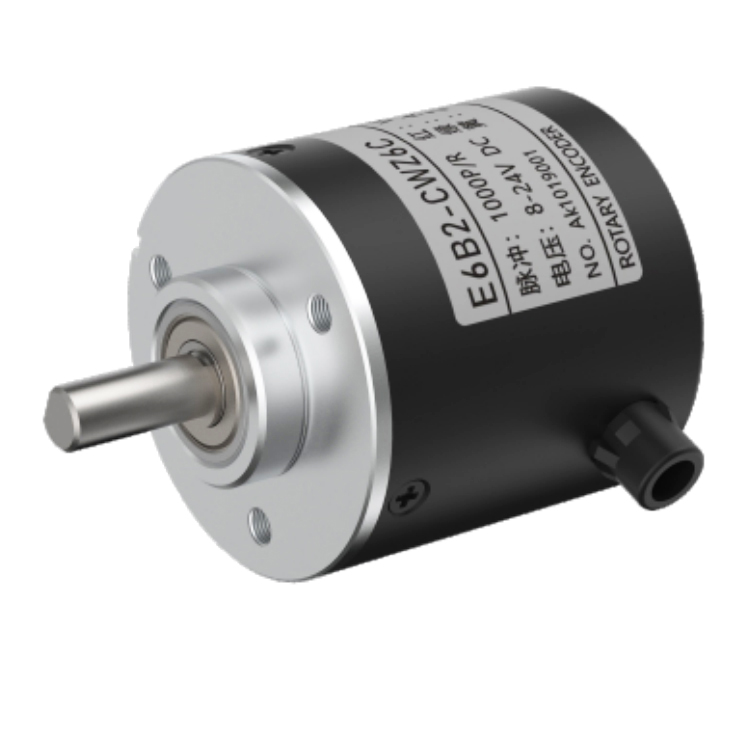

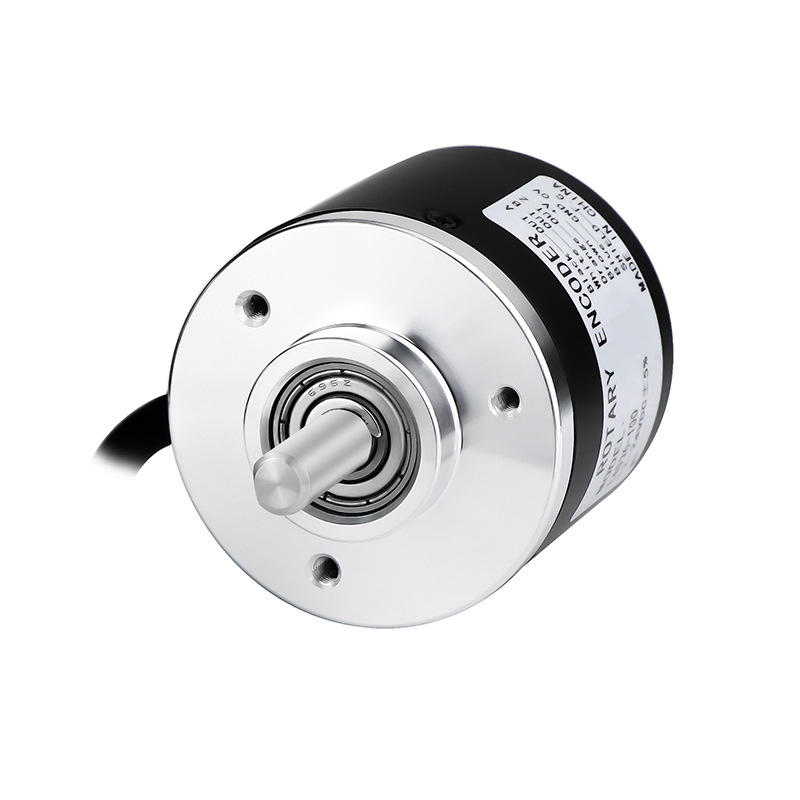

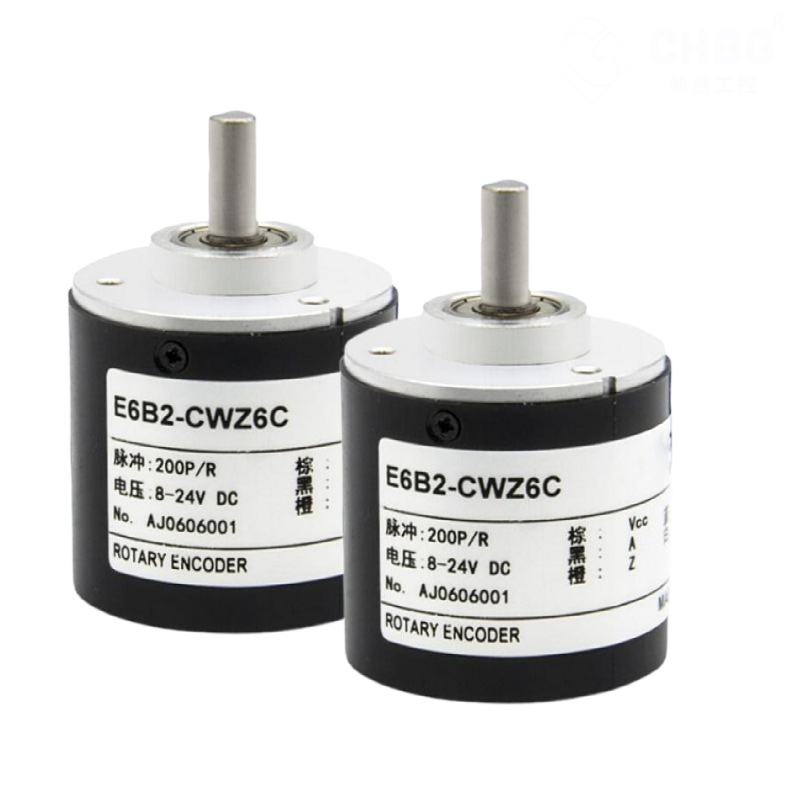

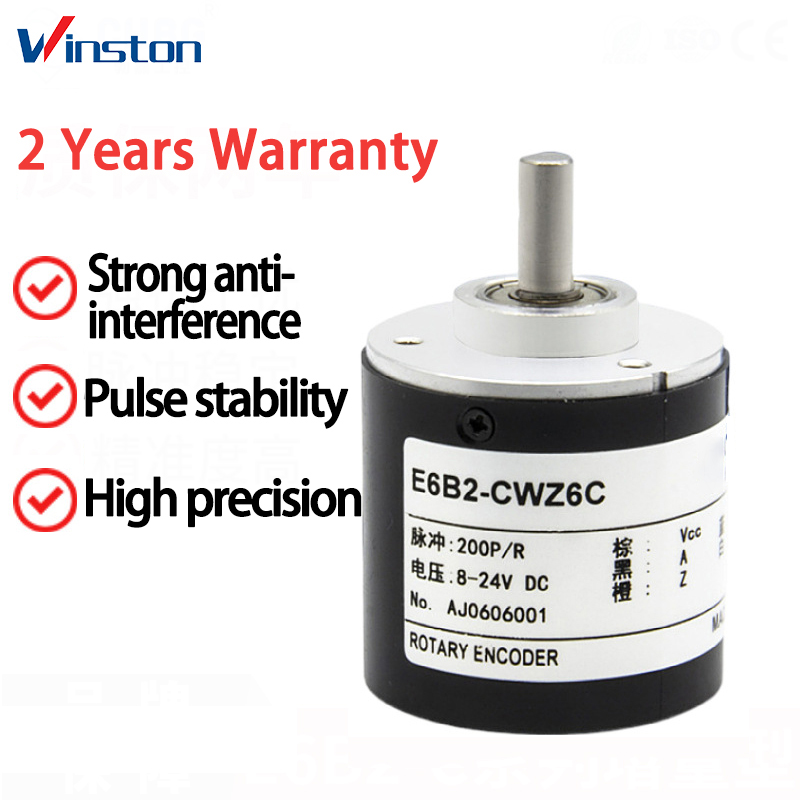

E6B2-CWZ6C 1000P Incremental Rotary Encoder (body diamter 40mm)
E6B2-CWZ6C Incremental Rotary Encoder (40-mm-dia.)Rotary Encoder,Motor encoders,manual encoders,hollow shaft encoder,servo motor
Rotary encoder E6B2
INCREMENTAL ROTARY ENCODERS,OUTSIDE DIAMΦ40
Product advantage
Technical parameter
|
Electrical parameters |
Mechanical parameters |
||
|
Resolution |
10-3600P/R |
Start the moment |
2 x10^-3N - m (+ 25 ° C) |
|
Power supply voltage |
DC5V-24V,DC5V |
Allowable shaft load |
9.8N axial and 9.8N radial |
|
Output voltage VH |
≥3.5.≥Vcc-2.5 V |
The moment of inertia |
4x10^-7 Kg㎡ |
|
Output voltage VL |
≤0.5V ≤1.0 V |
The largest number of revolutions |
5000r/min |
|
Current consumption |
≤100mA |
Working temperature |
-20℃~+70℃ |
|
The output phase |
A, B, Z, A, B, Z |
Storage temperature |
-20℃~+80℃ |
|
Response frequency |
0-100kHz |
Protection grade |
IP65 |
|
Rise/fall time |
24V ＜1us
5V driver ≤0.1 us |
Shock resistant |
50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each) |
|
Impact resistant |
980m/s^2 |
||

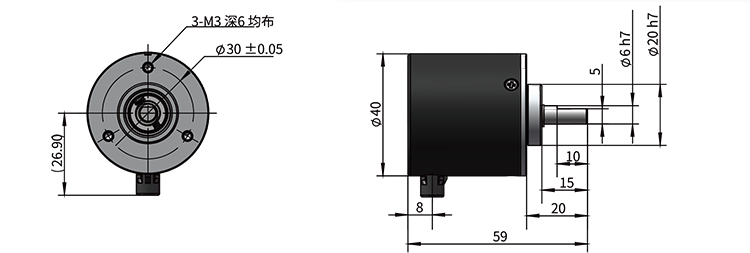

Dimension

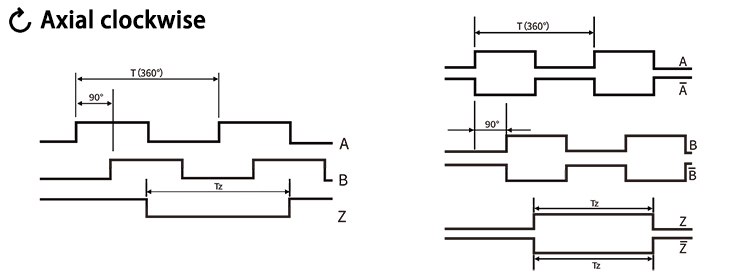

Output waveform

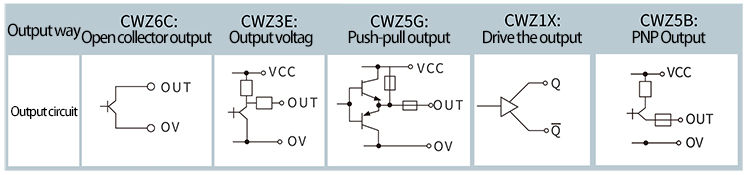

Wiring diagram
|
Signal |
VCC |
OV |
SIG A |
SIGA |
SIG B |
SIGB |
SIGZ |
SIGZ |
N.C |
|
Cable color |
Brown |
Blue |
Black |
Black/Red |
White |
White/Red |
Orange |
Orange/Red |
Bronze |

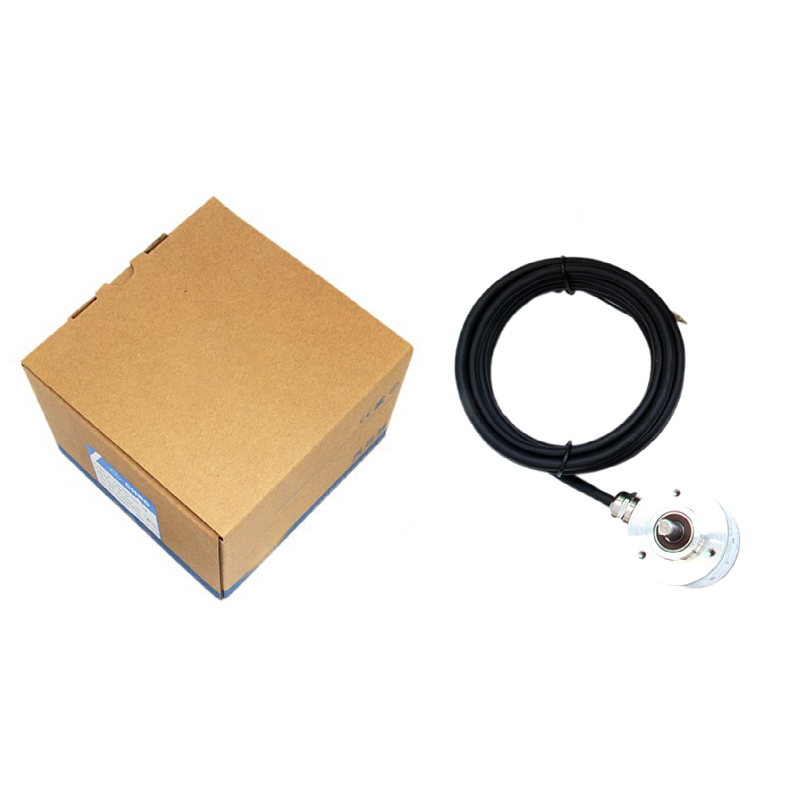

Packaging & Shipping
