Products Description

1. Expansion sleeve is a keyless connection device, its principle and use is through the action of
     high strength tensile bolt,between the inner ring and shaft, between the outer ring and the hub
     of a huge holding force, in order to achieve the keyless connection between the parts and the
     shaft. When under load, by the expansion sleeve and parts, shaft combined pressure and
     associated friction to transfer torque, axial force or both of the composite load.
2. Expansion sleeve connection mainly has the following advantages: high accuracy; Easy to
     install/adjust/disassemble; High strength,stable and reliable connection; Protects equipment
     from damage during overloading, especially for transferring heavy loads

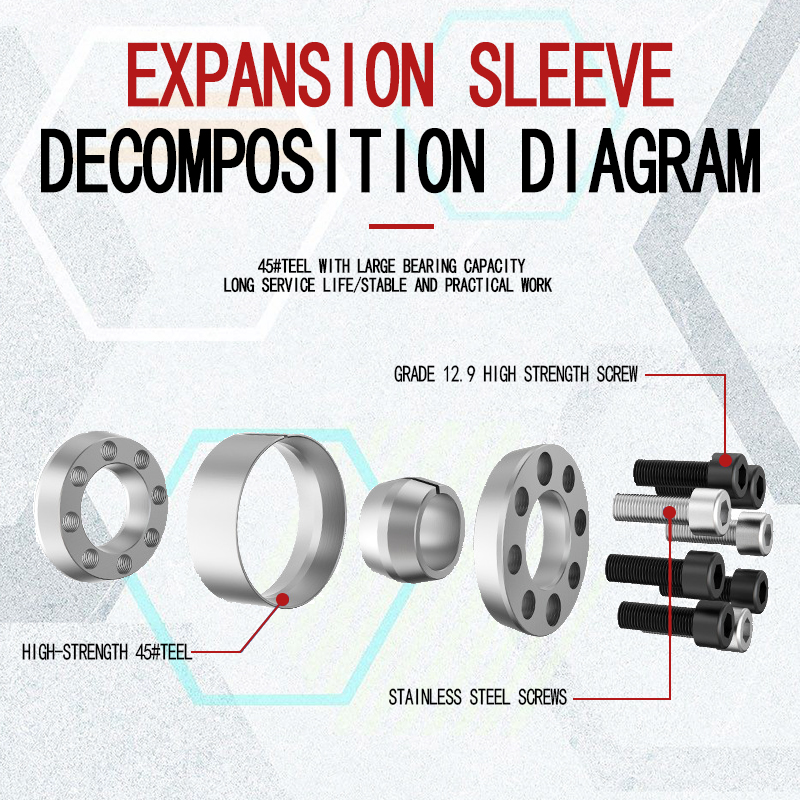

3. Z2 expansion sleeve is composed of an open double cone inner ring, an open double cone outer
     ring and two double cone compression ring.

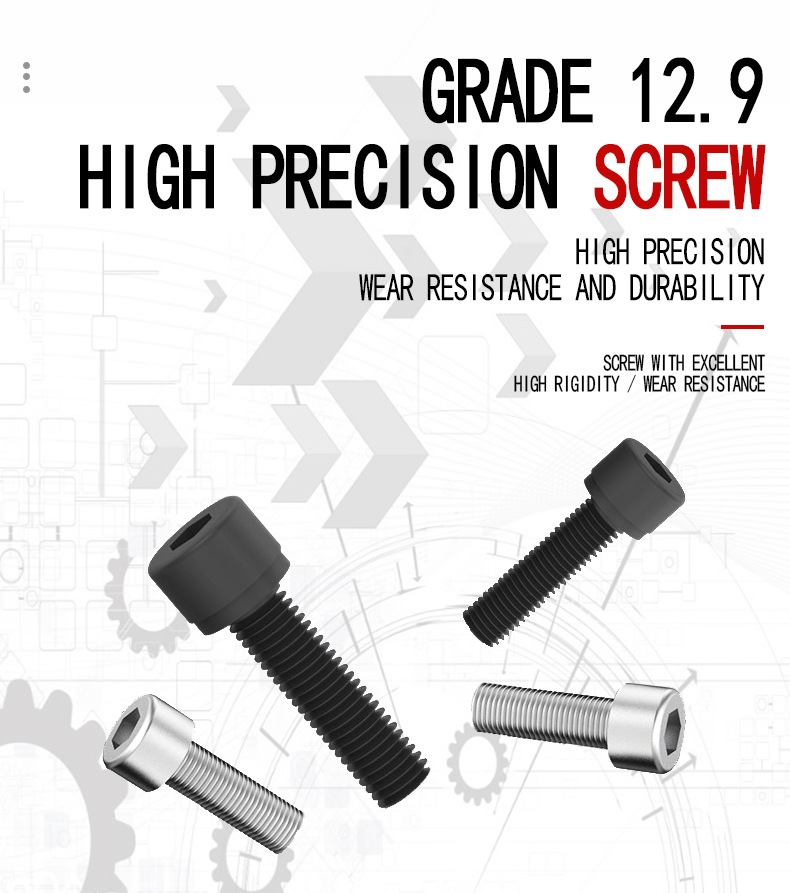

4. With hexagonal bolt lime tight, lime tight elastic ring has no axial movement relative to the hub,
     compared with Z1 type, the same compression force can produce greater radial pressure, transfer
     greater load.

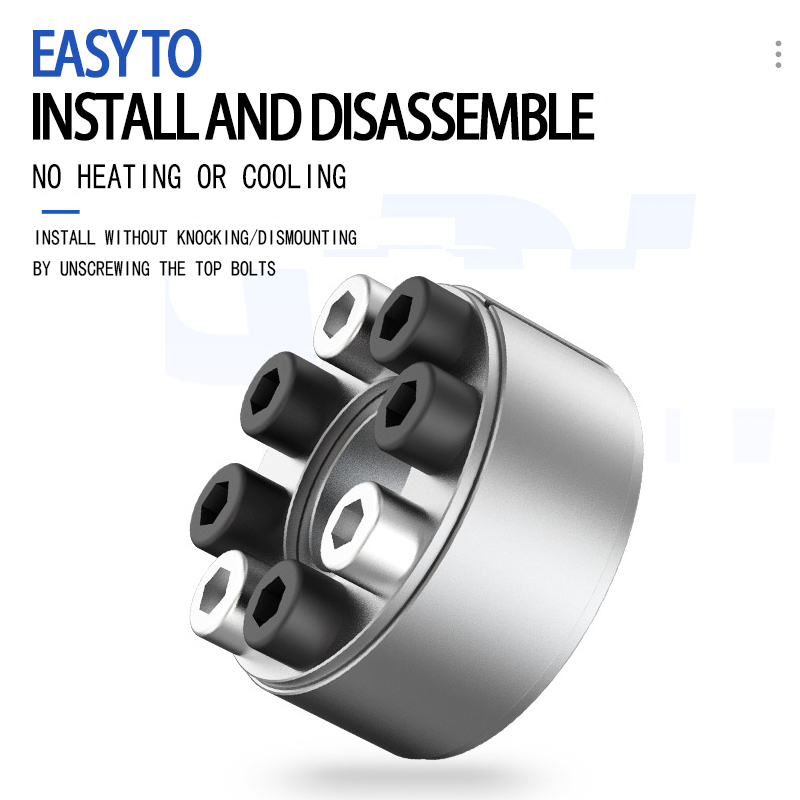

5. In order to facilitate disassembly, there is a screw hole for disassembly on a pressing ring, and
    there are 2~4 places along the circumference.
6. Widely used in packaging, printing, textile, machine tools and other machinery.

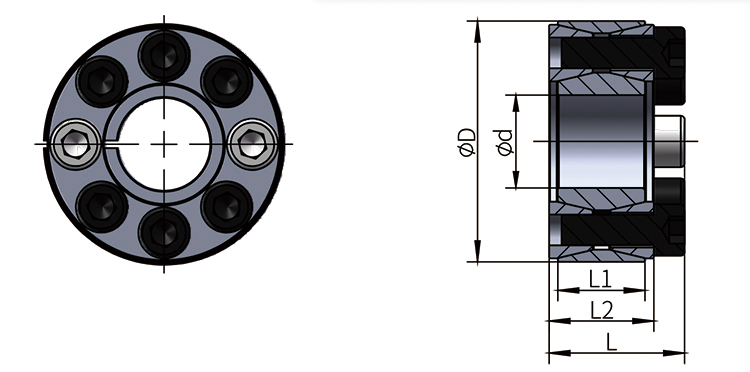

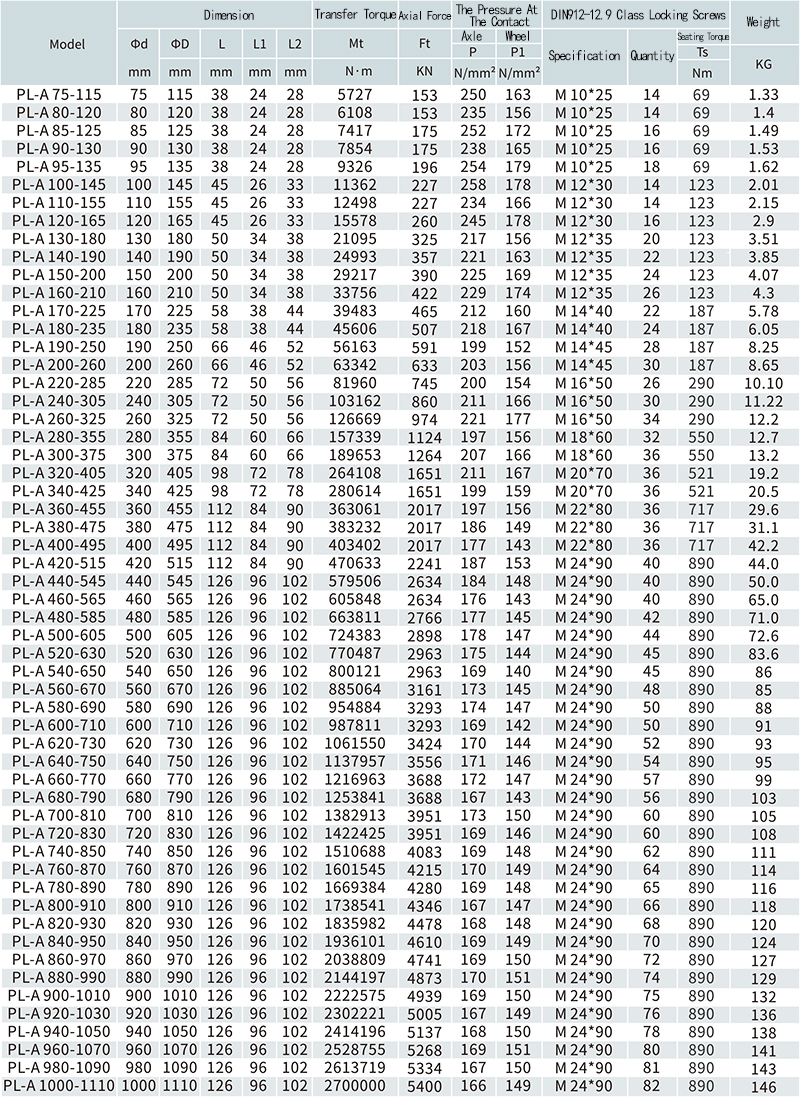

Dimension

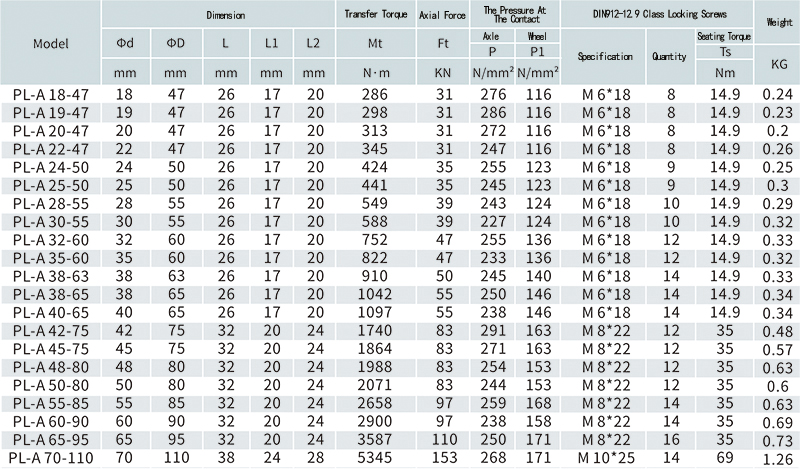

Technical parameter

Features

Packaging & Shipping
